Description:2198-DB42-F — Kinetix 5700 DC bus link module for scalable power distribution and efficient multi-axis servo drive system integration.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 2198-DB42-F |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Automation Controller | 20 Years of Industrial Automation Supply Experience

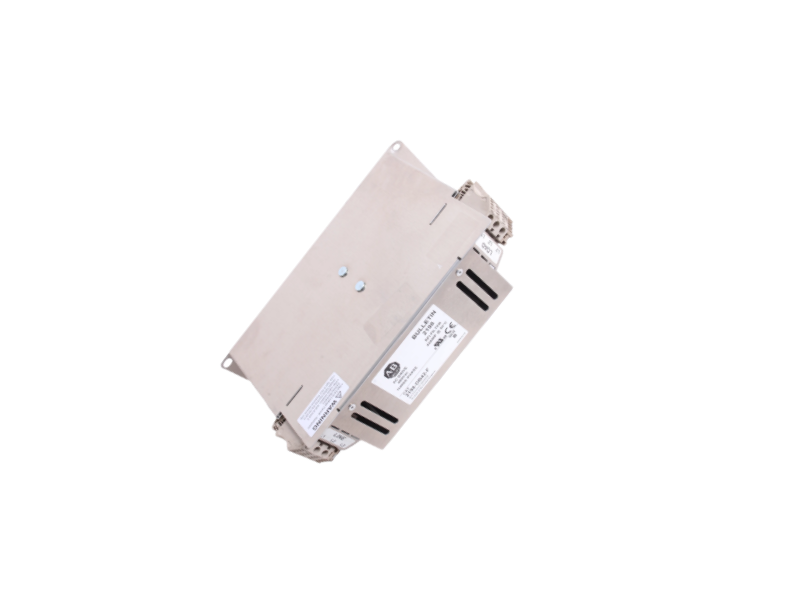

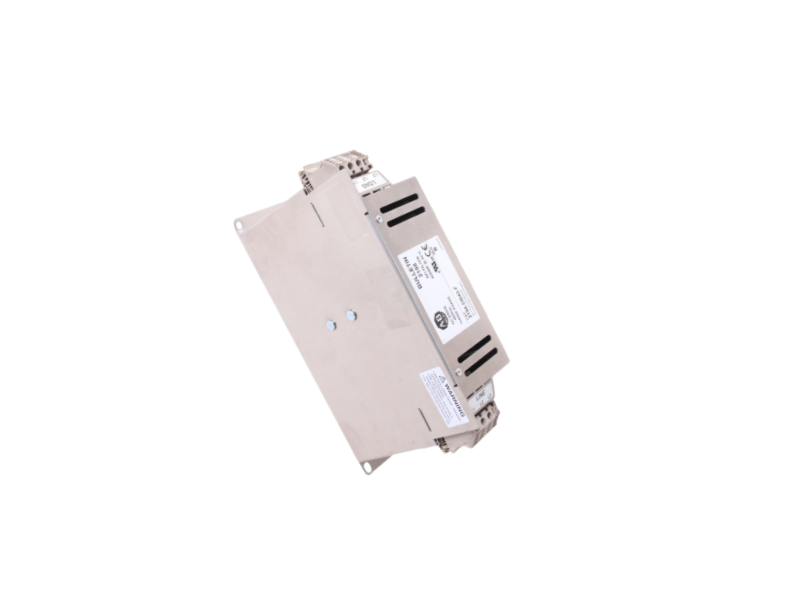

Allen-Bradley |2198-DB42-F |Bus Link Module
What it is
The Allen-Bradley 2198-DB42-F is a DC Bus Link Module in the Rockwell Automation Kinetix 5700 series, used to expand, distribute, and share DC buses at the system level in multi-axis servo drive systems.
By connecting the DC Bus power module to multiple servo drives, this module enables the system to operate under a unified DC bus architecture, thereby improving energy efficiency and simplifying the wiring and structural design of multi-axis motion control systems.
Technical Specifications
|
Parameter |
Specification |
|
Product Model: |
2198-DB42-F |
|
Product Series: |
Kinetix 5700 |
|
Product Type: |
DC Bus Link Module |
|
Function: |
DC bus expansion and connection |
|
Compatible Systems: |
Kinetix 5700 Servo Drive System |
|
Installation Method: |
Panel mount |
|
Structure: |
Modular plug-in design |
Structure and Interface
High-efficiency bus expansion capability
Supports multi-axis servo systems sharing a DC bus, improving overall energy efficiency.
Modular system design
Facilitates flexible expansion and upgrades of the Kinetix 5700 system.
Simplified system structure
Reduces independent power supply wiring, improving control cabinet space utilization.
Enhanced system stability
Optimizes power distribution paths, reducing the impact of voltage fluctuations.
Industrial-grade reliable operation
Suitable for high-load, high-dynamic-response automation applications.
Application Areas
CNC machine tool systems;
multi-axis control systems for industrial robots;
automated packaging and conveyor production lines;
automobile manufacturing production lines;
semiconductor equipment control systems;
high-speed sorting and positioning systems.
|
PLC Automation Controller-20 years of experience in sales automation |
|
|
Brand new original |
One Year Warranty |
|
Integrity supply |
best price |
|
Fast Delivery |
In Stock/A large number of stocks |
|
Top Quality |
24/7Service |
PLC Autocontroller keeps the 2198-DB42-F in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
