Products
| Manufacturer | Allen-Bradley |
| Item number | 20BD034A0AYNANC1 |
| Country of Origin | USA |
| Lead Time | 2-3 DAYS |
| After-Sales Support | One Year Warranty |
| HS Code / Commodity code | Please confirm the destination before shipping. |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Verified Rockwell catalog-number options and PowerFlex 700 electrical configuration.
Official dimensions and weight are shown only where the reviewed manufacturer material explicitly states them.
A decision map for motor data, vector feedback, braking hardware and PowerFlex platform migration.
Confirm nameplate voltage, current, frequency, speed and duty class.
Plan branch protection, disconnecting means, cables, grounding and motor leads.
Connect 24 V control I/O and encoder feedback for the configured vector option.
Enter motor data, complete controlled tuning and validate acceleration, load and stopping behavior.
Regulate induction-motor speed in conveyors, process equipment and coordinated machines.
Use feedback where improved speed regulation or process response is required.
Apply an external resistor or other engineered braking solution when the load demands dynamic braking.
Select replacement current using normal- or heavy-duty loading, not horsepower alone.
Preserve encoder supply, signal type, scaling and cable practice.
Account for the installed IGBT and the absence of an internal resistor.
Add the required communication architecture because this catalog code has no option card.
Engineering answers for catalog configuration, motor duty, lifecycle, braking, platform conversion and documentation.
Select the drive from motor current and application overload demand. Rockwell's catalog rates this unit differently for normal and heavy duty, so the mechanical load profile determines which rating applies.
No. Its catalog string specifies a brake IGBT but no internal resistor; any required resistor or regenerative solution must be engineered separately for the stopping duty.
The communication-slot code is N, meaning no factory network option. Add only a compatible communication solution supported by the drive and the control architecture.
The PowerFlex 700 family is discontinued. Rockwell provides a migration guide toward PowerFlex 750-Series drives, but replacement availability and remaining spares must be checked per order.
The new drive can differ in frame, terminals, feedback hardware, I/O, communications and parameter organization. The motor, enclosure, braking system and program must be reviewed together.
Provide the full nameplate, series and firmware, motor data, load duty, encoder details, braking components, I/O and network drawings, quantity and destination; request the PowerFlex 700 manual and migration guide.
A practical sourcing partner for quality control, communication, delivery and long-term support.
Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.
The highest quality product.
Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense. Each item undergoes rigorous testing before delivery.
Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.
Quickly deliver all products within 1-3 days after placing an order. Most goods will be delivered to you in a timely manner through DHL's fastest service.
Good packaging ensures transportation safety and greatly saves transportation costs.
Three purchasing journeys that show how clear verification and responsive service build lasting cooperation.
A Germany customer urgently needed a replacement for a discontinued automation component. After reviewing the product label, technical parameters, and application details, our engineers recommended a compatible alternative and provided photos and test videos before shipment. The alternative performed well, enhancing the customer's confidence in our technical capabilities and leading to multiple repeat orders.
An Indian customer still had doubts after initial online communication with us, so they visited our company in person for a face-to-face meeting and product inspection. This visit increased the customer's trust and led to the successful placement of their first order. Over the next few years, we completed multiple orders and established a stable, long-term partnership.
A Malaysia customer needed a specific automation component and compared products and services from several suppliers online. After nearly three weeks of careful consideration, our sincere communication, professional service, and reliable product quality won the customer's trust. After receiving the product and using it for several weeks without any problems, the customer gave us positive feedback and subsequently placed multiple orders.
Send a part number or nameplate photo and our team will help review the requested automation component.
SCHNEIDER ELECTRICALTIVAR 71 ATV71HD11M3X VARIABLE SPEED DRIVE ATV71HD11M3X Schneider Electric ATV71HD11M3X is an Altivar 71 drive for 11 kW / 15 HP three-phase motors, supplied without an EMC filter and with a graphic terminal. 11 kW15 HP3-PHASE DRIVE STAGEGraphic-terminal drive SUPPLY200–240 V FILTER3-PHASE ORDER CHECKAltivar 71 motor control Brand New OriginalOne Year WarrantyFast DeliveryInquire Now
Details
ALLEN-BRADLEY · POWERFLEX 70END OF LIFE HIGH-POWER AC DRIVE 20AC022A0AYNANC0 PowerFlex 70 AC Drive 400 VAC three-phase PowerFlex 70 drive rated 22 A with 11 kW normal-duty output, enhanced control and IP20 panel mounting. 400 VAC · 22 A11 kW NDIP20 / TYPE 1 REQUEST A QUOTEInquire NowShare the motor data, mains, cabinet constraints, quantity and destination for a focused review.ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery
Details
ALLEN-BRADLEY · POWERFLEX 750ACTIVE PRODUCT UNIVERSAL FEEDBACK MODULE 20-750-UFB-1 PowerFlex 750 Universal Feedback Module Universal encoder feedback option for PowerFlex 755 drives, supporting incremental, Stegmann, Heidenhain, SSI and BiSS interfaces. POWERFLEX 755SSI / BiSSFIRMWARE 1.015 REQUEST A QUOTEInquire NowShare the PowerFlex 755 frame, encoder protocol, wiring, quantity and destination for a focused review.ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery
Details
ALLEN-BRADLEY / POWERFLEX 700 20AC030A0AYNANC0 POWERFLEX 700 AC DRIVE 20AC030A0AYNANC0 Industrial motor control for PowerFlex 700 PowerFlex 700 drive configuration for controlled industrial motor speed. 400 VAC30 APF700 Engineering quote Inquire Now Share the motor data, braking requirement, quantity and destination for a precise quotation. ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery
Details
ABB / ACS355 ACS355-03E-23A1-4 MACHINERY DRIVE ACS355-03E-23A1-4 Compact drive for machine builders ABB machinery drive for dependable speed control and machine integration. 400 VAC7.5 kW3-PHASE Engineering quote Inquire Now Share the motor data, enclosure needs, quantity and destination for a precise quotation. ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery
Details
ALLEN-BRADLEY / POWERFLEX 753 20F11NC104JA0NNNNN POWERFLEX 753 DRIVE 20F11NC104JA0NNNNN PowerFlex 753 motor drive, air-cooled PowerFlex 753 configuration for 400 VAC three-phase motor control. 400 VAC104 APF753 Engineering quote Inquire Now Share motor data, braking option, quantity and destination. ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery
Details

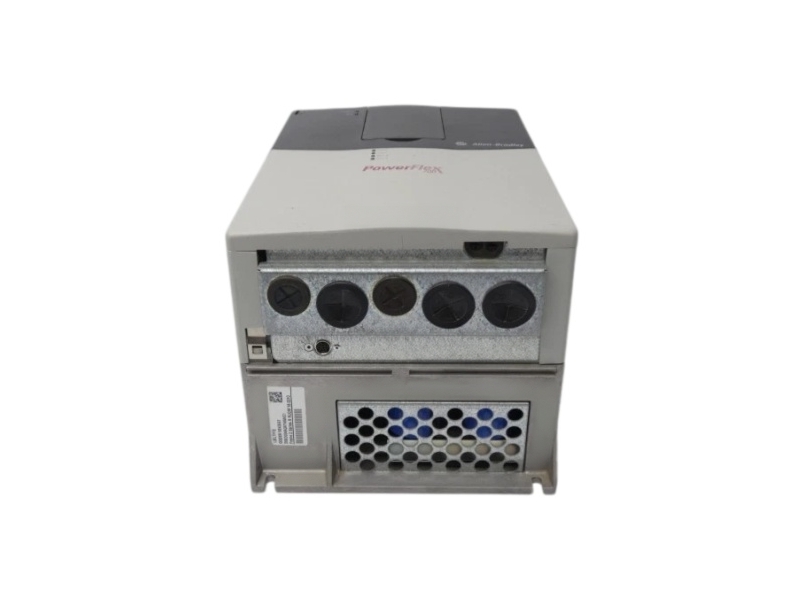

ALLEN-BRADLEY POWERFLEX 700OFFICIAL DATA 20BD034A0AYNANC1 Allen-Bradley 20BD034A0AYNANC1 is a 480 V three-phase PowerFlex 700 drive rated 34 A, with IP20 Type 1 enclosure, brake IGBT, vector 24 V I/O and encoder feedback. Brand New OriginalOne Year WarrantyFast Delivery 480 V / FRAME 2 Vector motor control with encoder feedback 34 AOUTPUT 25 hpNORMAL DUTY 20 hpHEAVY DUTY 480 VINPUT CLASS CONTROL CONFIGVector 24 V I/O + encoder feedback PRODUCT ENQUIRYInquire Nowab@mooreplc.com
