Name: Allen-Bradley 20-HIM-A6 PowerFlex Architecture Class LCD Human Interface Module
Availability: InStock

Allen-Bradley 20-HIM-A6 PowerFlex Architecture Class LCD Human Interface Module

POWERFLEX · LOCAL HIMACTIVE

20-HIM-A6

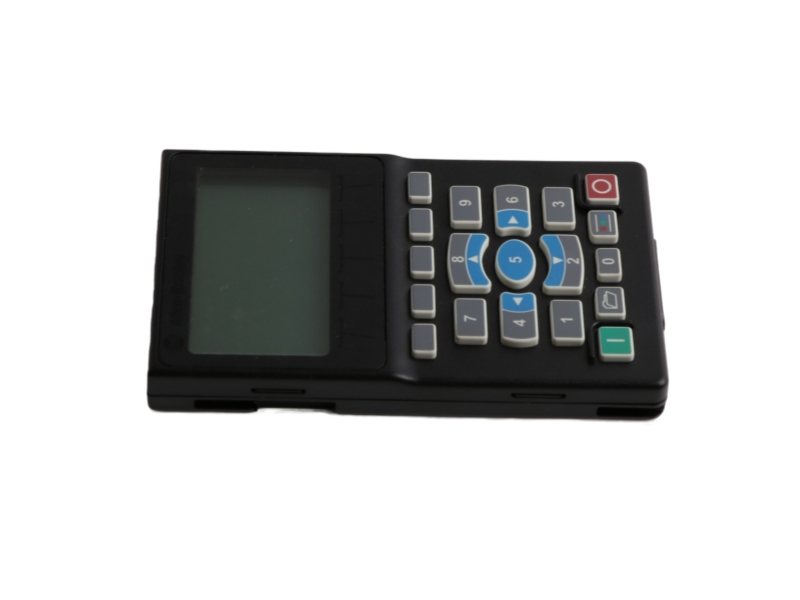

Allen-Bradley 20-HIM-A6 is an LCD keypad for local setup, monitoring and diagnostics on PowerFlex drives.

DISPLAY

LCD

KEYPAD

Full numeric

ENCLOSURE

NEMA 1

SELECTION ENVELOPE

Keep operator access, host compatibility and mounting position aligned with the installed drive.

Local HIMINTERFACE

1 yearWARRANTY

MexicoORIGIN

7 supportedLANGUAGES

ONE YEAR WARRANTY

FAST DELIVERY

WORLDWIDE SHIPPING

INQUIRE NOW

TECHNICAL LEDGER

20-HIM-A6 Technical Parameter Guide.

The official catalog identity and operator-interface attributes needed for accurate local HIM selection.

PRODUCT CATEGORY

Human interface module

INTERFACE POSITION

Local

DISPLAY TECHNOLOGY

LCD

KEYPAD STYLE

Full numeric

HOST REVIEW

Match the complete drive and operator station.

Confirm the host product, mounting location, connection hardware and required access before exchange.

Enclosure rating

NEMA 1

Catalog number

20-HIM-A6

Product family

PowerFlex Architecture Class

Lifecycle status

Active

Standard warranty

1 year

Country of origin

Mexico

UPC

820919959967

Operator function

Parameter access

Status review

Supported

Command entry

Supported

Diagnostic access

Supported

Mounting review

Host-dependent

Compatible drive classes

PowerFlex 750 / 7-Class

Default bezel connection

Drive Port 1

Hand-held connection

Port 2 via 20-HIM-H10

Hand-held cable length

1 m / 3.28 ft

INTERFACE TYPE

Local HIM

DISPLAY

LCD

INPUT

Numeric keypad

LIFECYCLE

Active

COUNTRY OF ORIGIN

Mexico

OPERATOR WORKFLOW

From local navigation to drive status and parameter control.

A practical map of the operator functions supplied by the removable interface module.

Local navigation

The display and keypad provide direct menu access at the installed PowerFlex equipment.

Parameter handling

Authorized users can review and edit compatible drive settings from the HIM interface.

Status and diagnostics

Operating information and fault details can be viewed without a separate programming workstation.

HOSTIdentify

MOUNTConfirm

ACCESSConnect

PARAMETERSReview

OPERATIONVerify

MODEL FAQ

Common buyer questions about 20-HIM-A6.

Concise answers for a more confident purchasing decision.

QUESTION01

What can an operator access from the Allen-Bradley 20-HIM-A6 LCD and numeric keypad?

The local interface supports drive parameter access, command entry, status review and diagnostic navigation on compatible PowerFlex Architecture Class equipment.

QUESTION02

When does Allen-Bradley 20-HIM-A6 require the 20-HIM-H10 cable?

The optional 1 m 20-HIM-H10 cable is used for a hand-held connection through Port 2; a bezel-mounted HIM normally connects at Drive Port 1.

QUESTION03

Which PowerFlex installation details determine whether Allen-Bradley 20-HIM-A6 will fit?

Check the exact drive family, host firmware, local bezel or remote mounting arrangement, available DPI port and any cradle or cable already installed.

QUESTION04

How should a maintenance team prepare before exchanging Allen-Bradley 20-HIM-A6?

Record the host drive, displayed parameters, access level, current HIM catalog and mounting hardware, then follow publication 20HIM-UM001 for removal and reconnection.

QUESTION05

What does Rockwell Automation's Active status mean when sourcing Allen-Bradley 20-HIM-A6?

The official product page currently marks 20-HIM-A6 as Active and lists no direct successor; availability still requires a current quotation for the required condition and quantity.

QUESTION06

Which label details should accompany an Allen-Bradley 20-HIM-A6 inquiry?

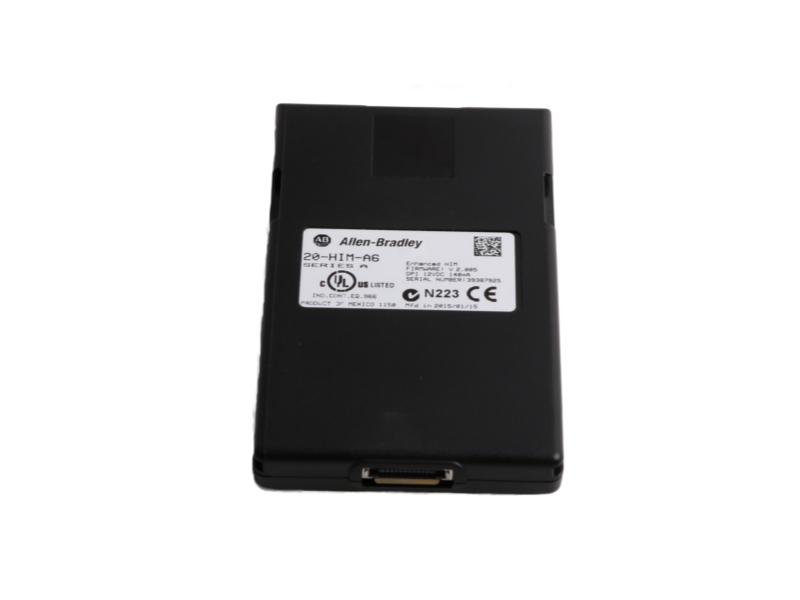

Include clear front and rear label photos, catalog number, series if shown, host-drive model, mounting location, required cable or cradle, quantity and destination.
