Description:1785-ME16 — 16K-word EEPROM storage module for PLC-5 processors providing non-volatile program backup, write-protected memory, and rapid system recovery in industrial automation applications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 1785-ME16 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 years of excellence in industrial automation parts supply

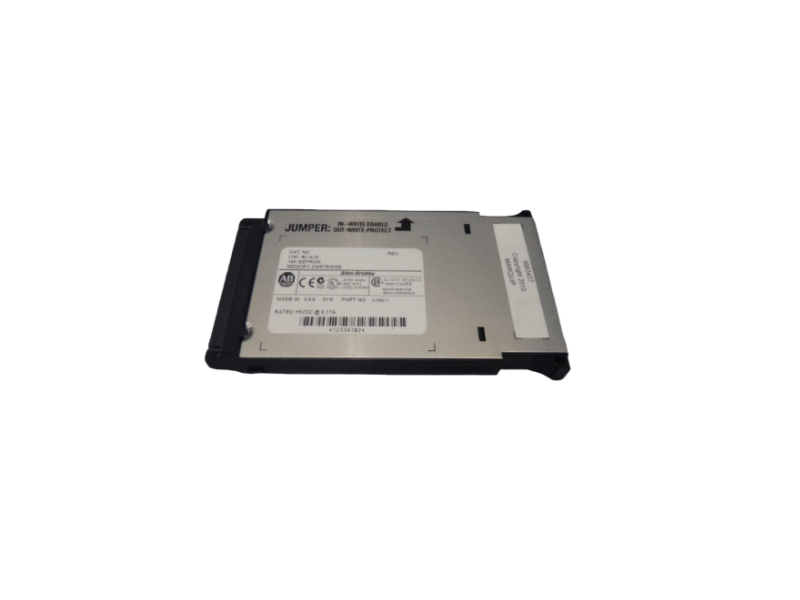

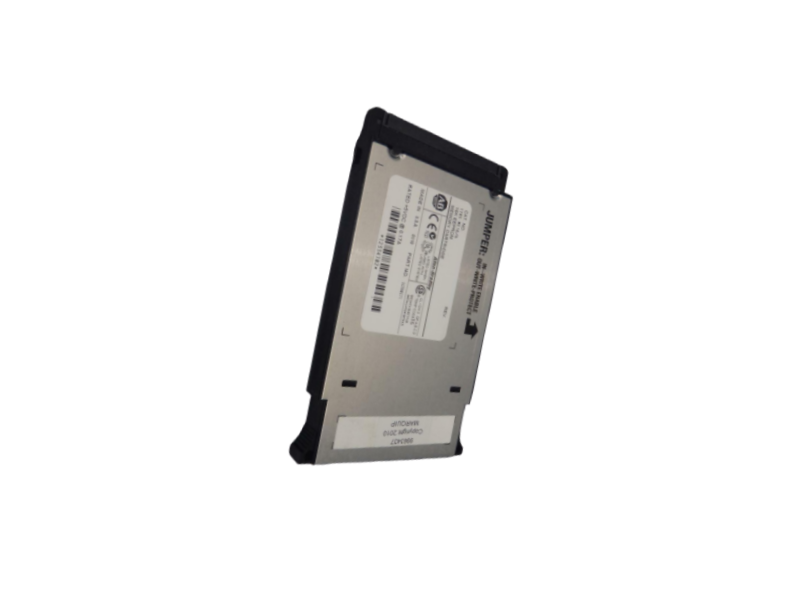

1785-ME16 |EEPROM Storage Module
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
Product Overview
The Allen-Bradley 1785-ME16 is an EEPROM (Electrically Erasable Programmable Read-Only Memory) non-volatile storage module designed specifically for PLC-5 series controllers. It is primarily used for user program backup, data storage, and system recovery. This module provides 16K words of storage capacity, enabling long-term preservation of control programs and critical configuration data even during power outages, providing a reliable data protection mechanism for industrial control systems.
The 1785-ME16 employs rewritable EEPROM technology, supporting program download, backup, and automatic recovery functions. When the PLC processor battery fails, the program is lost, or the processor is replaced, the application program can be quickly recovered from the EEPROM, significantly reducing equipment downtime.
Technical Specifications
Manufacturer: Allen-Bradley (Rockwell Automation)
Product Model: 1785-ME16
Product Series: PLC-5
Module Type: EEPROM Storage Module
Storage Capacity: 16K Words
Storage Technology: EEPROM (Non-Volatile Memory)
Main Functions: PLC program backup and recovery
Write Protection Function: Jumper-type write protection
Compatible Processors: PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/40L, PLC-5/60, PLC-5/60L, PLC-5/80 and some Ethernet PLC-5 processors
Operating Temperature: 0°C ～ 60°C
Storage Temperature: -40°C ～ 85°C
Relative Humidity: 5% ～ 95% (Non-condensing)
Weight: Approx. 85 g
Installation Method: PLC-5 processor memory slot installation
Key Advantages
Non-volatile program storage
Utilizing EEPROM technology, user programs are securely stored long-term even during system power outages or battery depletion, effectively preventing program loss.
Fast system recovery
When the PLC is replaced, malfunctions are repaired, or memory data is lost, the program can be directly reloaded from the EEPROM, shortening equipment recovery time and improving production efficiency.
Rewritable and erasable
Compared to traditional ROM memory, the 1785-ME16 supports multiple erasures and reprogramming, facilitating program upgrades, process optimization, and equipment modification.
Write protection mechanism
Built-in hardware jumper write protection prevents accidental modification or overwriting of the program, improving system operational security.
Enhanced equipment reliability
As a crucial backup component of the PLC-5 system, it effectively reduces the risk of control program loss due to battery failure, power outages, or maintenance operations.
