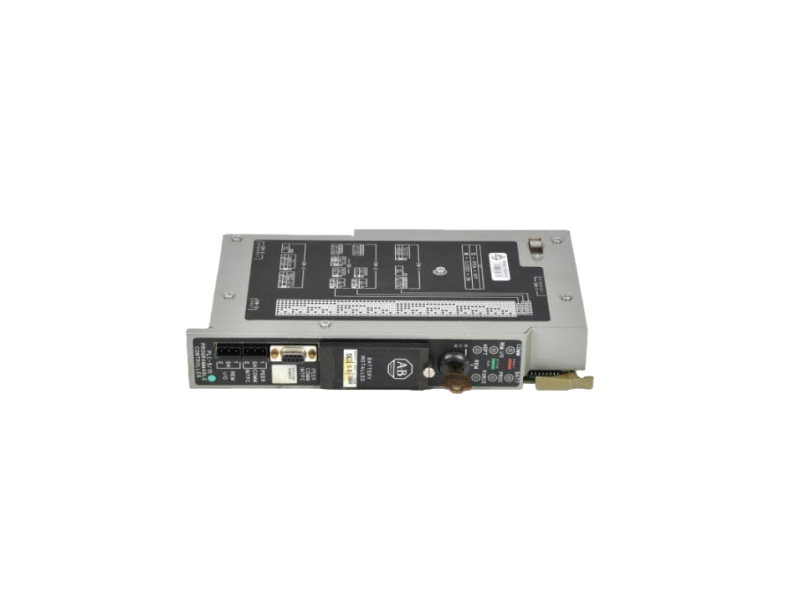

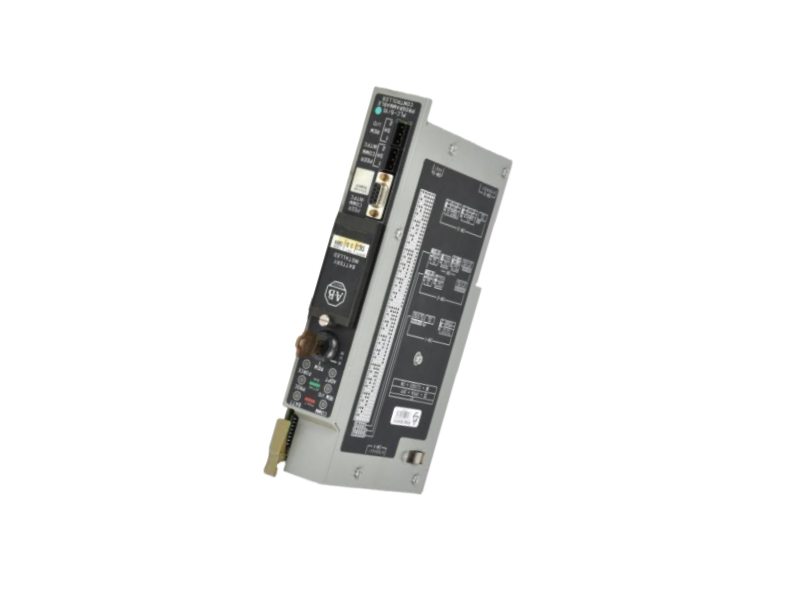

Allen Bradley 1785-LT/B processor module

PLC Autocontroller |20 years of experience specializing in automation equipment

1785-LT/B |processor module

PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs

Product Overview

The Allen-Bradley 1785-LT/B is a PLC-5/15 processor module (Series B) in the PLC-5 Classic series, used in small to medium-sized industrial automation control systems. This controller features a rack-mount architecture, can run logic control programs, and enables device communication and distributed control via DH+ and Remote I/O networks.

This model belongs to the mature PLC-5 architecture and features high stability, strong anti-interference capabilities, and simple maintenance. It is widely used in manufacturing and process control systems.

Technical parameters

Product Model: 1785-LT/B

Product Series: Allen-Bradley PLC-5 Classic

Control Type: PLC-5/15 Processor

User Memory: 6K Words SRAM (expandable to approximately 14K Words)

Analog I/O: Maximum 512 points

DH+ Communication: 1 channel

Remote I/O: 1 channel

I/O Architecture: Supports 2-slot / 1-slot / ½-slot addressing

Local Rack: Up to 4 units

Remote Rack: Up to approximately 12 units per link (system configuration dependent)

Storage Expansion: Supports 1785-ME series EEPROM / RAM modules

Key Features:

Mature and Stable PLC-5 Architecture

Based on the Rockwell PLC-5 Classic platform, it has undergone long-term industrial validation and is suitable for continuous operation control of critical production systems.

Powerful I/O Expansion Capabilities

Supports up to 512 I/O points, allowing flexible configuration of discrete and analog systems to meet medium-scale automation needs.

DH+ + Remote I/O Dual Communication Architecture

Built-in DH+ and Remote I/O interfaces enable high-speed data interaction between the control layer and the device layer, suitable for distributed control systems.

Flexible System Expansion

Supports multi-rack expansion and various I/O addressing methods, adapting to different industrial equipment architectures.

Easy Maintenance and Backup Mechanism

Can be used with EEPROM storage modules to achieve program backup and rapid recovery, reducing downtime.
