Description:1785-L80B — PLC-5/80B high-performance processor module with 100K-word memory, multi-channel DH+ and Remote I/O communication, designed for large-scale industrial automation and complex control systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 1785-L80B |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
1785-L80B | high-performance processor module
PLC Autocontroller| Sales Manager May
Product Overview

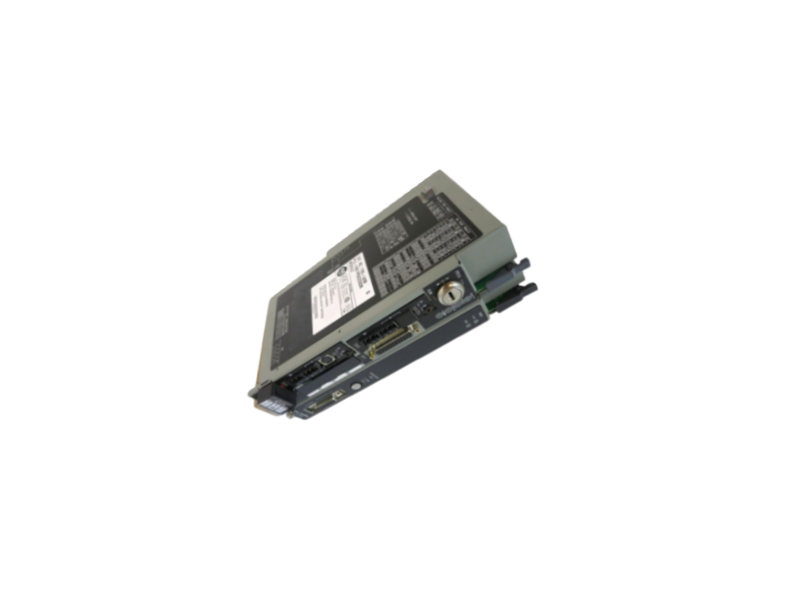

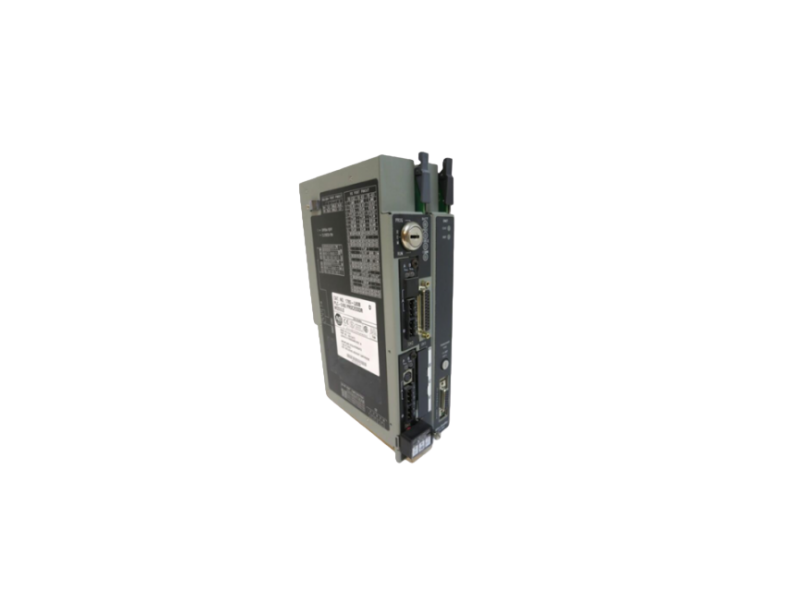

The Allen-Bradley 1785-L80B is a high-performance processor module (Enhanced Series B) in the PLC-5/80B series of PLC-5 systems, used for core logic processing and network communication in large-scale industrial automation control systems. This controller supports DH+, Remote I/O, and multi-channel industrial communication architecture, enabling large-scale distributed control and high-speed data exchange.
Key parameters and specifications
Product Model: 1785-L80B
Product Series: Allen-Bradley PLC-5 Enhanced
Control Type: PLC-5/80B Processor
User Memory: 100K Words SRAM (Battery Protected)
Maximum I/O Points: 3072 Inputs / 3072 Outputs (or Mixed)
Maximum Rack Count: Up to approximately 93 racks (local + remote)
DH+ Communication: Supported (Multi-channel configuration)
Remote I/O Support: Supported (Multi-channel scan/adapter mode)
Serial Communication: RS-232 / RS-422 / RS-423
Communication Channels: 4 × DH+/RIO channels (CH1A/1B/2A/2B)
Programming Interface: RS-232 (Channel 0)
I/O Addressing: 1-slot / 2-slot / half-slot
Installation Method: Left slot of 1771 PLC-5 rack
Product Features:
High-Performance PLC-5 Architecture
Utilizing the mature Enhanced PLC-5 platform, it boasts stable scanning performance and industrial-grade reliability, suitable for continuous production control systems.
Large-Capacity Memory Support
Provides 100K Words of program storage capacity, supporting complex logic, batch data processing, and large-scale process control.
Multi-Channel Industrial Communication
Built-in 4-channel DH+/Remote I/O architecture, enabling multi-network parallel communication and device-level distributed control.
Large-Scale I/O Expansion Capability
Supports up to 3072 I/O points and multi-rack systems, suitable for large-scale factory automation systems.
Long-Term Stability in Industrial Fields
Proven reliable operation for many years in high-load environments such as metallurgy, power, and petrochemical industries.
