Description:1784-PM16SE — SoftLogix SERCOS motion control interface card supporting up to 16-axis high-speed fiber-optic servo control for precision multi-axis industrial automation systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 1784-PM16SE |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
1784-PM16SE | control interface card
PLC Autocontroller| Sales Manager May
Product Overview

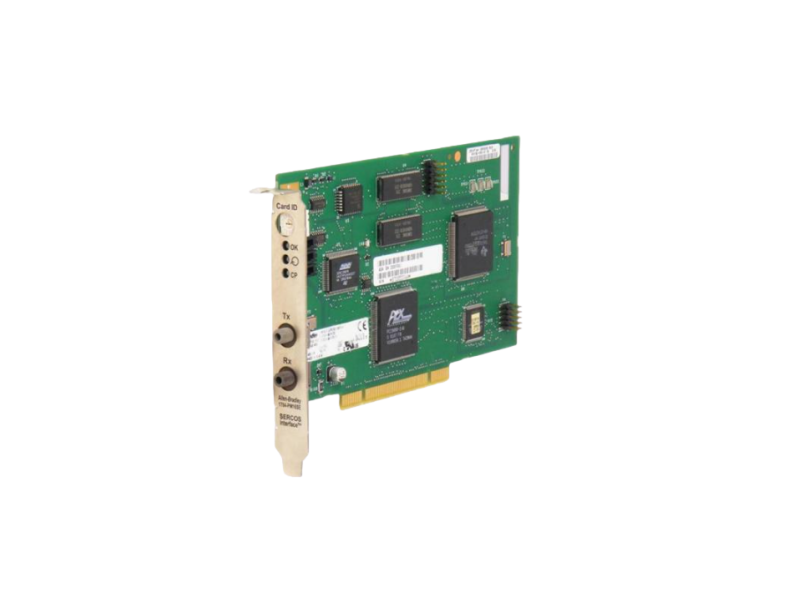

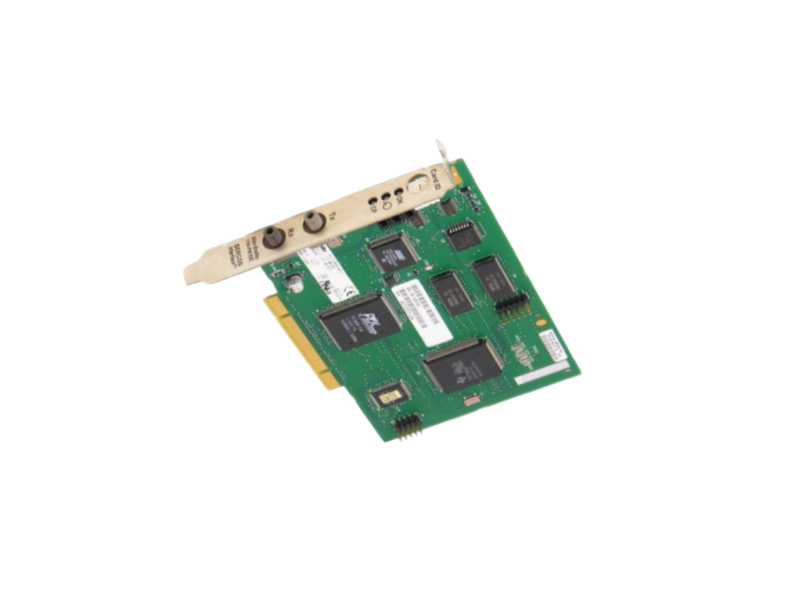

The 1784-PM16SE is a PCI motion control interface card (SERCOS Interface Module) in the Allen-Bradley (Rockwell Automation) SoftLogix series, used to implement up to 16-axis servo motion control in SoftLogix virtual PLC systems.
This module connects to servo drives via the SERCOS fiber optic real-time communication protocol, enabling high-precision position and speed control, and is widely used in high-performance motion control systems and automation equipment.
Key parameters and specifications
Product Model: 1784-PM16SE
Product Type: SoftLogix PCI Motion Control Card
Number of Controlled Axes: Up to 16 axes
Communication Protocol: SERCOS (IEC 1491 Real-time Serial Communication)
Communication Medium: Fiber Optic
Update Cycle: 0.5 ms / 1 ms / 2 ms (Configurable)
Data Rate: 4 Mbps / 8 Mbps
Control Mode: Position / Speed Control
Supported Functions: High-speed motion tasks, contour generation, interpolation control
Installation Method: PC PCI slot (32-bit)
Control Platform: SoftLogix 5800
Supporting Software: RSLogix 5000
Operating System: Windows NT / 2000 / XP
Maximum Number of Axes: Up to 16 axes per controller (SERCOS control)
Product Features:
High-performance multi-axis motion control
Supports synchronous control of up to 16 axes, suitable for complex automation and high-precision motion systems.
SERCOS fiber optic real-time communication
Utilizes industrial-grade fiber optic communication, offering strong anti-interference capabilities and high real-time performance, suitable for high-speed motion control.
High-precision closed-loop control
Supports position and speed closed-loop control, enabling precise servo drive and trajectory control.
SoftLogix software integration
Deeply integrated with RSLogix 5000, supporting graphical configuration, debugging, and motion control programming.
Flexible system expansion
Can connect to various servo drives, suitable for complex multi-axis equipment systems.
