Description:1784-PKTX — PCI communication interface card providing DH+, Remote I/O, and DH-485 connectivity for PLC-5 and SLC systems used in programming, monitoring, and industrial diagnostics.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 1784-PKTX |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 years of excellence in industrial automation parts supply
1784-PKTX| communication interface card
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
Product Identification

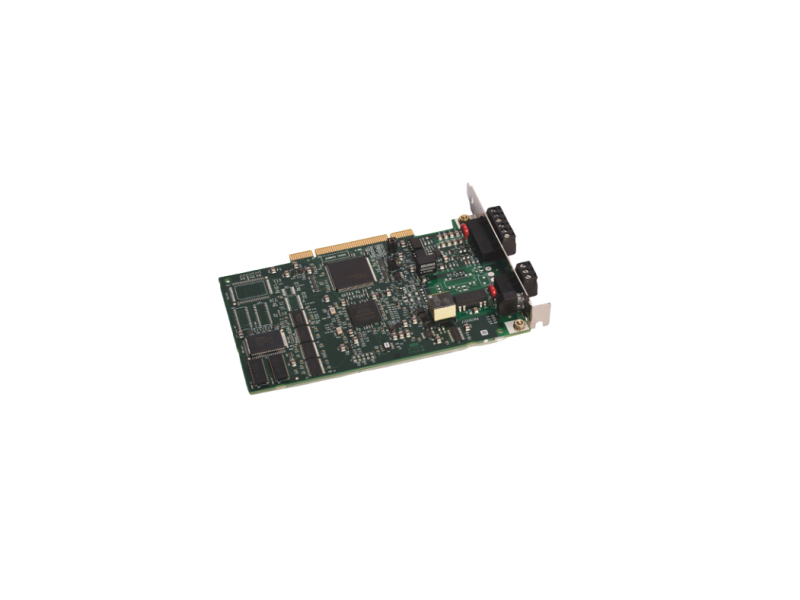

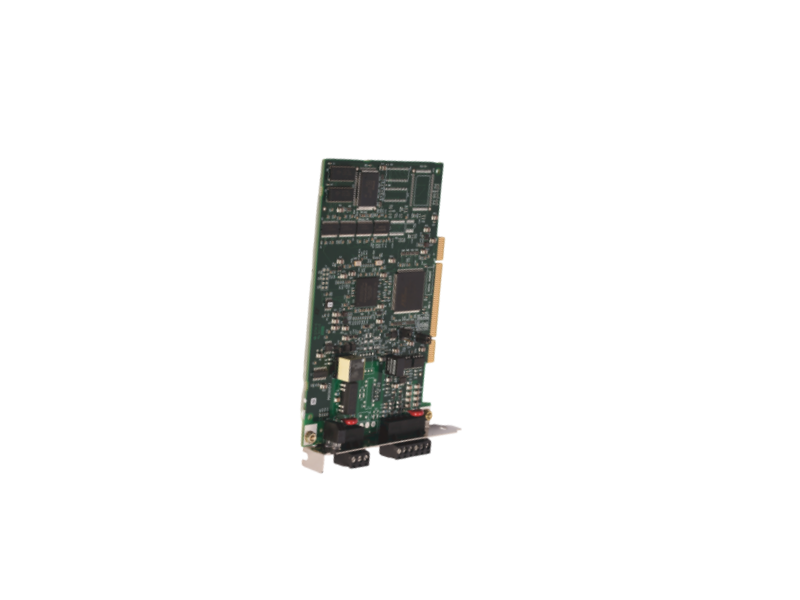

The 1784-PKTX is a PCI communication interface card from Allen-Bradley (Rockwell Automation) used to connect computers (PCs) to industrial networks (primarily DH+ Data Highway Plus, Remote I/O, and DH-485). It is commonly used for programming, monitoring, and data acquisition in traditional control systems such as PLC-5 and SLC 500.
This card is a classic DH+ PC interface device, widely used for the maintenance and debugging of older PLC systems, but it is now discontinued and mainly used for the maintenance of existing systems.
Product Model: 1784-PKTX
Product Type: PCI Communication Interface Card
Communication Protocol: DH+ / Remote I/O / DH-485
Communication Channel: Single Channel (DH+ / RIO / DH-485 Multiplexed)
Bus Interface: PCI (32-bit)
Power Supply: Powered via PCI slot
Network Interface: 3-pin (DH+/RIO), 6-pin (DH-485)
Control Functions: PLC-5 / SLC Programming and Monitoring
Supported Devices: PLC-5, SLC 5/04, etc.
LED Indicators: Communication Status / Diagnostic Indicators
Maximum Card Count: Approximately 4 cards supported by the system
Operating Temperature: 0°C ~ 60°C
Features (General Summary):
Direct PC Connection to DH+ Network
Allows industrial PCs to directly connect to PLC-5/SLC systems for programming, debugging, and monitoring.
Multi-Protocol Compatibility
Supports DH+, Remote I/O, and DH-485, as well as various traditional Allen-Bradley networks.
Industrial-Grade Communication Stability
Suitable for long-distance, interference-resistant industrial field communication environments.
Classic PLC-5 Maintenance Tool
An important engineering interface device for maintaining older PLC-5/SLC systems.
RSLinx Support
System configuration and data access can be performed via the RSLinx driver.
Application Areas
Industrial Automation Maintenance: Used for program downloading, diagnostics, and monitoring of PLC-5 and SLC 500 systems.
Petrochemical Industry: Used for data acquisition and equipment maintenance of legacy control systems.
Power and Energy Systems: Used for retrofitting legacy systems and connecting monitoring interfaces.
Water Treatment Systems: Used for communication maintenance of PLC-5 control stations.
Metallurgy and Mining: Used for industrial equipment status monitoring and supporting upgrades to legacy systems.
Industrial System Integration: Acts as a bridging interface between DH+ networks and PCs.
