Product Identification

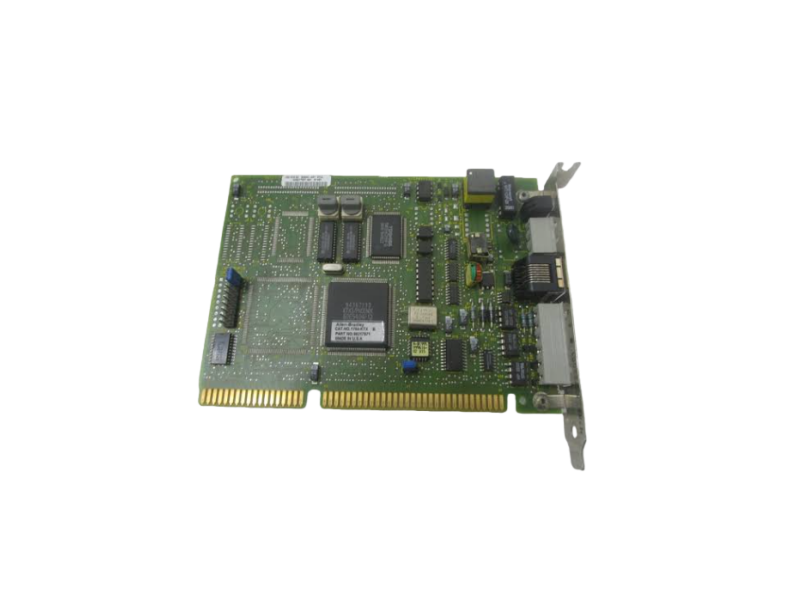

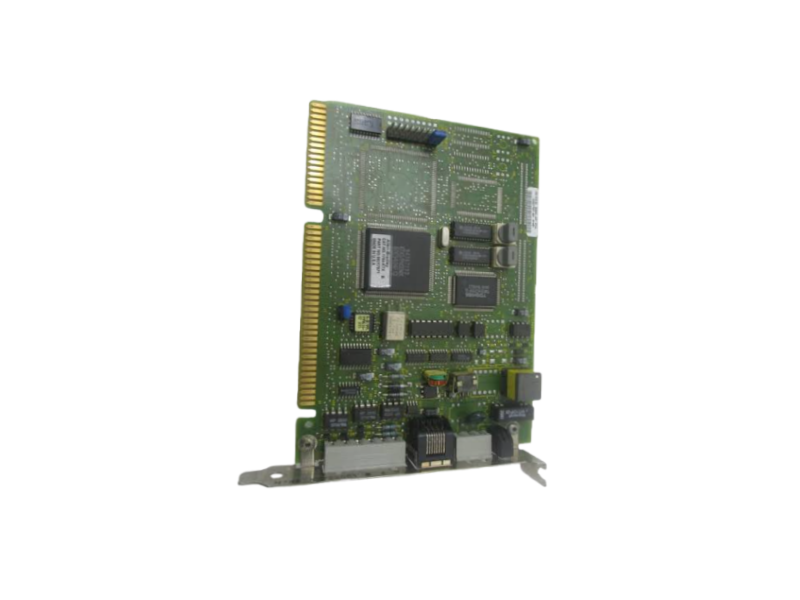

The Allen-Bradley 1784-KTX is an industrial communication interface card (CIC) from Rockwell Automation, primarily used for communication between computers and Allen-Bradley PLC control systems. As a classic DH+ (Data Highway Plus) and DH-485 network interface card, the 1784-KTX is widely used in programming, monitoring, and data exchange for PLC-2, PLC-3, PLC-5, and SLC 500 series control systems. This module uses a half-length ISA bus design and can be installed in a 16-bit ISA or EISA expansion slot, enabling reliable communication between industrial computers and field control networks.

With its stable network performance and proven industrial application experience, the 1784-KTX remains widely used in the maintenance of legacy automation systems, PLC program debugging, equipment upgrades, and industrial network data acquisition projects.

Product Model: 1784-KTX

Manufacturer: Allen-Bradley / Rockwell Automation

Product Type: Communication Interface Card

Product Series: 1784 Communication Products

Bus Interface: 16-bit ISA / EISA

Network Protocol: DH+, DH-485

Communication Channel: 1 Channel

PLC Connection Support: PLC-2, PLC-3, PLC-5, SLC 500

Remote I/O Scan: Supported

Data Transmission Method: Dual-Port Memory

Operating Temperature: 0°C ~ 60°C

Storage Temperature: -40°C ~ 85°C

Features (General Summary):

High-Efficiency Industrial Network Communication

The 1784-KTX supports Data Highway Plus (DH+) and DH-485 industrial network protocols, enabling stable communication between industrial computers and Allen-Bradley controllers, providing a reliable connection for equipment commissioning and system maintenance.

Broad Compatibility with Classic PLC Systems

This interface card is compatible with PLC-2, PLC-3, PLC-5, and SLC 500 series controllers, making it particularly suitable for maintenance and upgrades of existing legacy control systems.

Supports Remote I/O Scanning

In addition to communication functions, the 1784-KTX can also be used as a remote I/O scanner to acquire data from field devices and transmit control signals, improving system integration efficiency.

Industrial-Grade Stability

Utilizing mature industrial electronic design, it maintains stable performance under continuous operating conditions, meeting the long-term operational needs of factory automation and process control systems.

Easy System Maintenance

Through software platforms such as RSLinx and RSLogix, engineers can quickly perform PLC program upload/download, fault diagnosis, online monitoring, and network maintenance.

Application Areas

Manufacturing Automation

PLC Programming and Debugging

Automated Production Line Monitoring

Industrial Data Acquisition Systems

Power and Energy Industry

Power Plant Control System Maintenance

Power Monitoring System Communication

Remote Equipment Data Exchange

Oil and Chemical Industry

DCS and PLC System Integration

Process Control Network Maintenance

Production Equipment Communication Management

Water Treatment and Environmental Protection Engineering

Pump Station Control System Communication

SCADA System Connection

Remote Monitoring Platform Construction

Legacy System Upgrade and Retrofit

PLC-5 System Maintenance

SLC 500 Equipment Upgrade

DH+ Network Expansion and Management
