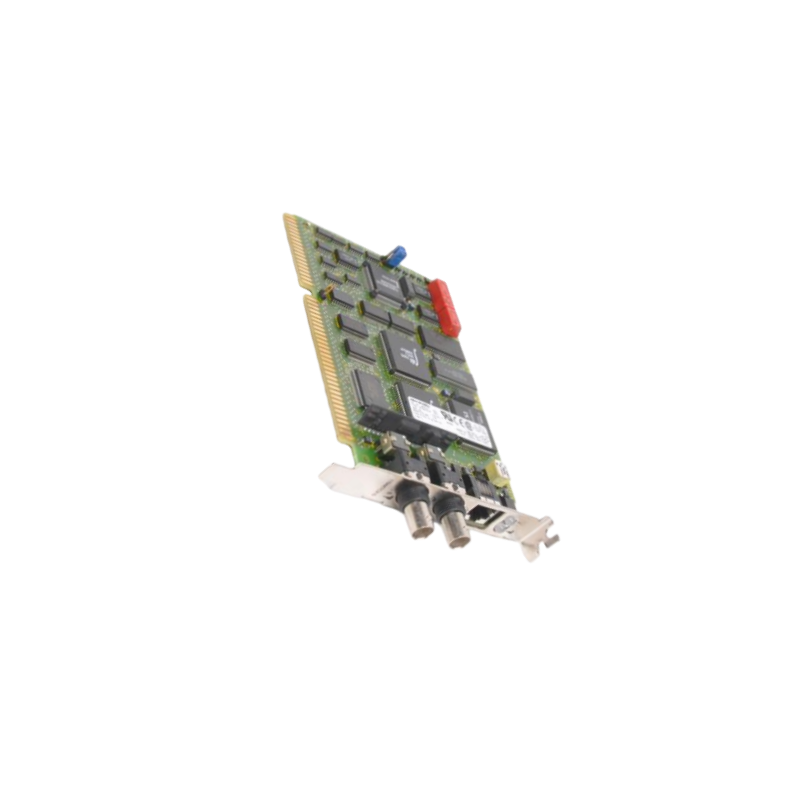

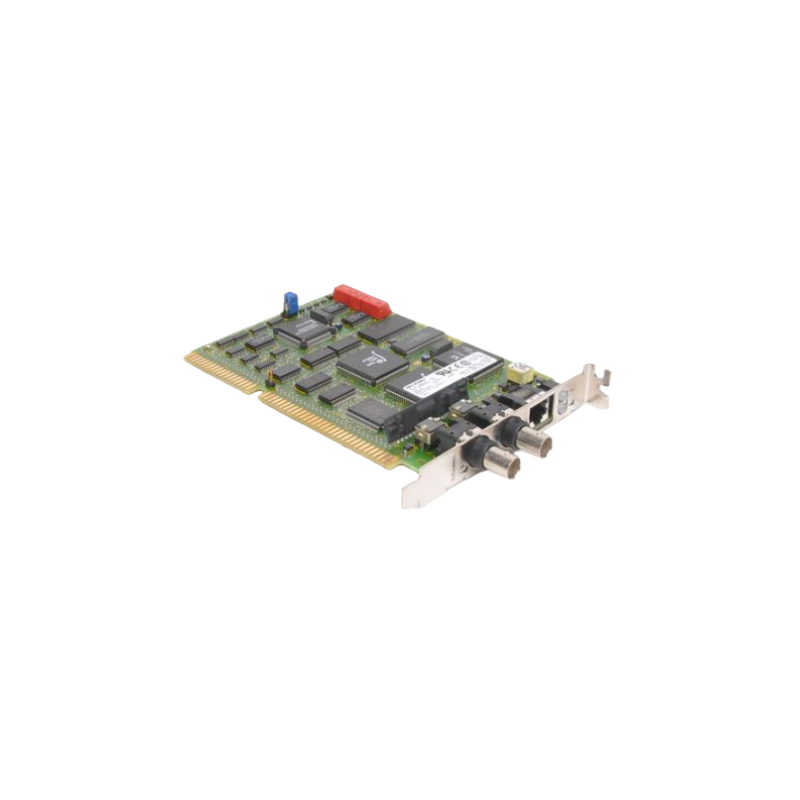

Allen Bradley 1784-KTCX15 Communication Interface Card

PLC Autocontroller |20 years of experience specializing in automation equipment

1784-KTCX15 | Communication Interface Card

PLC Autocontroller| Sales Manager May

Product Overview

The Allen-Bradley 1784-KTCX15 is a classic ControlNet interface card from Rockwell Automation, used to enable high-speed data communication between industrial computers and ControlNet networks. This module supports 16-bit ISA and 32-bit EISA-compatible computers and can directly connect to ControlNet control networks, providing a stable and reliable data exchange channel for PLCs, HMIs, engineering workstations, and industrial control equipment.

As an important member of the 1784-KTCX series, the 1784-KTCX15 not only supports ControlNet network communication but also supports redundant media configuration, meeting the network reliability and real-time requirements of critical industrial applications. With its deterministic data transmission mechanism and mature industrial application experience, this module is widely used in PLC-5, ControlNet, and various automation control system maintenance and upgrade projects.

Key parameters and specifications

Product Model: 1784-KTCX15

Manufacturer: Allen-Bradley / Rockwell Automation

Product Type: ControlNet Communication Interface Card

Product Series: 1784 Communication Products

Network Type: ControlNet

Bus Compatibility: 16-bit ISA / 32-bit EISA

Communication Method: Deterministic Network Communication

Network Interface: Dual BNC Connectors

Network Access Port: RJ45 NAP

Redundant Media Support: Yes

Product Features:

High-Speed Deterministic Communication

The 1784-KTCX15 utilizes ControlNet industrial networking technology, enabling simultaneous transmission of both time-critical and non-time-critical data, ensuring real-time and stable transmission of control commands and production data.

Redundant Network Architecture Support

The module is equipped with dual BNC interfaces, supporting ControlNet redundant media configuration. When the primary communication link fails, the system can quickly switch to a backup link, improving system availability and operational continuity.

Wide Compatibility with Industrial Systems

Supports PLCs, industrial computers, operator workstations, drives, and HMI devices to access the ControlNet network, enabling unified data exchange and control management.

Easy System Maintenance and Diagnostics

The RJ45 Network Access Port (NAP) can be used for network debugging, diagnostics, and equipment maintenance, significantly improving the efficiency of engineers' field services.

Industrial-Grade Reliability Design

Possesses excellent vibration resistance, shock resistance, and environmental adaptability, meeting the long-term continuous operation requirements of manufacturing, energy, and process industries.

Order & ship

u Xiamen stock, 1 Year Warranty

u 100% Original Package

u UPS/ DHL/ FEDEX / TNT
