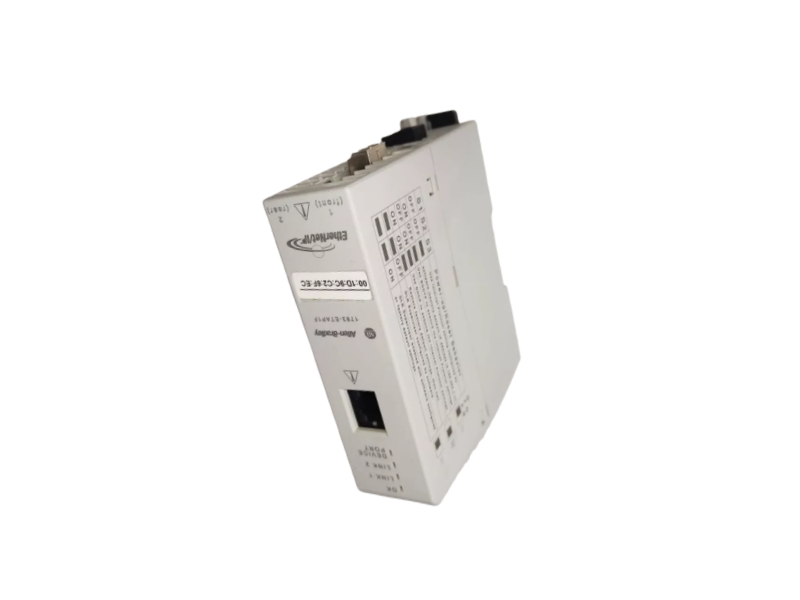

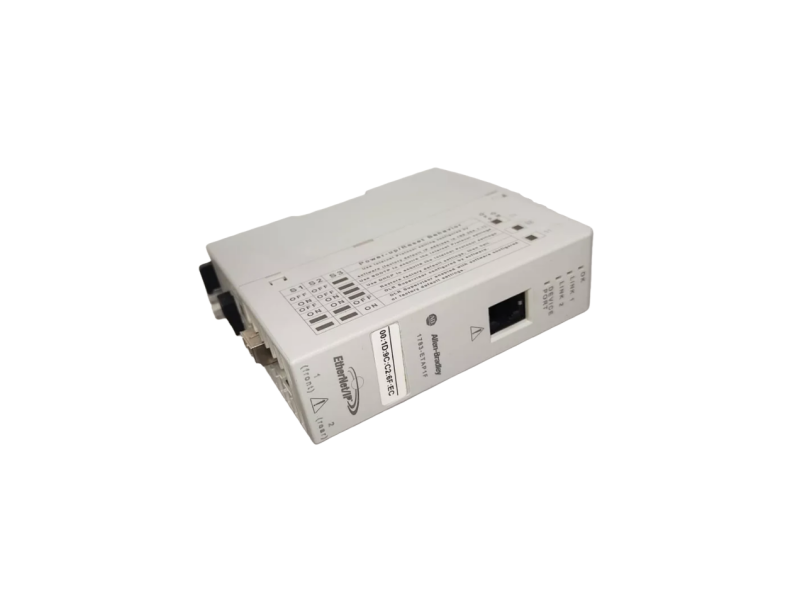

1783-ETAP1F| EtherNet/IP Tap Module

PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs

Product Overview

The Allen-Bradley 1783-ETAP1F, an EtherNet/IP Tap Module from Rockwell Automation, is a crucial component of the Device Level Ring (DLR) network architecture. This module primarily connects terminal devices that do not support DLR functionality to an EtherNet/IP ring network, achieving network redundancy and improved communication reliability.

Equipped with two fiber optic ports and one RJ45 copper port, the 1783-ETAP1F can act as a ring network node connecting switches, PLCs, HMIs, frequency converters, and remote I/O devices. When a network link fails, DLR technology can quickly restore the communication path, minimizing downtime and improving the availability and stability of industrial automation systems.

With its compact design, flexible fiber optic connections, and excellent network redundancy, the 1783-ETAP1F is widely used in manufacturing, power, oil and gas, water treatment, and process control industries.

Technical Specifications

Product Model: 1783-ETAP1F

Manufacturer: Allen-Bradley / Rockwell Automation

Product Family: EtherNet/IP Infrastructure

Product Type: EtherNet/IP Tap Module

Network Protocol: EtherNet/IP

Network Architecture: Device Level Ring (DLR)

Copper Port: 1 × RJ45 10/100 Mbps

Fiber Port: 2 × 100Base-FX Fiber Ports

Fiber Connector: ST Fiber Connector

Fiber Type: Multimode Fiber

Transmission Distance: Approximately 2 km (depending on fiber type)

Data Transmission Rate: 100 Mbps

Key Advantages

Supports Device Level Ring (DLR) Network Redundancy

The 1783-ETAP1F allows ordinary EtherNet/IP devices to be connected to a DLR ring network, achieving network link redundancy. When a communication link is interrupted, the system can quickly restore the data transmission path, improving the continuous operation capability of the production system.

Fiber Optic Network Transmission Capability

The module adopts a dual 100Base-FX fiber optic interface design, effectively resisting electromagnetic interference, and is particularly suitable for long-distance communication and high-noise industrial environments.

Improved System Availability

By constructing a highly reliable ring network structure, the risk of single-point failures can be significantly reduced, minimizing losses caused by production downtime.

Flexible Device Integration

Supports the access of PLCs, HMIs, frequency converters, remote I/O, industrial computers, and third-party EtherNet/IP devices, providing convenience for industrial network expansion.

Industrial-Grade Reliability Design

Adopting a robust and durable industrial-grade structural design, it can operate stably for a long time in complex environments such as high temperature, vibration, and electromagnetic interference.

Simplified Network Deployment

It can be quickly integrated into existing EtherNet/IP networks without complex configuration, helping users shorten the project implementation cycle.
