Allen-Bradley 1747-L532 SLC 5/03 16K controller front view

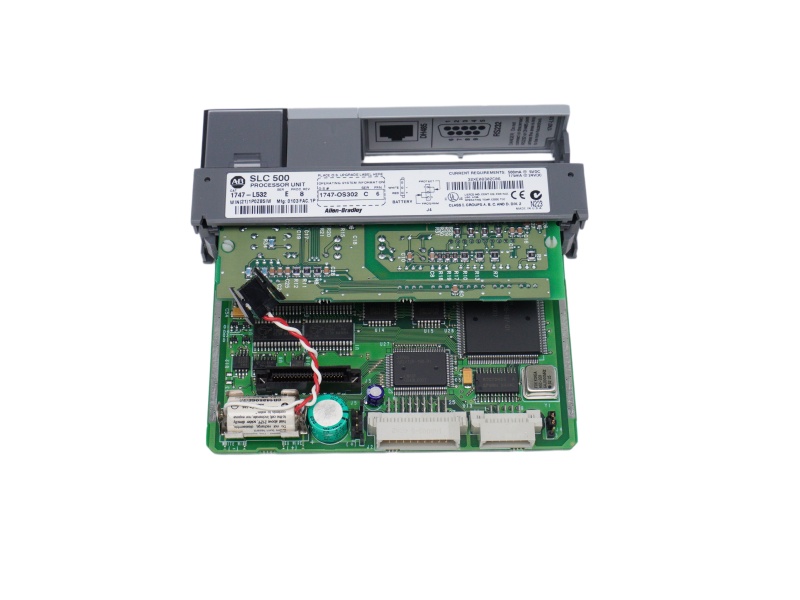

Allen-Bradley 1747-L532 SLC 5/03 processor circuit board view

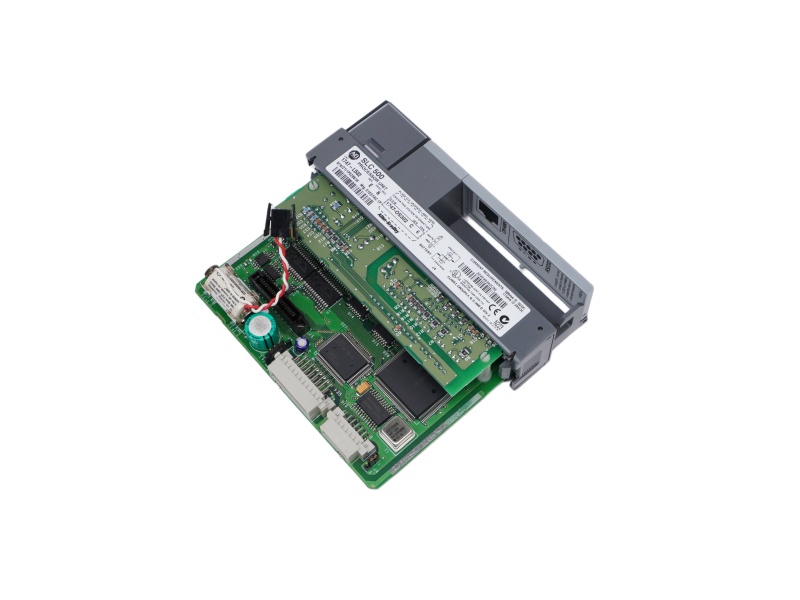

Allen-Bradley 1747-L532 controller angled internal view

Allen-Bradley 1747-L532 SLC 5/03 16K Controller

Sales Manager May
E-mail: ab@mooreplc.com
Phone / WhatsApp: +86-18106909650
Procurement-ready support
Send the required quantity, destination country, expected condition and delivery schedule for a tailored quotation.
✓ Brand New Original
Product condition is confirmed in the formal quotation.
◆ One Year Warranty
Warranty coverage and terms are stated before order confirmation.
✈ Worldwide Express Shipping
Shipment options include DHL, FedEx, TNT and UPS.
For an accurate quotation, please provide:
• Part number and required quantity
• Delivery destination and preferred courier
• Required condition, revision or series if applicable
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Allen-Bradley / Rockwell Automation
Item number 1747-L532
Country of Origin Singapore; verify the exact unit label
Lead Time Confirmed with stock and destination in quotation
After-Sales Support One-year warranty; technical and logistics support
HS Code / Commodity code Confirm according to destination-country customs classification
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SLC 500 Controller Profile

Allen-Bradley 1747-L532 SLC 5/03 16K Controller

A modular SLC 500 processor with 16K words of memory, online programming capability, built-in DH-485 and configurable RS-232 communications.

Catalog Number1747-L532
ProcessorSLC 5/03
Memory16K words
LifecycleDiscontinued

Product Information

The 1747-L532 is an Allen-Bradley SLC 5/03 modular processor for the Bulletin 1746 SLC system. Its 16K-word memory, runtime editing, real-time clock/calendar and battery-backed RAM support installed machine and process-control applications.

Channel 1 provides DH-485 communication. Channel 0 is an RS-232 port configurable for supported DF1, DH-485, ASCII and Modbus RTU Master communications according to the processor operating system and system design.

Buyer check: confirm the catalog number, series, operating-system revision and installed communication configuration before replacement.
Allen-Bradley 1747-L532 SLC 5/03 16K controller product information

Product Specifications

Catalog number 1747-L532
Product family / class Bulletin 1746 SLC System / Central processing unit (CPU)
Processor type SLC 5/03 controller
Memory 16K words
Maximum discrete I/O 4096 inputs / 4096 outputs
Maximum local system 3 chassis / 30 slots
Programming instructions 107
Typical scan time 1 ms/K*
Bit execution (XIC) 0.44 µs
Programming software RSLogix 500
Built-in communication ports Channel 1 DH-485; Channel 0 RS-232
Supported serial modes DF1 full-duplex, DF1 half-duplex master/slave, DF1 radio modem, DH-485, ASCII; supported OS versions also provide Modbus RTU Master
Selectable timed interrupt 2 ms
Discrete input interrupt 0.50 ms
Memory backup Battery-backed RAM; optional 1747-M13 Flash EPROM for OS302 Series C or later
5V DC backplane load 500 mA
24V DC backplane load 175 mA
Program hold-up after power loss 20 ms to 3 s, dependent on power-supply loading
Operating temperature 0 to 60 °C (32 to 140 °F)
Storage temperature −40 to 85 °C (−40 to 185 °F)
Relative humidity 5–95%, noncondensing
Vibration 0.015 in. peak-to-peak at 5–57 Hz; 2.5 g at 57–2000 Hz
Operating shock 30 g
Noise immunity NEMA ICS 2-230
Lifecycle status Discontinued; official discontinuation date March 31, 2024
Replacement category Engineering Replacement
Unique product identifier / UPC 1747-L532 / 662468217880
Official standard warranty duration 1 year
Country of origin record Singapore; verify the exact unit label because manufacturing location can vary
Certifications UL, C-UL, Class I Division 2, CE and C-Tick when the product is marked
*Typical for a 1K ladder program using simple ladder logic and communication servicing; actual scan time depends on program size, instructions and protocol.

Communication & Programming

• Online programming, including runtime editing

• Channel 1: built-in DH-485

• Channel 0: configurable RS-232

• DF1 full-duplex, half-duplex master/slave and radio-modem support

• ASCII I/O and supported Modbus RTU Master operation

Control Capabilities

• Real-time clock/calendar

• 2 ms selectable timed interrupt

• 0.50 ms discrete input interrupt

• PID, trigonometric and floating-point instructions

• Battery-backed RAM with optional Flash EPROM

Typical Applications

Machine sequencing
Discrete logic, interlocks and timed operations.
Material handling
Conveyors, transfer stations and coordinated I/O.
Process skids
PID-based control and serial-device integration.
Legacy system maintenance
Service of installed SLC 500 architectures.

Other SLC 5/03 Versions

1747-L531SLC 5/03 controller with 8K-word memory.
1747-L532SLC 5/03 controller with 16K-word memory; the model shown on this page.
1747-L533SLC 5/03 controller with 32K-word memory.
Selection note: memory size alone does not confirm interchangeability. Verify processor series, OS revision, program requirements and communication configuration before replacement.

Lifecycle, Alternatives & Migration

Official status: Discontinued as of March 31, 2024. The official replacement category is Engineering Replacement.

Is there a direct replacement? No drop-in replacement is identified for 1747-L532. A migration project should assess I/O, communications, program conversion, chassis and enclosure requirements.

Modernization direction: CompactLogix 5380 is the current migration platform promoted for SLC 500 modernization, but selection must be engineered for the installed application.

Other SLC 5/03 memory versions: 1747-L531 (8K), 1747-L532 (16K) and 1747-L533 (32K). SLC 5/04 and SLC 5/05 controllers use different built-in network options and must not be treated as automatic substitutes.

Buyer FAQ

Is 1747-L532 discontinued?
Yes. Rockwell Automation lists March 31, 2024 as its discontinuation date.
Can 1747-L532 be replaced by 1747-L533?
Both are SLC 5/03 processors, but the L533 has 32K memory. Verify operating-system revision, program size and system requirements before replacement.
Does this controller include Ethernet?
No built-in Ethernet port is specified. SLC 5/03 Ethernet connectivity requires an appropriate external interface and engineered network configuration.
What information should accompany an inquiry?
Quantity, destination, required condition, processor series/revision and photos of the installed label when compatibility is critical.
Are certification markings identical on every unit?
Certifications apply when the product is marked. Check the exact unit label and ordered configuration.
