Name: Omron R88M-K20030T-S2 G5 200 W Absolute-Encoder AC Servomotor
Availability: InStock

Omron R88M-K20030T-S2 G5 200 W Absolute-Encoder AC Servomotor

OMRON / G5 SERIES200 W ABSOLUTE SERVO

AC SERVOMOTOR

R88M-K20030T-S2

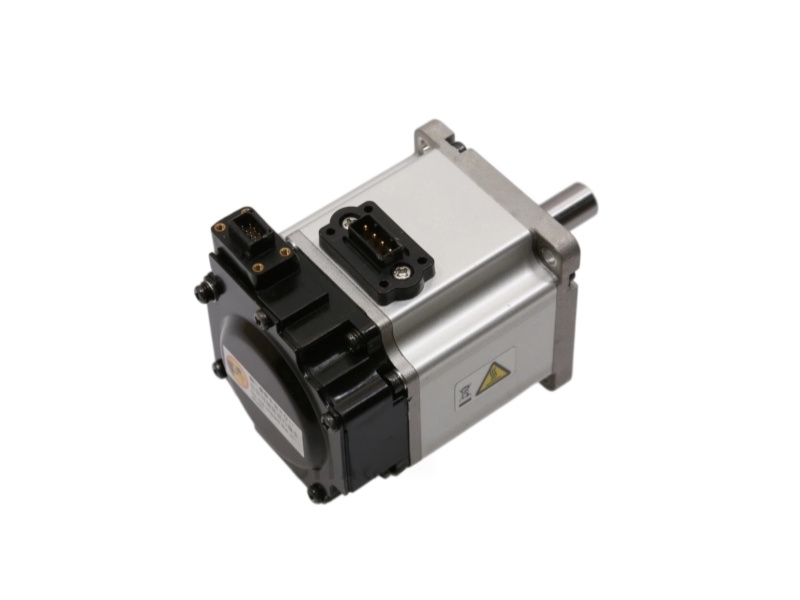

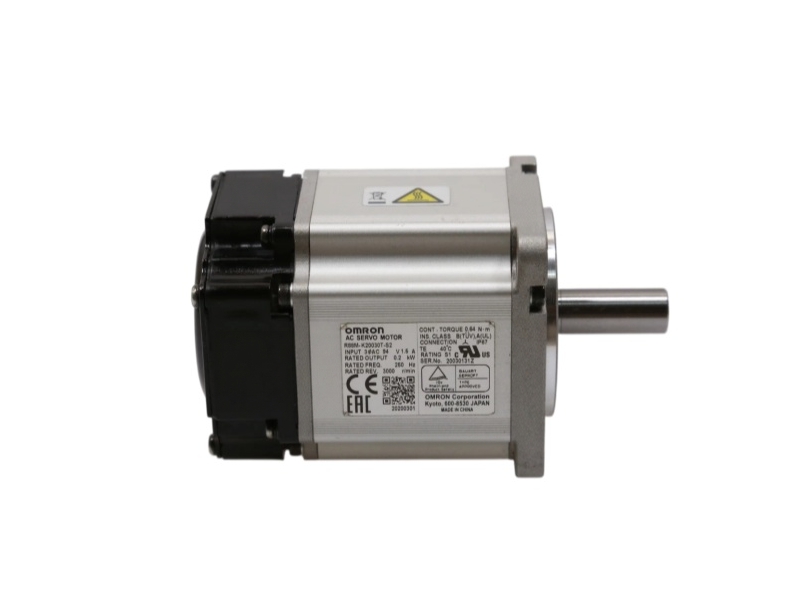

Omron R88M-K20030T-S2 is a 200 V, 200 W G5 AC servomotor with an absolute encoder, 3000 r/min rating and a straight shaft with key and tap.

MATCH ENCODER, SHAFT AND DRIVEConfirm the T absolute-encoder code, S2 keyed shaft, brake status, matching G5 servo drive, cable set and machine coupling before ordering.

SUPPLY STATUSOfficial G5 lineup

REPLACEMENTNo direct successor published

Brand New Original

One Year Warranty

Worldwide Shipping

REQUEST A R88M-K20030T-S2 QUOTE

PRODUCT INFORMATION

R88M-K20030T-S2 Official Servo Motor Parameters

The two ledgers separate the exact absolute-encoder performance data from shaft, loading, drive matching and mechanical dimensions.

MOTOR PERFORMANCE & ENCODER

SeriesG5 Series

Motor voltage class200 V

Rated output200 W

Rated speed3000 r/min

Maximum speed6000 r/min

Rated torque0.64 N·m

Maximum torque1.91 N·m

Rated current1.5 A rms

Maximum current6.5 A 0-p

Encoder typeAbsolute

Shaft arrangementStraight shaft with key and tap

Oil sealNot equipped

MECHANICAL LOADS, DRIVE MATCH & SIZE

Torque constant0.32 N·m/A ±10%

Power rate28.9 kW/s

Mechanical time constant0.58 ms

Electrical time constant3.2 ms

Rotor inertia0.14 x 10^-4 kg·m²

Allowable radial load245 N

Allowable thrust load98 N

Applicable drive familiesKT02H / KN02H-ML2 / KN02H-ECT

Flange size60 x 60 mm

Overall length79.5 mm

Shaft diameter11 mm

Approximate mass0.79 kg

PRODUCT INFORMATION

How R88M-K20030T-S2 Produces Closed-Loop Servo Motion

The servo drive command, motor torque, absolute feedback and machine transmission operate as one coordinated positioning path.

01Motion command

02G5 servo drive

03Servo torque

04Absolute position feedback

Convert commands into torque

The matched servo drive supplies controlled current so the motor produces the motion requested by the controller.

Return absolute position

The encoder reports shaft position to the drive and supports machine reference continuity within the configured system.

Accelerate compact mechanisms

Low rotor inertia supports responsive operation in handling, indexing and positioning equipment.

Transfer motion through the keyed shaft

The S2 shaft arrangement provides a defined mechanical interface for the machine coupling.

Coordinate with EtherCAT or MECHATROLINK

The motor can be paired with the corresponding G5 drive family selected for the machine network.

Preserve tuned behavior

Motor data, drive parameters, feedback handling and mechanical load settings must remain aligned during replacement.

PRODUCT INFORMATION

Omron R88M-K20030T-S2 Buyer FAQ

Clear purchasing guidance for informed sourcing decisions.

What do the T and S2 suffixes identify on Omron R88M-K20030T-S2?

The T code identifies the absolute-encoder version, and S2 identifies the straight shaft with key and tap. Match the full suffix, not only the 200 W rating.

Which servo drive is matched to Omron R88M-K20030T-S2?

Omron lists the 200 W G5 drive class, including KT02H, KN02H-ML2 and KN02H-ECT families. Select the exact network and power configuration used by the machine.

Does Omron R88M-K20030T-S2 include a holding brake?

No. This exact model is without a holding brake. A vertical or gravity-loaded axis requires a properly engineered external or brake-motor solution.

Which mechanical interface must be checked for Omron R88M-K20030T-S2?

Confirm the 60 mm flange, 11 mm shaft, key and tap, coupling, radial load, thrust load and available installation length.

Where is Omron R88M-K20030T-S2 normally used?

The motor suits compact G5 positioning axes such as feeders, indexers, packaging mechanisms and handling equipment that use absolute feedback.

What records are needed for an Omron R88M-K20030T-S2 inquiry?

Provide the motor and drive nameplates, encoder-cable and power-cable references, coupling details, brake requirement, machine load, quantity and destination.
