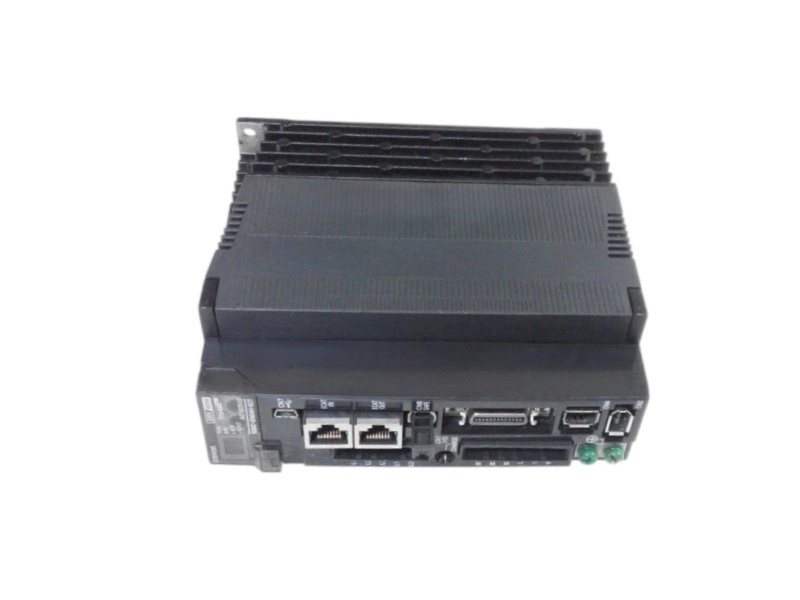

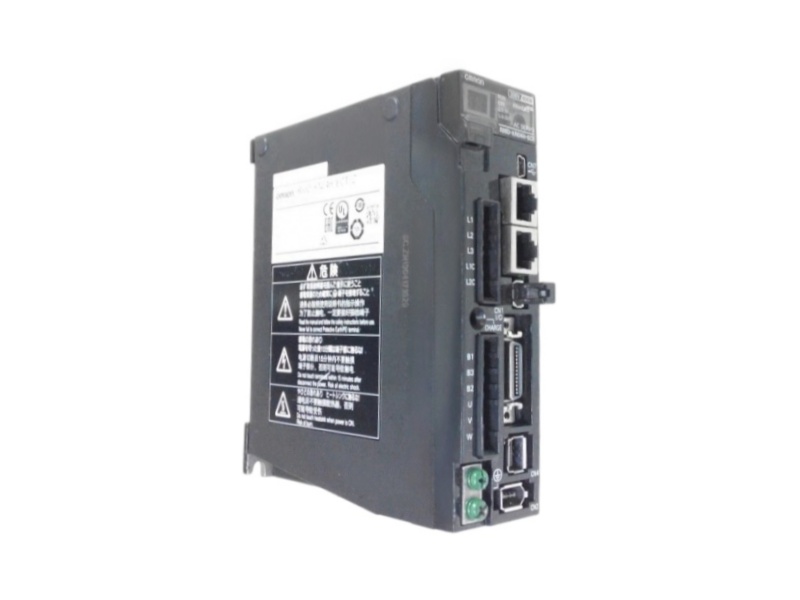

Omron R88D-KN04H-ECT-Z G5 EtherCAT Servo Drive 400 W

OMRON / G5 ETHERCAT SERVO400 W DRIVE
NETWORKED MOTION AMPLIFIER

R88D-KN04H-ECT-Z

Omron R88D-KN04H-ECT-Z is a G5 Series 400 W servo drive with built-in EtherCAT communication and single-phase or three-phase 200 to 240 VAC main-circuit input.

BEFORE INSTALLATIONConfirm the -Z regional configuration, matched servomotor, input phase, EtherCAT unit version, cables and regeneration requirements.
SELECTION CHECKVERIFY COMPLETE CONFIGURATION
Brand New OriginalFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Omron
Item number R88D-KN04H-ECT-Z
Country of Origin Japan
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code 850440
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CONTROL DOSSIER

R88D-KN04H-ECT-Z Power, EtherCAT and Mechanical Data

Official Omron technical data for the exact R88D-KN04H-ECT-Z configuration.

DRIVE IDENTITYKeep the ECT-Z suffix in scope

Verify the regional label, EtherCAT variant, firmware and stored axis parameters.

SERVO AXISMatch drive, motor and cables

Compatible G5 motor
Power and feedback cables
EtherCAT unit version
Regeneration and brake design

POWER STAGE & MOTION
INPUT TOLERANCE170 to 264 VAC, 50/60 Hz
POWER SUPPLY CAPACITY0.9 kVA
RATED INPUT CURRENT4.1 A single-phase / 2.4 A three-phase
CONTINUOUS OUTPUT CURRENT2.6 Arms
MAIN-CIRCUIT HEAT VALUE33 W single-phase / 24 W three-phase
CONTROL-CIRCUIT SUPPLYSingle-phase 200 to 240 VAC
CONTROL-CIRCUIT HEAT4 W
COMMUNICATIONEtherCAT
CONTROLLER CONNECTIONDirect connection to NJ-series controllers
OPERATING TEMPERATURE0 to 55°C
OPERATING HUMIDITY85% max., non-condensing
NETWORK & INSTALLATION
STORAGE TEMPERATURE-20 to 65°C
STORAGE HUMIDITY85% max., non-condensing
VIBRATION RESISTANCE10 to 60 Hz, 5.88 m/s² max.
INSULATION RESISTANCE0.5 MΩ min. at 500 VDC
EXTERNAL REACTOR, SINGLE PHASE3G3AX-DL2007
EXTERNAL REACTOR, THREE PHASE3G3AX-AL2025
RACK-MOUNT BRACKETR88A-TK02K
WIDTH55 mm
HEIGHT150 mm
DEPTH132 mm
APPROXIMATE WEIGHT1.0 kg
02
CONTROL DOSSIER

R88D-KN04H-ECT-Z Builds a 400 W EtherCAT Axis

A selection-focused view of function, integration boundaries and practical application roles.

USE 01

Control a 400 W servo axis

Apply the drive to a matched G5 motor within the official current and inertia limits.

USE 02

Synchronize machine motion

Exchange cyclic motion commands through EtherCAT with a compatible Omron controller.

USE 03

Run single-phase installations

Use the documented single-phase input ratings and the correct external reactor where required.

USE 04

Operate from three-phase supply

Use the 200 V-class three-phase input values when the machine distribution supports that configuration.

USE 05

Manage deceleration energy

Evaluate regenerative energy and select an external resistor when the application duty demands it.

USE 06

Replace a G5 axis drive

Restore motor, encoder, I/O, safety and EtherCAT parameters only after verifying the exact drive suffix.

03
CONTROL DOSSIER

Common buyer questions about R88D-KN04H-ECT-Z

Practical purchasing guidance for clearer, more confident decisions.

BUYER CHECKLISTSend the installed configuration

Complete label and revision
Base and power module
Required interfaces
Automation Studio version

01BUYER QUESTION

Which motor capacity is supported by Omron R88D-KN04H-ECT-Z?

The base R88D-KN04H-ECT drive is the 400 W G5 EtherCAT model. Select only a listed 400 W G5 motor and verify its exact winding, feedback, brake and cable combination.

02BUYER QUESTION

Can Omron R88D-KN04H-ECT-Z use single-phase and three-phase input power?

The official base-model specifications allow single-phase or three-phase 200 to 240 VAC, with different rated input current and heat values. Protection and reactor selection must match the chosen phase configuration.

03BUYER QUESTION

How is Omron R88D-KN04H-ECT-Z connected to an NJ machine controller?

The G5 EtherCAT drive connects directly through the EtherCAT network. Configure the node, unit version, axis mapping and motion parameters in the supported Omron engineering environment.

04BUYER QUESTION

When does Omron R88D-KN04H-ECT-Z require an external regeneration resistor?

Calculate regenerative energy from load inertia, speed and deceleration duty. If the internal handling is insufficient, select a resistor from Omron's G5 accessory table and apply the prescribed wiring and parameters.

05BUYER QUESTION

Can Omron R88D-KN04H-ECT-Z replace another KN04H drive without reconfiguration?

Do not assume a drop-in replacement. Compare ECT communication, the -Z regional label, firmware or unit version, motor pairing, encoder and power cables, I/O, safety circuits and stored axis parameters.

06BUYER QUESTION

What details should accompany an Omron R88D-KN04H-ECT-Z inquiry?

Send the complete drive and motor labels, controller model, EtherCAT unit version, input phase, cable numbers, brake and regeneration details, quantity, condition requirement and destination; include the official G5 manual used by the machine.
