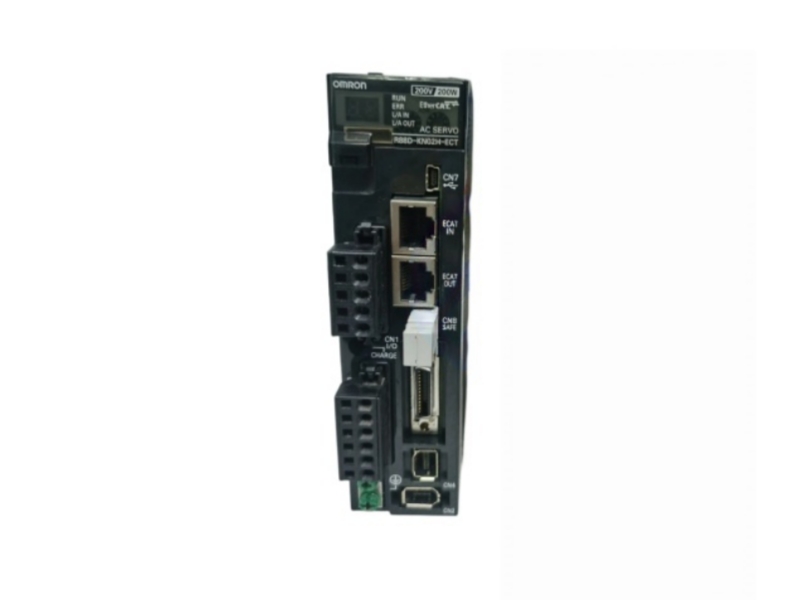

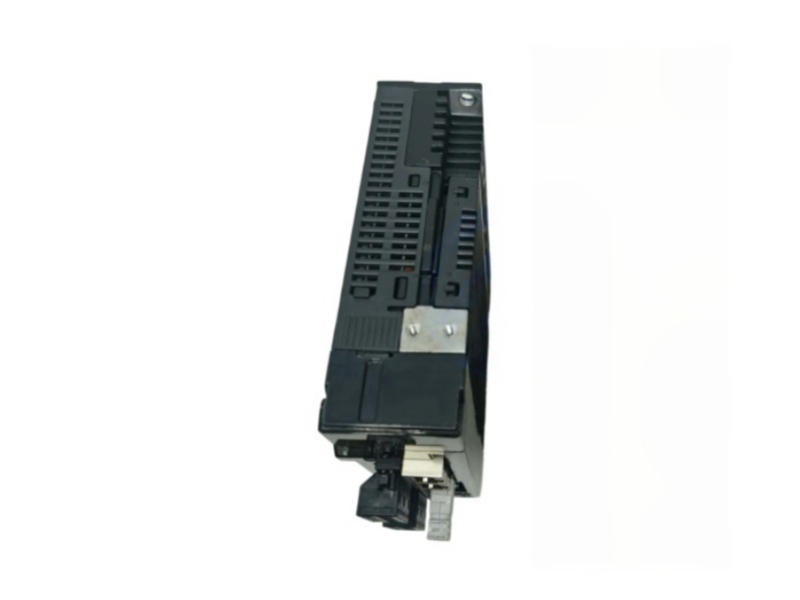

Name: Omron R88D-KN02H-ECT-Z G5 200 W EtherCAT Servo Drive
Availability: InStock

Omron R88D-KN02H-ECT-Z G5 200 W EtherCAT Servo Drive

OMRON / G5 ETHERCAT200 W SERVO DRIVE

ETHERCAT AC SERVO DRIVE

R88D-KN02H-ECT-Z

Omron R88D-KN02H-ECT-Z is a 200 W-class G5 servo drive with built-in EtherCAT, CiA 402 motion modes and dual RJ45 network connections.

VERIFY THE -Z ORDER CODEMatch the complete -Z designation, supply phase, G5 motor, EtherCAT project, safety wiring, firmware and connector set before replacement.

SUPPLY STATUSOfficial Omron documentation

REPLACEMENTNo direct successor published

Brand New Original

One Year Warranty

Fast Delivery

REQUEST A R88D-KN02H-ECT-Z QUOTE

PRODUCT INFORMATION

R88D-KN02H-ECT-Z Official Drive and EtherCAT Parameters

The two-column ledger separates exact power and motor matching from EtherCAT services, motion modes and the operating boundary.

POWER, MOTOR MATCH & OUTPUT

SeriesG5 Series

Maximum motor capacity200 W

Main-circuit supplySingle- or three-phase 200-240 VAC

Allowable supply range170 to 264 VAC

Supply frequency50/60 Hz

Continuous output current1.6 A rms

Power capacity0.5 kVA

Rated input current2.4 A single-phase / 1.3 A three-phase

Rated heat output23 W single-phase / 19 W three-phase

Control-circuit supply200-240 VAC

Control-circuit heat output4 W

Applicable absolute motorR88M-K20030T

Applicable incremental motorR88M-K20030H

Network protocolEtherCAT, IEC 61158 Type 12

ETHERCAT, MOTION & ENVIRONMENT

Drive profileIEC 61800-7 / CiA 402

Physical layer100BASE-TX

Network connectors2 shielded RJ45, IN and OUT

Required cableCategory 5 or higher

Maximum node distance100 m

Process dataFixed PDO mapping

Service dataCoE SDO and emergency messages

Distributed-clock cycles250 µs, 500 µs, 1, 2 or 4 ms

Motion modesCSP, CSV, CST, profile position and homing

Touch probeSupported

Torque limitingSupported

Network indicatorsL/A IN, L/A OUT, RUN and ERR

Operating temperature0 to 55°C

Approximate mass0.8 kg

PRODUCT INFORMATION

How R88D-KN02H-ECT-Z Executes EtherCAT Motion Commands

The controller cycle, EtherCAT network, servo loops and matched motor feedback create one deterministic motion-control path.

01Motion controller

02EtherCAT telegram

03G5 servo loops

04Matched motor axis

Synchronize with the machine network

Distributed clocks align drive execution with the controller's coordinated EtherCAT cycle.

Interpret CiA 402 commands

The drive executes standardized cyclic position, velocity and torque operating modes.

Regulate motor current

Internal servo loops convert motion targets into controlled current for the matched G5 motor.

Return status and feedback

Process data reports the drive state and axis information required by the motion application.

Support commissioning services

CoE service data provides access to parameters and diagnostic records outside the cyclic command path.

Preserve axis behavior

Firmware, motor data, PDO use, cycle timing and tuning must be retained or validated during replacement.

PRODUCT INFORMATION

Omron R88D-KN02H-ECT-Z Buyer FAQ

Clear purchasing guidance for informed sourcing decisions.

Is Omron R88D-KN02H-ECT-Z an officially documented exact model?

Yes. Omron's official Chinese G5 documentation lists the complete R88D-KN02H-ECT-Z designation. Match the -Z suffix on the nameplate.

Which motor class belongs with Omron R88D-KN02H-ECT-Z?

The drive is in the 200 W class and is documented for the corresponding R88M-K20030H incremental or R88M-K20030T absolute G5 motor.

Which EtherCAT modes can Omron R88D-KN02H-ECT-Z execute?

The official G5 specification includes cyclic synchronous position, velocity and torque, plus profile position, homing, touch-probe and torque-limit functions.

Which communication cycle can Omron R88D-KN02H-ECT-Z use?

Distributed-clock operation supports the documented 250 µs, 500 µs, 1 ms, 2 ms or 4 ms cycles. The controller project must use a supported setting.

Can Omron R88D-KN02H-ECT-Z replace another KN02H drive by rating alone?

No. Verify the -Z order code, EtherCAT firmware, supply phase, motor encoder, connectors, safety circuit, PDO behavior and stored tuning.

What should be sent for an Omron R88D-KN02H-ECT-Z quote?

Provide front and side nameplates, firmware, matched motor, controller model, EtherCAT cycle, alarm history, connector photos, quantity and destination.
