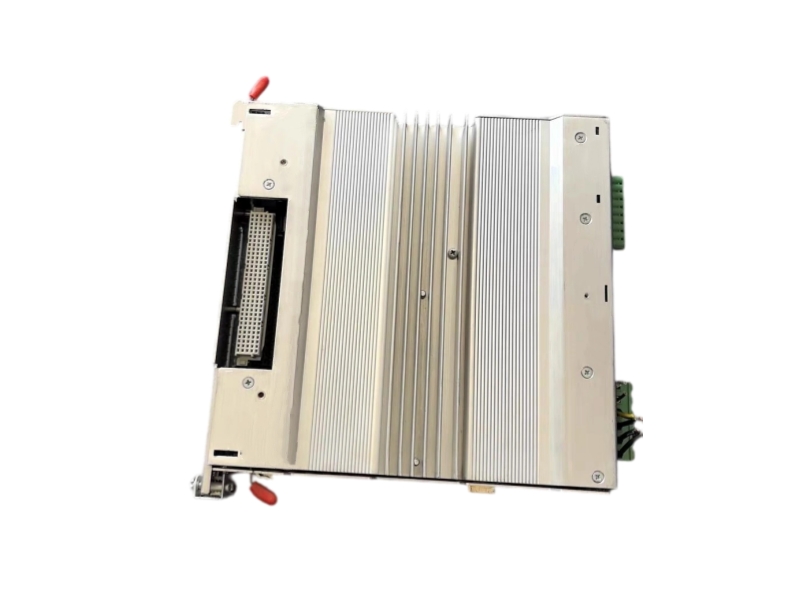

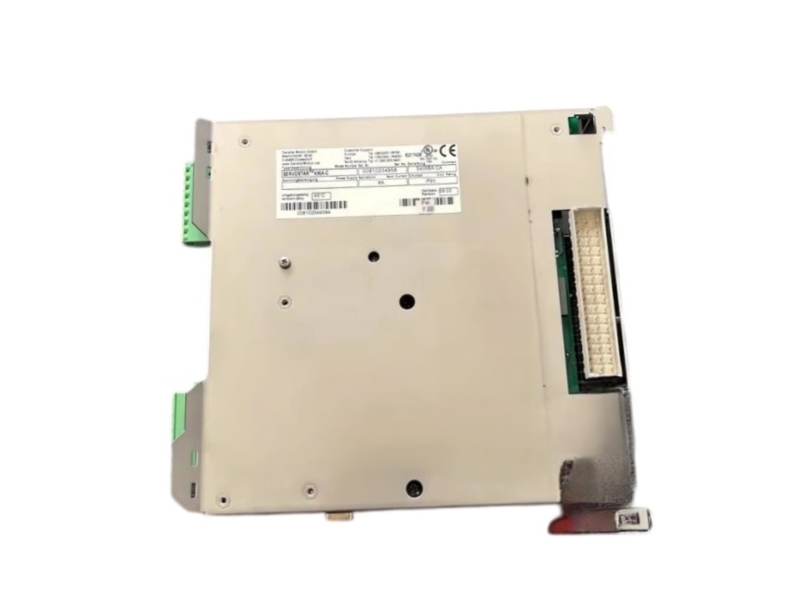

Kollmorgen S406BA-CA SERVOSTAR 400 Axis Servo Amplifier

KOLLMORGEN / SERVOSTAR 400DISCONTINUED AXIS MODULE
MULTI-AXIS SERVO CONTROL

S406BA-CA

Kollmorgen S406BA-CA is a 6 A rms SERVOSTAR 400 axis module for master-powered multi-axis servo systems.

BEFORE INSTALLATIONMatch the exact suffix, master-module supply class, firmware, motor feedback and CANopen configuration before replacement.
PRODUCT STATUSS400 discontinued
SELECTION CONTROLDRIVE + MOTOR CHECK
Integrity SupplyOne Year WarrantyFast Delivery
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Kollmorgen
Item number S406BA-CA
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FIELD JOURNAL

S406BA-CA Axis-Drive Electrical Parameters

Official Kollmorgen current, DC-bus, control-interface, environment and mechanical data for the 406A axis class.

POWER STAGE & CONTROL SIGNALS
RATED DC BUS160 to 560 VDC
RATED OUTPUT CURRENT6 A rms at 8 kHz
PEAK OUTPUT CURRENT12 A rms for approximately 5 s
OUTPUT-STAGE FREQUENCY8 kHz; 16 kHz with derating
MAXIMUM LOAD INDUCTANCE40 mH
MINIMUM LOAD INDUCTANCE7.5 mH
OUTPUT-CURRENT FORM FACTOR1.01
CURRENT-CONTROLLER BANDWIDTH>1.2 kHz
RESIDUAL VOLTAGE DROP<5 V at rated current
QUIESCENT DISSIPATION15 W
RATED-CURRENT DISSIPATION40 W
ANALOG INPUT RESOLUTION14-bit
AUXILIARY, ENVIRONMENT & MECHANICAL
DIGITAL INPUT HIGH LEVEL12 to 36 V
DIGITAL OUTPUT RATING30 VDC maximum, 10 mA
READY RELAY CONTACT30 VDC / 42 VAC maximum, 500 mA
AUXILIARY SUPPLY20 to 30 VDC without brake or fan
MOTOR BRAKE CURRENT0.15 to 1.5 A
STANDARD FIELDBUSCANopen
OPERATING TEMPERATURE0 to 45°C at rated conditions
DERATED OPERATION45 to 55°C at 2.5% per K
HUMIDITY85% RH, non-condensing
ENCLOSURE PROTECTIONIP20
DIMENSIONS267 x 50 x 240 mm without connectors
WEIGHT1.7 kg
02
FIELD JOURNAL

How S406BA-CA Operates Inside a SERVOSTAR 400 Group

A replacement route focused on the shared power architecture, motor-feedback path and retained machine configuration.

USE 01

Add an axis to an S400 group

Install the axis module beside the appropriate master where the shared power and mechanical arrangement are already engineered.

USE 02

Control a closed-loop servomotor

Combine current, speed and position control with one supported motor-feedback interface selected in the drive parameters.

USE 03

Coordinate electronic gearing

Use the documented master-slave and encoder-emulation interfaces when the machine synchronizes multiple motion axes.

USE 04

Retain a legacy CANopen motion node

A matching spare can preserve network participation when node settings, firmware and object mapping are documented.

USE 05

Control a motor holding brake

The drive provides a dedicated brake-control path that must be checked for voltage drop and load current.

USE 06

Recover regenerative energy safely

The axis returns energy to the shared DC bus, while braking hardware and capacity are engineered at the master-system level.

03
FIELD JOURNAL

Common buyer questions about S406BA-CA

Practical purchasing guidance for clearer, more confident decisions.

01BUYER QUESTION

Why can Kollmorgen S406BA-CA not be installed as a stand-alone mains-powered drive?

The 406A designation identifies an axis module. The SERVOSTAR 400 master supplies the shared DC bus, so a compatible master module and correctly engineered multi-axis power group are required.

02BUYER QUESTION

Which motor-feedback types must be reviewed when replacing Kollmorgen S406BA-CA?

The S400 manual supports resolver and several sine, incremental, EnDat, HIPERFACE, BiSS and related feedback arrangements. The installed motor encoder and parameter assignment must match the replacement.

03BUYER QUESTION

How should CANopen identity be preserved during a Kollmorgen S406BA-CA exchange?

Record the node address, baud rate, object mapping, firmware and machine-controller configuration before removal, then restore only settings appropriate to the exact hardware suffix.

04BUYER QUESTION

What thermal installation conditions apply to Kollmorgen S406BA-CA?

Rated operation is specified to 45°C, with power derating above that point to 55°C. Maintain the documented vertical mounting, airflow and cabinet clearances.

05BUYER QUESTION

What is the official lifecycle status of Kollmorgen S406BA-CA?

Kollmorgen categorizes the S400 documentation under Discontinued and Discontinued Drives. Replacement therefore requires verification of installed hardware, not an assumption of current OEM supply.

06BUYER QUESTION

Which S400 manual and nameplate records are needed to quote a correct Kollmorgen S406BA-CA spare?

Use Kollmorgen's official SERVOSTAR 400 instructions for the engineering review. Provide the complete nameplate, hardware and firmware revisions, master module, motor and feedback data, fieldbus settings, option cards, quantity and destination.
