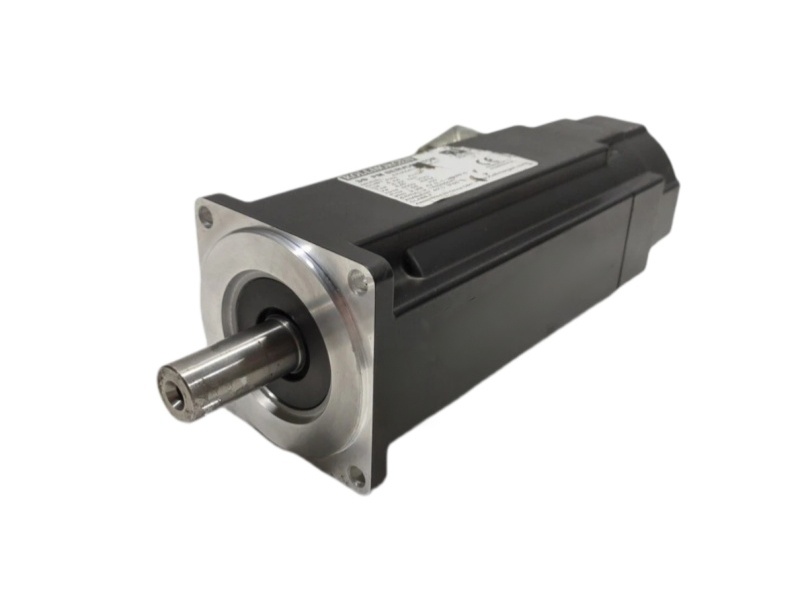

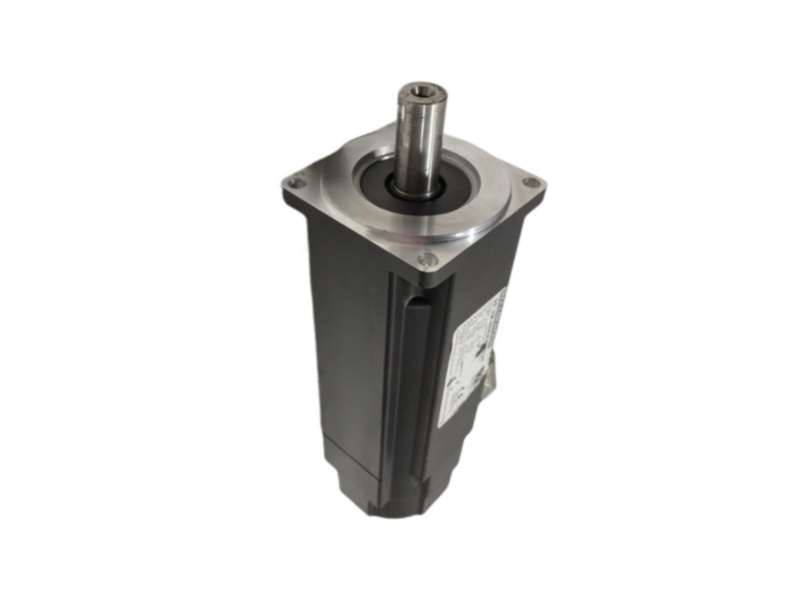

Kollmorgen AKM33E-ANCNR-00 AKM Synchronous Servo Motor

KOLLMORGEN / AKM SERVO MOTIONAKM33E MOTOR
PERMANENT-MAGNET SERVO

AKM33E-ANCNR-00

Kollmorgen AKM33E-ANCNR-00 is an AKM Series permanent-magnet synchronous servo motor built around the AKM33E winding and a configuration-specific feedback, shaft and connection code.

BEFORE INSTALLATIONDecode the full suffix and match the drive voltage, feedback interface, power cable, mechanical mounting and application speed before replacement.
SELECTION CHECKVERIFY COMPLETE CONFIGURATION
Brand New OriginalFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Kollmorgen
Item number AKM33E-ANCNR-00
Country of Origin USA
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code 850152
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CONTROL DOSSIER

AKM33E-ANCNR-00 Motor Performance and Configuration Data

Official Kollmorgen technical data for the exact AKM33E-ANCNR-00 configuration.

MOTOR IDENTITYDecode the complete AKM suffix

Verify winding, feedback, shaft, flange and connector options from the motor nameplate.

AXIS MATCHINGCheck the complete servo axis

Drive and DC-bus class
Feedback connector and cable
Brake and holding requirements
Load inertia and tuning data

AKM33E PERFORMANCE
STACK DESIGNATION3
WINDING CODEE
CONTINUOUS TORQUE AT 60°C RISE2.23 N·m
PEAK STALL TORQUE8.95 N·m
PEAK LINE CURRENT9.0 Arms
MAXIMUM SYSTEM SPEED3140 rpm
ROTOR INERTIA0.85 kg·cm²
APPROXIMATE MOTOR WEIGHT2.90 kg
INSULATION CLASSClass F, 155°C
RATED WINDING RISE100°C over 40°C ambient
MOTOR FAMILY SPEED RANGEUp to 8000 rpm, configuration-dependent
CONFIGURATION & INTEGRATION
AVAILABLE SUPPLY FAMILIES75 VDC; 120/240/480 VAC windings
TORQUE CONSTANT AT 25°C1.10 N·m/Arms
BACK EMF CONSTANT AT 25°C70.6 Vrms/krpm
LINE-TO-LINE RESISTANCE AT 25°C9.01 Ω
LINE-TO-LINE INDUCTANCE18.5 mH
INGRESS OPTIONDepends on shaft seal and configuration
MOUNTING DATAUse configuration-specific outline drawing
POWER CABLEMatch motor connector and drive family
FEEDBACK CABLEMatch installed feedback option
DRIVE TUNINGMotor database and load dependent
NAMEPLATE VERIFICATIONRequired for ANCNR-00 configuration
02
CONTROL DOSSIER

AKM33E-ANCNR-00 Integrates Into a Servo Axis

A selection-focused view of function, integration boundaries and practical application roles.

USE 01

Position compact machine axes

Apply the low-inertia AKM rotor to indexing and positioning tasks within the verified torque-speed envelope.

USE 02

Drive cyclic automation motion

Use the motor with a compatible servo drive where rapid acceleration and controlled deceleration are required.

USE 03

Power rotary handling units

Match the coupling, radial load and motion profile to the selected frame and shaft configuration.

USE 04

Build coordinated multi-axis systems

Commission the motor database, feedback alignment and drive network as part of the machine motion architecture.

USE 05

Replace an installed AKM axis motor

Preserve the exact winding, feedback, shaft, brake and connector codes unless engineering approves a change.

USE 06

Tune application mechanics

Use the documented rotor inertia and torque-speed curve when calculating reflected load and control-loop settings.

03
CONTROL DOSSIER

Common buyer questions about AKM33E-ANCNR-00

Practical purchasing guidance for clearer, more confident decisions.

BUYER CHECKLISTSend the installed configuration

Complete label and revision
Base and power module
Required interfaces
Automation Studio version

01BUYER QUESTION

What performance data applies to the AKM33E core of Kollmorgen AKM33E-ANCNR-00?

The official AKM system catalog lists 2.23 N·m continuous torque at 60°C rise, 8.95 N·m peak stall torque, 9.0 Arms peak line current and a 3140 rpm maximum for the AKM33E system pairing shown.

02BUYER QUESTION

How should the ANCNR option string on Kollmorgen AKM33E-ANCNR-00 be verified?

Use the current Kollmorgen AKM part-number scheme and the motor nameplate to decode flange, shaft, feedback, brake, connector and sealing selections. Do not infer compatibility from AKM33E alone.

03BUYER QUESTION

Which servo drive can operate Kollmorgen AKM33E-ANCNR-00?

Choose a Kollmorgen drive and power stage that support the E winding, installed feedback type, required peak current and application bus voltage. Load the matching motor data and verify cable part numbers during commissioning.

04BUYER QUESTION

What mechanical checks are needed before installing Kollmorgen AKM33E-ANCNR-00?

Compare the configuration-specific outline drawing, pilot and bolt pattern, shaft geometry, connector clearance, coupling load, cable bend radius and machine guarding before installation.

05BUYER QUESTION

Can Kollmorgen AKM33E-ANCNR-00 replace another AKM33 motor with a different suffix?

Not automatically. The shared frame does not guarantee identical winding, feedback, brake, shaft, seal or connector orientation. Compare every option character and the drive setup before replacement.

06BUYER QUESTION

Which documents and label details are needed to quote Kollmorgen AKM33E-ANCNR-00?

Provide clear nameplate and connector photos, the complete part number, drive model, cable numbers, flange and shaft requirements, brake requirement, quantity, condition requirement and destination. Use the AKM installation manual and current part-number scheme.
