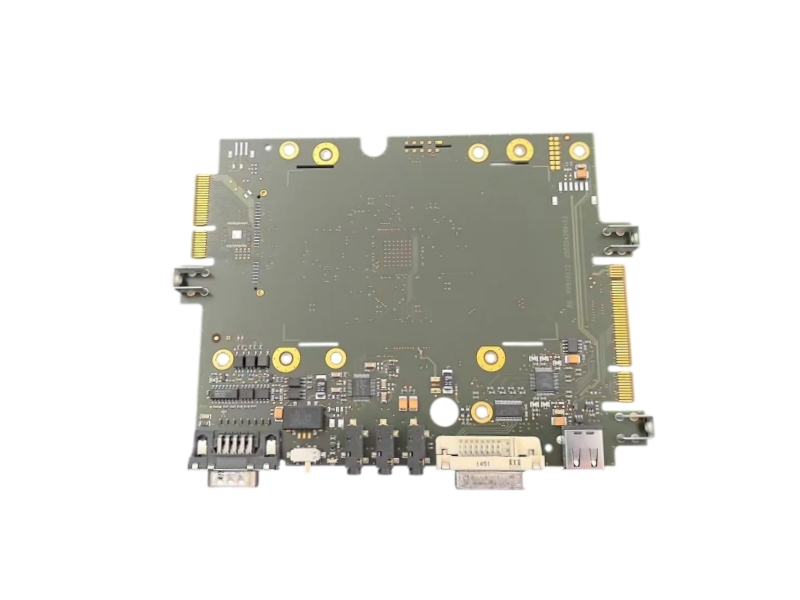

B&R 5PP5IO.GNAC-00 Power Panel 500 I/O Interface Board

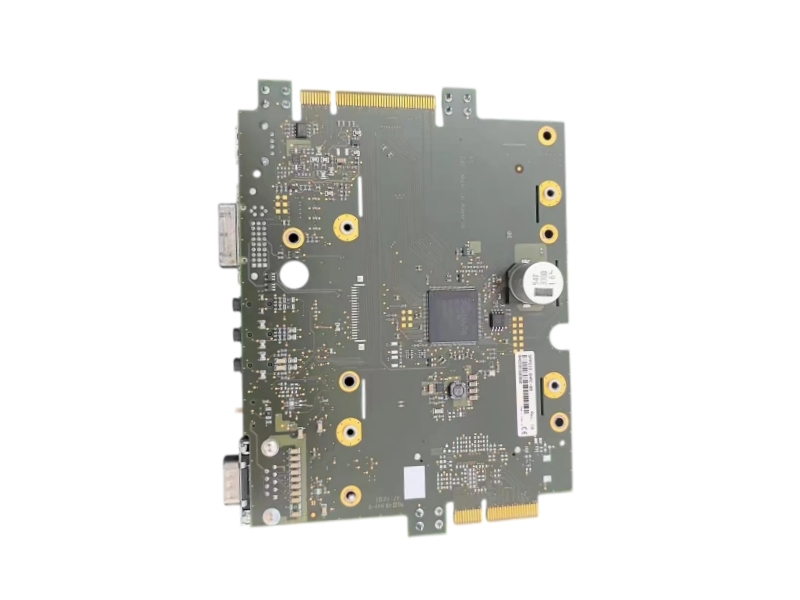

B&R 5PP5IO.GNAC-00 Power Panel 500 I/O Interface Board - View 2
B&R 5PP5IO.GNAC-00 Power Panel 500 I/O Interface Board - View 3

B&R 5PP5IO.GNAC-00 Power Panel 500 I/O Interface Board

B&R / POWER PANEL 500

5PP5IO.GNAC-00

B&R 5PP5IO.GNAC-00 adds serial, USB, audio and SDL/DVI interfaces to PP500 and APC511 systems for peripheral and display connectivity.

Integrity Supply●One Year Warranty●Fast Delivery
RS485ISOLATED COM2
USB 2.0UP TO 480 Mbit/s
SDL/DVIPANEL LINK
PRODUCT ENQUIRYMatch the host slot, serial mode and display path
LEAD TIME2-3 DAYS
Inquire Now
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5PP5IO.GNAC-00
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
OFFICIAL INTERFACE DATA

Power Panel 500 connectivity profile

Serial, USB, audio and display interfaces for the exact GNAC board.

01
Material number5PP5IO.GNAC-00
Product rolePower Panel I/O interface board
B&R ID code0xB4DD
Host compatibilityPower Panel 500 and Automation PC 511
COM2 standardRS232 / RS422 / RS485
COM2 isolationGalvanically isolated
COM2 connector9-pin female DSUB
UART16550-compatible, 16-byte FIFO
Maximum serial rate115 kbit/s
USB quantity1
USB standardUSB 2.0
USB connectorType A
USB transfer rates1.5 / 12 / 480 Mbit/s
USB current capacityMaximum 1 A
Panel interfaceSDL / DVI
Panel connectorFemale DVI-I
Audio standardHDA sound
Audio inputsMicrophone and Line In
Audio outputLine Out
Power consumption7 W
Operating temperature0 to 50°C
Storage temperature-20 to 60°C
Operating humidity5 to 90%, non-condensing
Storage humidity5 to 95%, non-condensing
INTERFACE SIGNAL PATH

How one board extends the operator platform

Keep service, display and field communication paths clearly separated.

02
PROCESS STAGE 01

SERIAL CHANNEL

COM2 routes isolated RS232, RS422 or RS485 traffic through the 9-pin female DSUB interface.

PROCESS STAGE 02

SERVICE ACCESS

The USB 2.0 Type A port supports low-, full- and high-speed devices within the documented current limit.

PROCESS STAGE 03

DISPLAY & AUDIO

SDL/DVI carries the panel or monitor path while HDA connections provide microphone, line input and line output.

SYSTEM FIT

Power Panel 500 and Automation PC 511 units that include the specified I/O-board slot.

INSTALLATION GATE

Confirm the host slot, connector pinout, serial standard and peripheral load before power-up.

PURCHASING FAQ

Frequently Asked Questions from Buyers

Make sourcing and migration decisions with confidence.

03
01

Which interfaces are integrated on B&R 5PP5IO.GNAC-00?

The board combines one galvanically isolated RS232/422/485 channel, one USB 2.0 Type A port, HDA audio and one SDL/DVI panel interface.

02

Where can B&R 5PP5IO.GNAC-00 be installed without changing the host platform?

It is intended for Power Panel 500 and Automation PC 511 systems that have the specified I/O-board slot. Check the host label and slot before ordering.

03

How should the COM2 port on B&R 5PP5IO.GNAC-00 be prepared for an existing field device?

Match RS232, RS422 or RS485 mode, the 9-pin DSUB pin assignment, termination, baud rate and cable shielding to the installed device.

04

What limits matter when using the USB port on B&R 5PP5IO.GNAC-00?

The Type A interface supports USB 2.0 low-, full- and high-speed operation and has a documented maximum current capacity of 1 A.

05

How should availability of B&R 5PP5IO.GNAC-00 be checked for a maintenance order?

Request a dated stock statement and verify the B&R ID, board revision, connector condition and host-system slot because legacy installed units can differ.

06

What information should accompany a manual or quotation request for B&R 5PP5IO.GNAC-00?

Send the PP500 or APC511 host model, board photos, quantity, required serial mode, display connection, destination and delivery target so the offer can be reviewed accurately.
