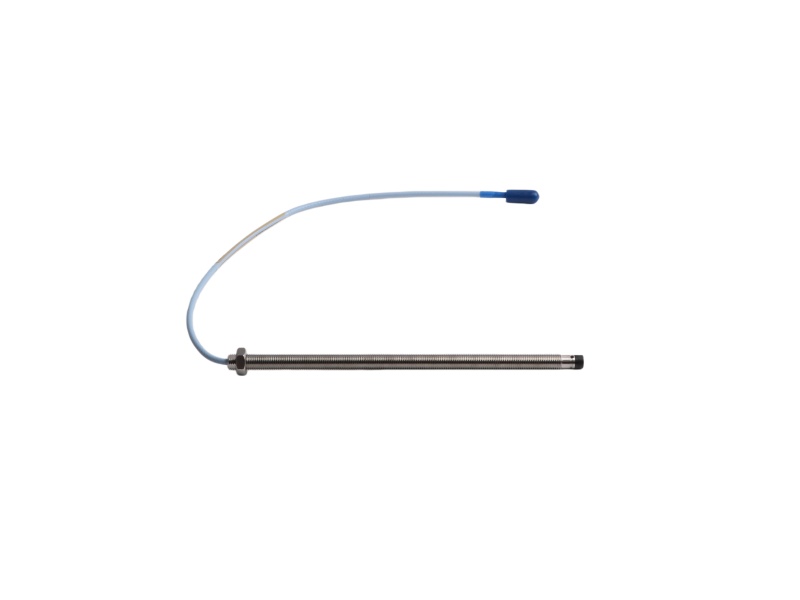

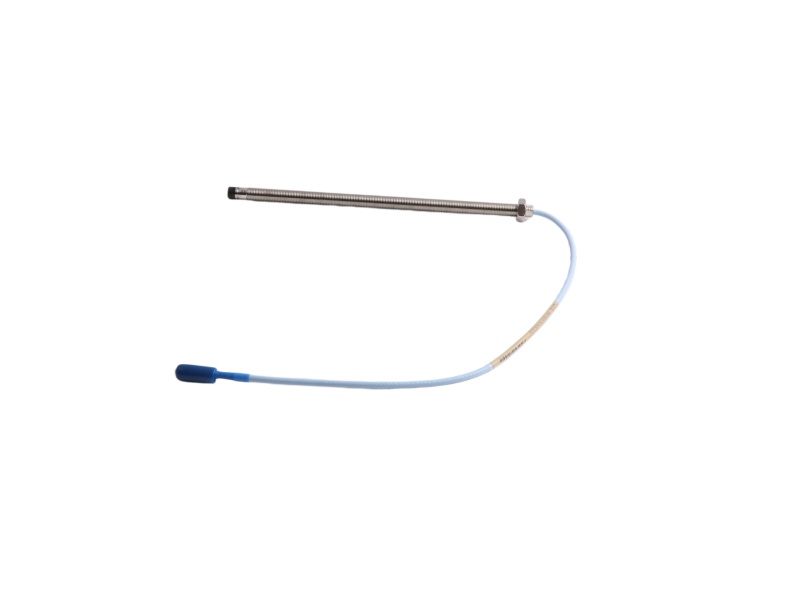

Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable.
| Manufacturer | Bently Nevada (Baker Hughes) |
| Item number | 330101-02-78-05-02-00 |
| Country of Origin | United States |
| Lead Time | Contact for current lead time |
| After-Sales Support | One Year Warranty |
| HS Code / Commodity code | 9031809090 (verify with destination customs) |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
When used with the matching 3300 XL extension cable and Proximitor Sensor, the system provides an output proportional to the distance between the probe tip and a conductive target.
Primary applications are vibration and position measurements on fluid-film bearing machines.
These are system-level references for a probe, extension cable and Proximitor Sensor under the stated datasheet conditions; they are not isolated probe-only guarantees.
Discontinued? This family and ordering structure remain present in the current manufacturer documentation; this exact code is not identified there as discontinued.
Availability should still be confirmed against the exact order code before purchase.
Direct substitute: no single alternative should be assumed without matching thread, unthreaded length, case length, total system length, cable option and approvals.
Related official variants include armored 330102, metric-thread 330103/330104, reverse-mount 330105/330106, smooth-case 330140/330141 and other length/cable/approval options.
Sales Manager May will confirm configuration, availability and shipping options.
Unrelated sourcing references only; they are not presented as compatible, equivalent or interchangeable with the product above.
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details
BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details
BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
Details
