| Manufacturer | Bently Nevada (Baker Hughes) |
| Item number | 330101-39-47-10-02-05 |
| Country of Origin | Confirm from product nameplate or certificate of origin |
| Lead Time | Contact us for current availability |
| After-Sales Support | Documentation and order support |
| HS Code / Commodity code | Confirm for destination before customs declaration |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

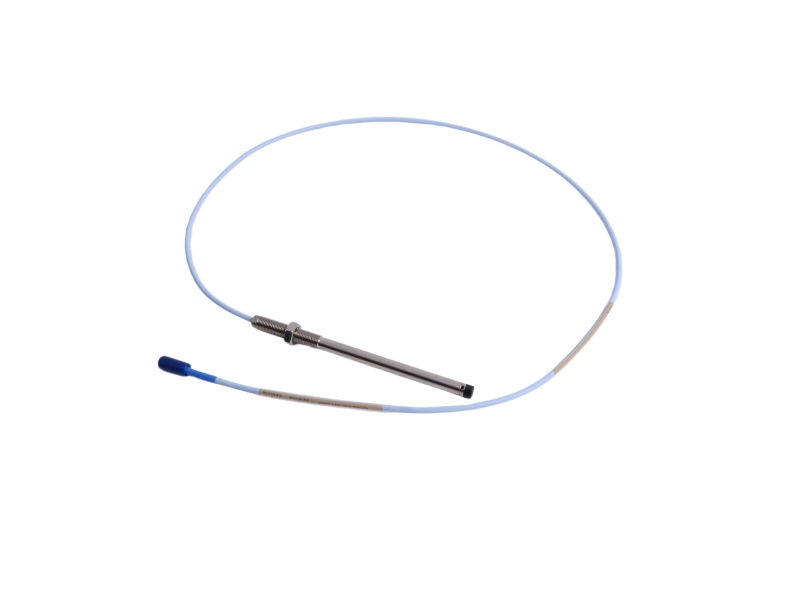

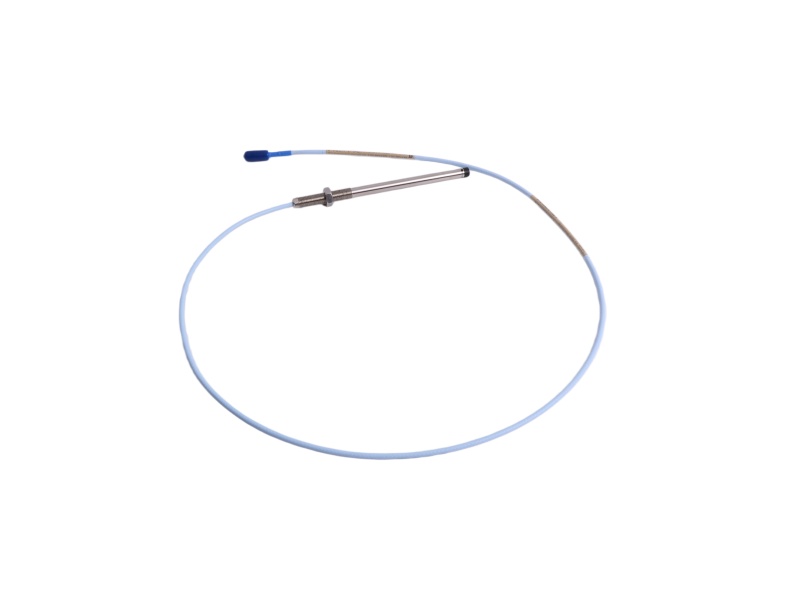

This order code identifies a non-armored, 3/8-24 UNF standard-mount probe with a 3.9 in unthreaded section, 4.7 in overall case length, 1.0 m total length, miniature coaxial ClickLoc connector and the 05 agency-approval option.
The 39 and 47 code blocks define the mechanical relationship that must match the installation: 3.9 in unthreaded length within a 4.7 in overall case. The official ordering rule requires the unthreaded length to be at least 0.8 in less than the case length; this configuration meets that limit exactly.
Compare thread, exposed length, case length, total electrical length, cable option and agency approval. A nearby 37/57 configuration has different mechanical dimensions even though the product family and remaining code blocks are similar.
| Block | Official interpretation |
|---|---|
| 330101 | 3300 XL 8 mm probe, 3/8-24 UNF thread, without armor |
| 39 | 3.9 in unthreaded length |
| 47 | 4.7 in overall case length |
| 10 | 1.0 m total length |
| 02 | Miniature coaxial ClickLoc connector, standard cable, without connector protector |
| 05 | CSA, ATEX and IECEx approval option |
| Linear range | 2 mm (80 mil) |
| Scale factor | 7.87 V/mm (200 mV/mil) |
| Recommended gap | 1.27 mm (50 mil) |
| Standard probe temperature | -52°C to +177°C |
| Minimum bend radius | 25.4 mm (1.0 in) |
The probe is not a standalone measurement system. Use it with the matching 3300 XL extension cable and Proximitor Sensor selected for the required total system length.
Performance values are complete-system references under the official datasheet conditions: -24 Vdc supply, 10 kΩ load, AISI 4140 steel target and specified reference temperature and gap.
No automatic interchangeability should be assumed; the unthreaded and overall case lengths differ.
No. A matching extension cable and Proximitor Sensor are required.
A miniature coaxial ClickLoc connector with standard cable and no connector protector.
The CSA, ATEX and IECEx agency-approval option.
