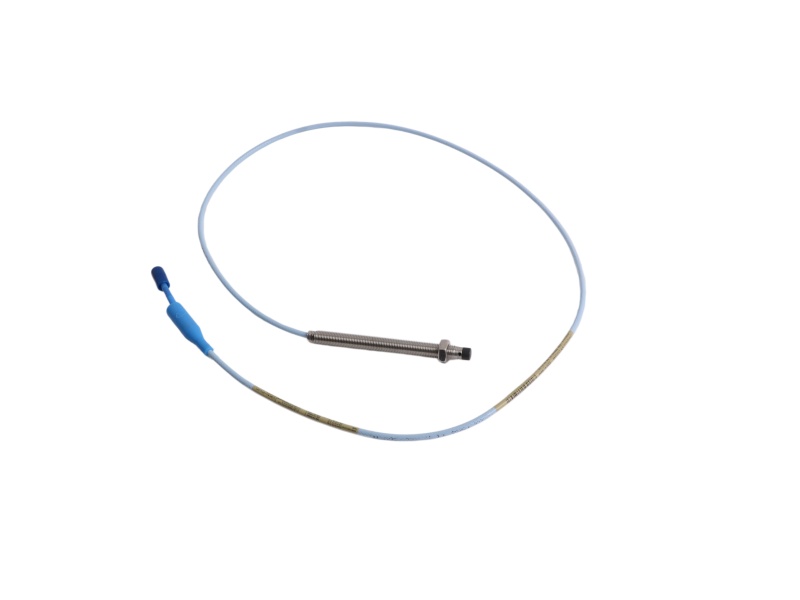

Bently Nevada 330101-01-39-10-01-05 3300 XL 8 mm proximity probe view 1

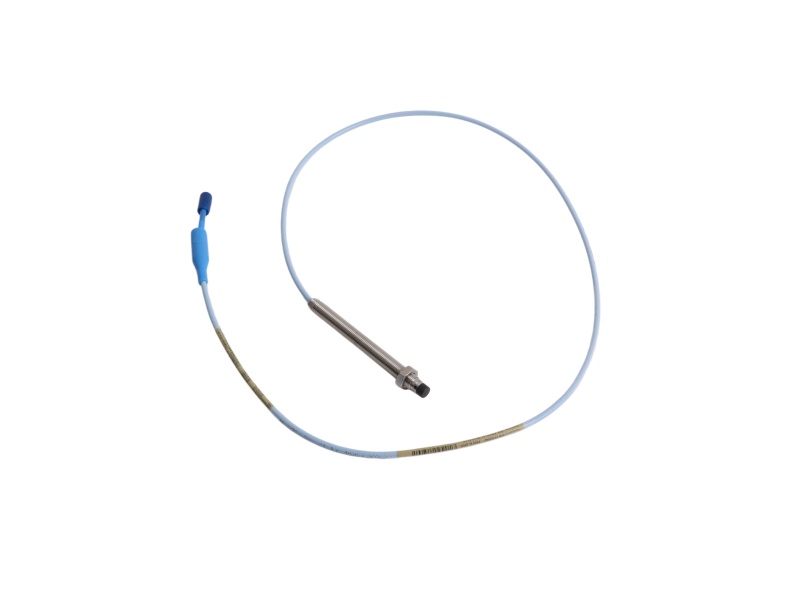

Bently Nevada 330101-01-39-10-01-05 3300 XL 8 mm proximity probe view 2
Bently Nevada 330101-01-39-10-01-05 3300 XL 8 mm proximity probe view 3

Bently Nevada 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe

BENTLY NEVADA 3300 XL SERIES
3300 XL 8 mm Proximity Probe
330101-01-39-10-01-05

Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system.

● Configuration verifiedCSA · ATEX · IECEx
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Bently Nevada (Baker Hughes)
Item number 330101-01-39-10-01-05
Country of Origin United States
Lead Time Contact for current lead time
After-Sales Support One Year Warranty
HS Code / Commodity code 9031809090 (verify with destination customs)
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
BNBENTLY NEVADA
3300 XL SERIES
3300 XL 8 mm Proximity Probe

Standard-mount probe for a complete proximity measurement chain

330101-01-39-10-01-05
Stock status: Ask SalesCSAATEXIECEx
Request QuoteProduct Specifications below
Bently Nevada 330101-01-39-10-01-05 proximity probe
CORE CONFIGURATION
Four details that control mechanical fit
Read before ordering
01 · Mounting
3/8-24 UNF Standard mount
Without armor
02 · Geometry
0.1 / 3.9 in Unthreaded tip
Overall case length
03 · Total length
1.0 m Match the complete
system length
04 · Connector
Protected ClickLoc Miniature coaxial
Standard cable
FUNCTIONAL OVERVIEW
Product role, operating principle and applications
01
Product positioning

330101-01-39-10-01-05 is a standard-mount 3300 XL 8 mm proximity probe intended to form part of a complete eddy-current proximity transducer system.

02
Operating principle

With the matching extension cable and Proximitor Sensor, the system produces a voltage related to the distance between the probe tip and a conductive target.

03
Typical applications

Typical uses include fluid-film bearing machine monitoring, radial vibration, axial position, Keyphasor phase reference and rotational-speed measurement when appropriate.

SYSTEM PERFORMANCE REFERENCE

Values for the complete 3300 XL 8 mm system

Parameter
Value
Linear range
2 mm (80 mil)
Incremental scale factor
7.87 V/mm (200 mV/mil)
Recommended radial-vibration gap
1.27 mm (50 mil)
Standard probe temperature
-52°C to +177°C
Minimum bend radius
25.4 mm (1.0 in)

Reference values apply to a complete 3300 XL 8 mm system under the stated conditions, including -24 Vdc supply, 10 kΩ load and an AISI 4140 steel target.

INSTALLATION HANDOFF
Pre-installation checklist
✓Verify the 3/8-24 UNF port
✓Confirm 3.9 in overall-case clearance
✓Respect the 1.0 in minimum bend radius
✓Match the complete system length
✓Validate CSA / ATEX / IECEx requirements
COMPATIBILITY & REPLACEMENT
Keep the full chain matched
Compatible family
3300 XL 8 mm transducer system
Extension cable family
330130 configurationsSelect for the required total system length.
Proximitor Sensor family
330180 configurationsMatch system length and installation.
Replacement boundary
Do not substitute by appearance alone; verify geometry, connector, total length and approvals.
BUYER FAQ
Frequently asked questions
Select a question to view the answer
01What is the difference between 330101 and 330102?

330101 is the standard-mount, without-armor probe family; 330102 is the corresponding armored probe family. The complete order code still determines dimensions, total length, connector and approvals.

02Can I use any 3300 extension cable?

Use the matching 3300 XL extension cable and Proximitor Sensor selected for the same required total system length.

03What is the recommended gap?

The complete-system radial-vibration reference is approximately 1.27 mm (50 mil), corresponding to about -9 Vdc under the stated conditions.

04Is this configuration discontinued?

Current official family documentation does not explicitly mark this order code as discontinued. Confirm current production and lead time when requesting a quotation.

05Are other mounting and cable versions available?

Yes. The family includes armored, metric, reverse-mount and smooth-case versions, with multiple geometry, cable-length and approval options.

RELATED SYSTEM COMPONENTS

Common product families in the measurement chain

330130-XXXX-XX-XX

3300 XL extension cable family

330180-XX-XX

3300 XL Proximitor Sensor family

3300 Monitoring

Compatible monitoring-system context

✓ One Year Warranty
⚡ Fast Delivery
◆ Technical Support
✓ Integrity Supply
✈ Worldwide Shipping
● 24/7 Service
READY TO CONFIRM THE CONFIGURATION?

Need a quote for 330101-01-39-10-01-05?

Sales Manager May · ab@mooreplc.com · +86-18106909650 (WhatsApp)
