| Manufacturer | Bently Nevada (Baker Hughes) |
| Item number | 330854-040-24-00 |
| Country of Origin | United States |
| Lead Time | Contact for current lead time |
| After-Sales Support | One Year Warranty |
| HS Code / Commodity code | 8544422900 (verify with destination customs) |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

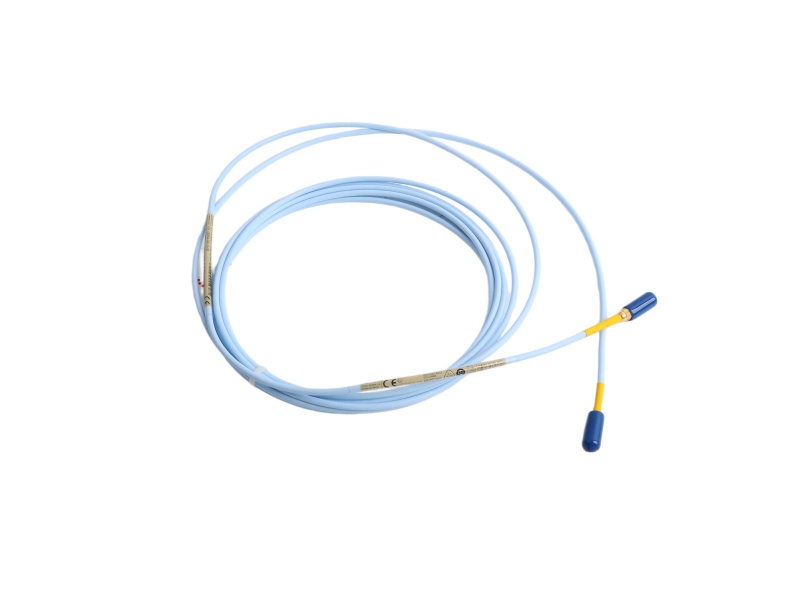

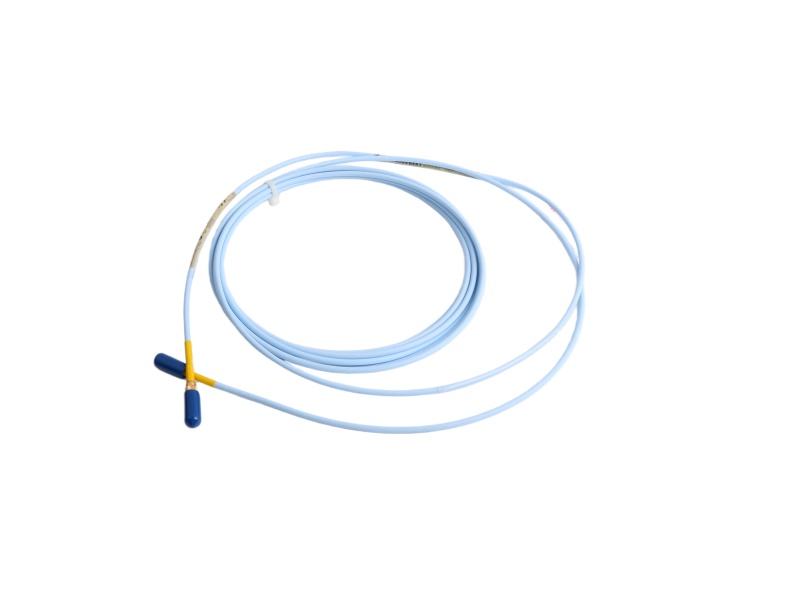

This cable links the 3300 XL 25 mm probe to its matching Proximitor Sensor. Cable length is an electrical system-selection parameter, not simply a routing dimension.
The complete 3300 XL 25 mm system provides a 12.7 mm (500 mil) extended linear range and is intended for turbine supervisory instrumentation, especially differential-expansion measurement on mid-size to large steam turbine generators.
Official specifications apply to the complete probe, extension cable and Proximitor Sensor under the stated reference conditions.
Discontinued? The current official 3300 XL 25 mm datasheet includes the 330854 extension-cable family and this option structure; it does not explicitly identify 330854-040-24-00 as discontinued.
Replacement? Match cable length, armor/cable construction, approvals and the total system length. Do not replace by connector appearance alone.
The probe and extension cable are electrical components of the transducer chain. Their combined length must equal the Proximitor Sensor total-length selection.
No. Option 24 identifies high-temperature FluidLoc cable. Option 25 is the armored high-temperature FluidLoc construction.
The final code 00 specifies no approvals. Confirm the installation requirement before ordering.
No. It is specified as a component of the matched 3300 XL 25 mm proximity transducer system.
Provide the full cable part number, quantity, installed probe code, Proximitor Sensor code and required total system length.
