A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system.
| Manufacturer | Bently Nevada (Baker Hughes) |
| Item number | 330101-37-57-10-02-05 |
| Country of Origin | Confirm from product nameplate or certificate of origin |
| Lead Time | Contact us for current availability |
| After-Sales Support | Documentation and order support |
| HS Code / Commodity code | Confirm for destination before customs declaration |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

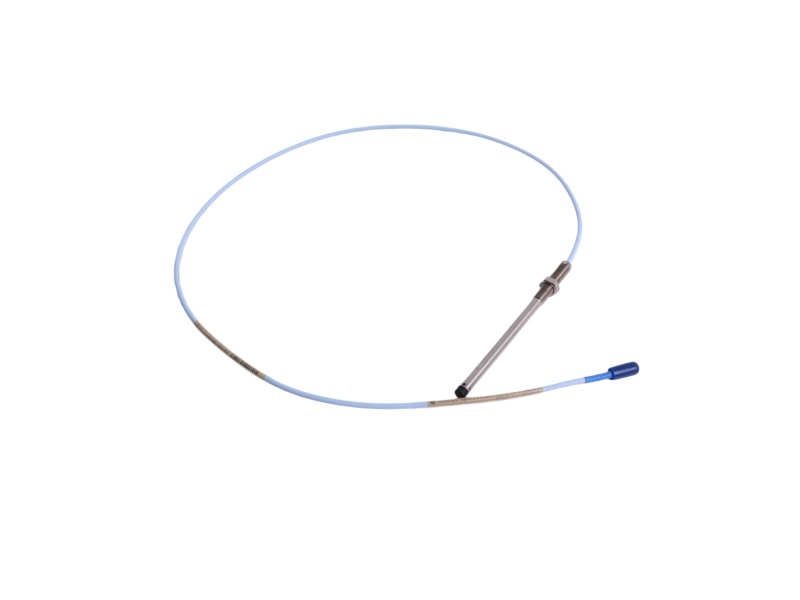

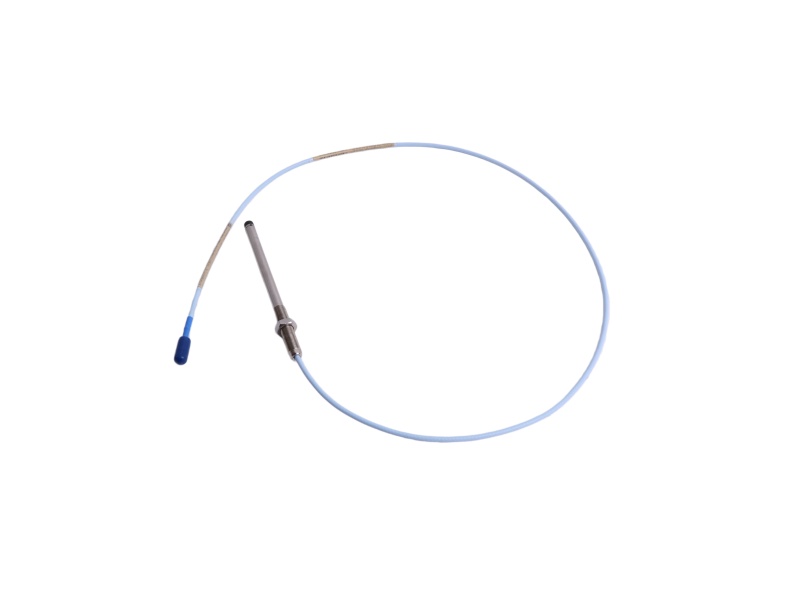

A dimension-led reference for a standard-mount 3300 XL 8 mm probe used as part of a complete eddy-current proximity transducer system.
The 3300 XL 8 mm system consists of a probe, an extension cable and a Proximitor Sensor. In operation, the system produces an output voltage proportional to the distance between the probe tip and a conductive target. This enables both static position and dynamic vibration measurements. Bently Nevada identifies fluid-film bearing machinery, Keyphasor reference and speed measurement among the primary applications for the system.
The 8 mm probe observes the conductive target without physical contact.
Pair the 1.0 m probe lead with the correct 3300 XL extension cable and Proximitor Sensor.
The matched Proximitor Sensor converts probe gap into a voltage suitable for monitoring.
These are complete-system performance references, not isolated probe-only guarantees. The official reference conditions include a complete 3300 XL 8 mm system, -24 Vdc supply, 10 kΩ load and an AISI 4140 steel target.
Choose only when these mechanical dimensions match the mounting position and available clearance.
Do not substitute by model-family name alone; the exposed and overall case dimensions are different.
Unrelated sourcing reference only — these items are not presented as compatible, equivalent or interchangeable with the product above. Verify each brand and model against the applicable manufacturer documentation.
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details
BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details
BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
