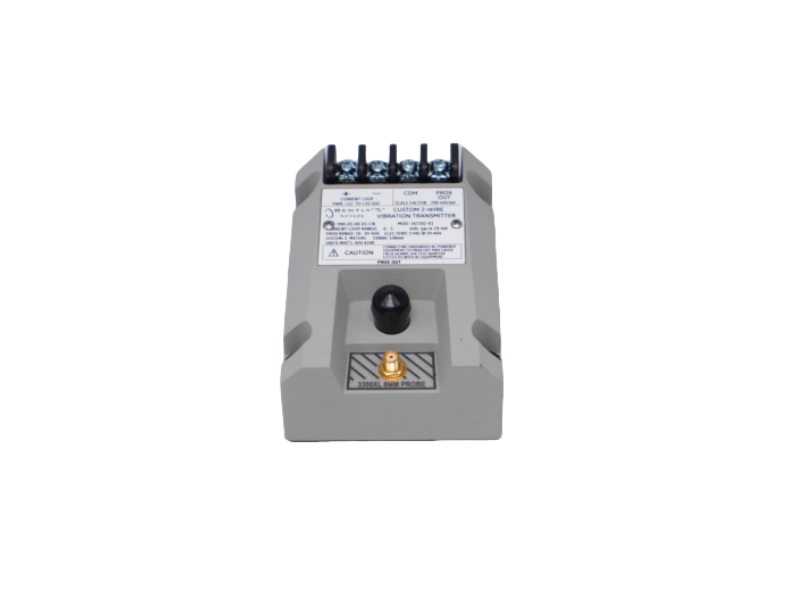

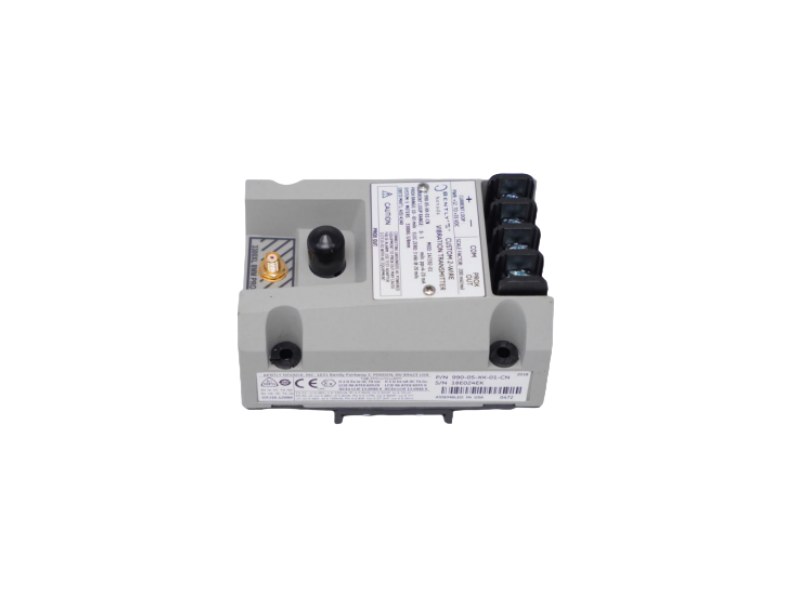

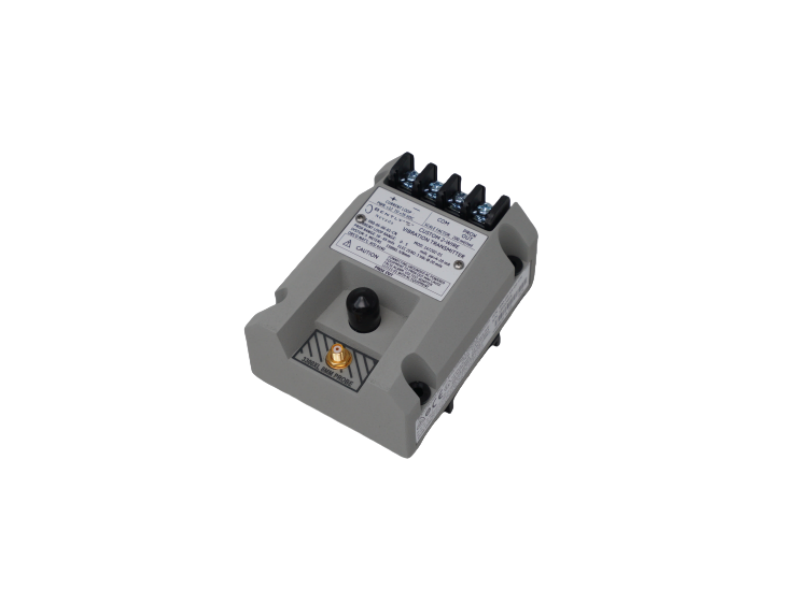

Description:990-05-XX-01-CN — vibration transmitter module converting proximity probe signals into reliable 4–20 mA output for industrial machinery condition monitoring.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 990-05-XX-01-CN |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Bently Nevada 990-05-XX-01-00 (MOD:165335-01) is a classic 2-wire (loop-powered) vibration transmitter that integrates Proximitor technology internally and can be directly connected to non-contact probes (such as 3300 series). Output a standard 4-20mA signal for vibration trend monitoring, alarm systems or process control of PLC/DCS.
|
Item |
Value |
|
Model: |
990-05-XX-01-00 MOD165335-01 |
|
Type: |
2-Wire vibration transmitter (with built-in Proximitor) |
|
Output signal: |
4-20 mA, proportional output vibration amplitude |
|
Power supply voltage: |
12-35 VDC (powered by loop) |
|
Response frequency range: |
approximately 5 Hz - 6,000 Hz (typical) |
|
Compatibility and matching options |
||
|
Ø Type |
Ø Common model |
Ø application description |
|
Non-contact eddy current probe |
3300 XL 8 mm、3300 NSv |
It is used for displacement, clearance and eddy current vibration detection |
|
Extension cable |
330130 - xxxx - xx |
Used for extending the probe to the transmitter |
|
Diagnostic tools |
3500/22M, oscilloscope, FFT analyzer |
Used for dynamic signal analysis and in-depth diagnosis |
Why Choose Us
--Fast Delivery
In-stock products are shipped within 1–2 business days.
--Extensive Experience
With over 10 years of industry expertise, we understand your automation needs.
--Large Inventory
Thousands of parts in stock, covering multiple brands and overseas warehouses for global distribution.
--Quality Assurance
Every product is clearly inspected and backed by a 1-year warranty for guaranteed reliability.
What happens next?
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details
BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details
BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
