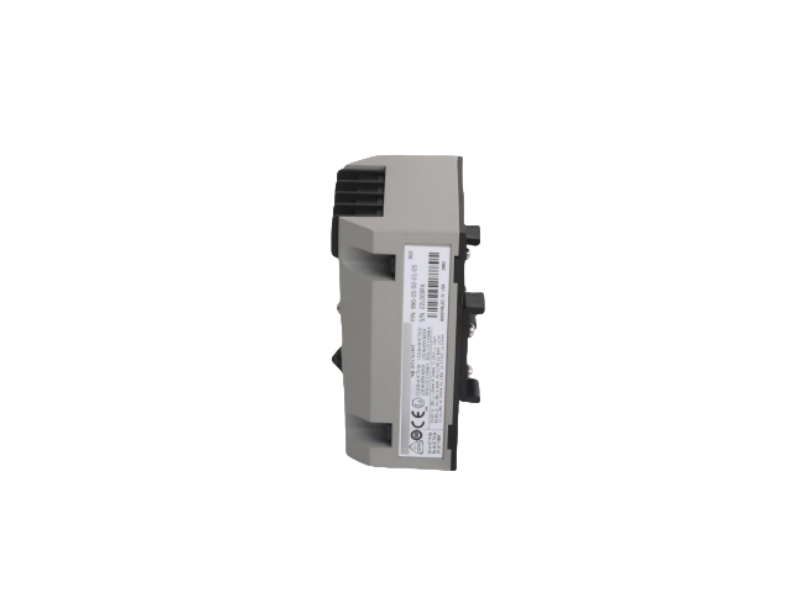

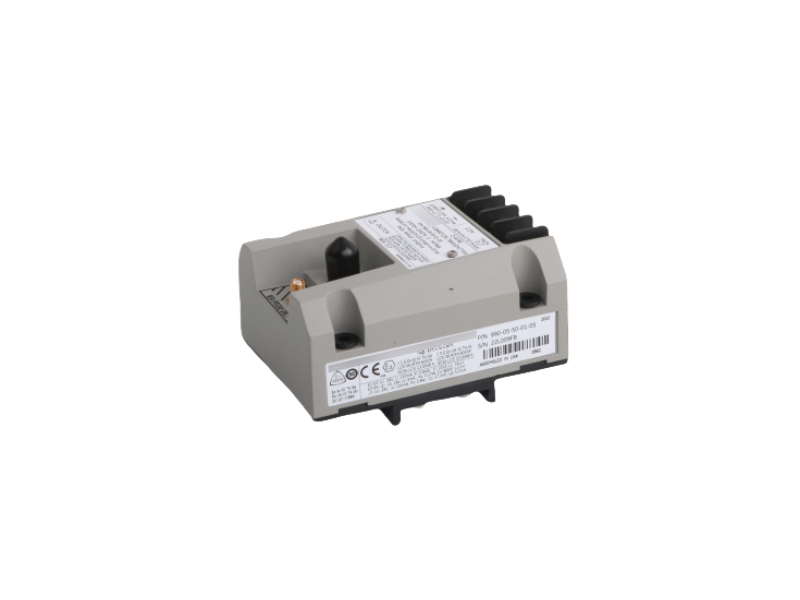

Description:990-05-50-01-05 — 990 series proximity probe system for precise shaft vibration and displacement measurement in industrial machinery monitoring applications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 990-05-50-01-05 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
990-05-50-01-05 belongs to the Bently Nevada 990 series Proximity Probe system. When used with 3300 NSv proximity sensors, it can convert mechanical vibration and axial displacement signals into standard 4-20 mA output. Realize the vibration monitoring and alarm functions of PLC/DCS or monitoring systems.
Vibration monitoring of small pumps, motors, fans and other rotating machinery
Condition monitoring of industrial equipment such as power plants, petrochemicals, papermaking and water treatment
Monitoring of explosion-proof or maritime environmental mechanical equipment
OEM equipment vibration monitoring integration
|
Parameter |
Value |
|
Model (PN) : |
990-05-50-01-05 |
|
Product type: |
3300 NSv Proximity Probes |
|
Model Range： |
Standard 990-05-50-01-05 |
|
Full Scale： |
0–5 mils pp (0–125 μm pp) |
|
System Length： |
5.0 meters (16.4 feet) |
|
Mounting Method： |
35 mm DIN rail clips |
|
Certifications / Approvals： |
CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS maritime approval |
|
Compatible Modules & Accessories |
|
|
Module/Accessory |
description |
|
Proximity Probe |
The 3300 NSv series is recommended |
|
Extension Cable |
It is used in conjunction with a 5.0-meter system length |
|
Mounting Accessories |
35mm DIN rail clamp, Bulkhead screws are optional |
