Description:84661‑8 — armored, shielded interconnect / probe cable for Bently Nevada vibration/velocity monitoring systems, providing reliable signal transmission from sensors to monitor modules in industrial environments.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 84661-8 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
84661-8|interconnect probe cable
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Product Overview

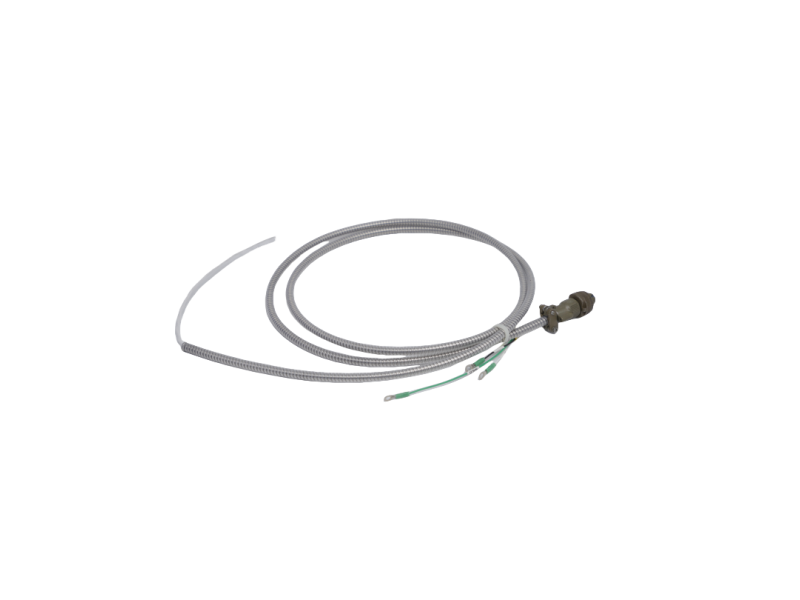

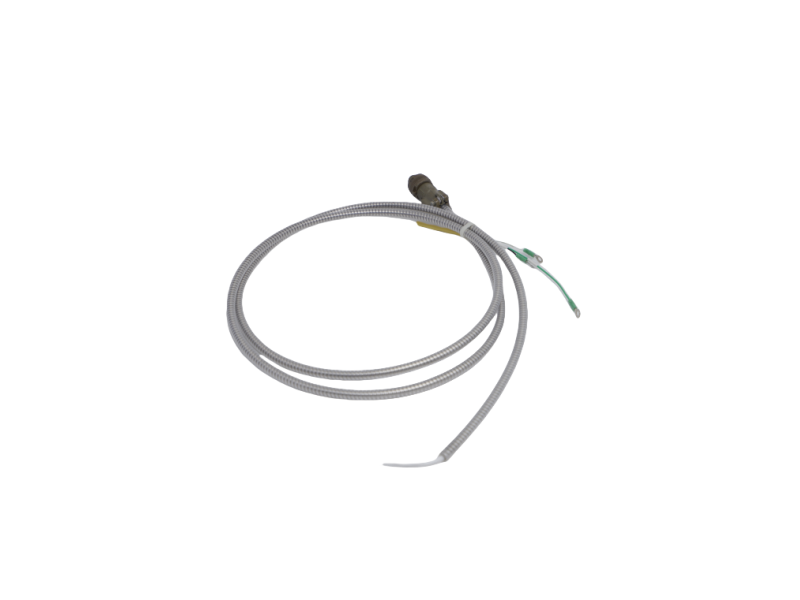

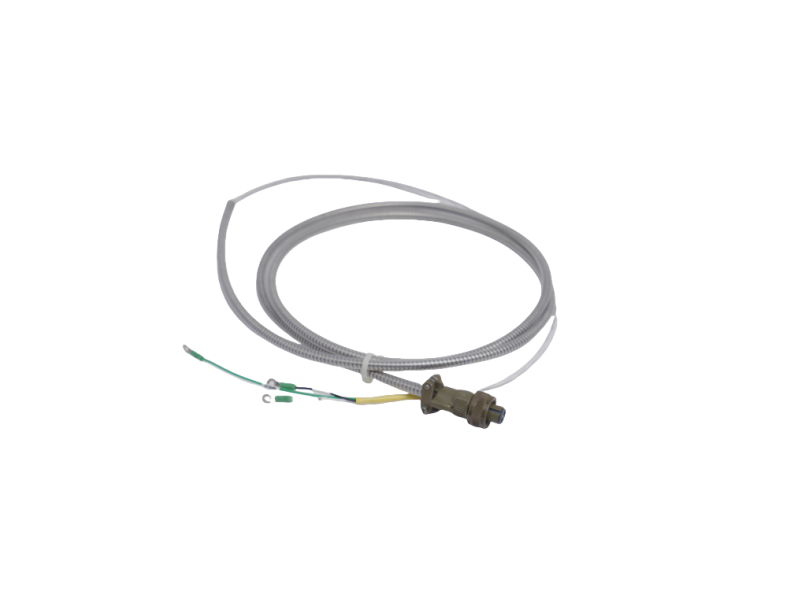

Bently Nevada 84661-8 (or 84661-08) is an interconnect/probe cable used for vibration/rate monitoring systems such as Velomitor/Seismoprobe / 3300 XL, etc "probe cable." This cable undertakes the task of connecting the probe (velocity/vibration sensor) to the host of the monitoring system and is an indispensable and important component in the mechanical condition monitoring system. With high-quality cables and shielding design, it ensures stable data transmission and high signal quality from the probe to the monitoring system, maintaining reliable performance even in harsh industrial environments.
Key Specifications
|
Electrical |
Value |
|
Brand/Manufacturer: |
Bently Nevada |
|
Model/Part Number: |
84661-8 (84661-08) |
|
Product type: |
Interconnect/Probe Cable (for Velomitor / 3300 XL systems) |
|
Compatible systems/Applications: |
Used for connecting Velomitor/Seismoprobe speed/vibration sensors to monitoring systems (such as 3300 XL/monitoring hosts) |
|
conductor specification: |
2-conductor shielded 22 AWG (0.382 mm²) twisted shielded wire with stainless steel armored (armored shielded cable) |
|
connector type: |
One end is moisture-resistant female connector (sensor end), and the other end is terminal/ring-lug |
Application field
84661-8 can be widely applied in the following industrial scenarios/systems:
Power plants/stations - Vibration and condition monitoring systems for equipment such as steam turbines, generators, pumps, and fans
Oil/gas/petrochemical industry - Condition monitoring of rotating machinery such as turbines, compressors, circulating pumps, centrifugal pumps, and compressors
Chemical engineering/Metallurgy/Mining/papermaking/water treatment - any mechanical equipment that requires vibration/shaft vibration/structural vibration monitoring
Factory equipment Maintenance/Predictive maintenance (Predictive Maintenance) system - used for collecting machine vibration data, monitoring anomalies, and preventing faults
Any site using the Bently Nevada system (Velomitor / 3300 XL/Seismoprobe/monitoring host) - as a reliable connection cable between the probe and the host
By using 84661-8, the system can stably obtain signals from vibration/velocity sensors, ensuring the reliability of the monitoring system, reducing false alarms and missed alarms, and enhancing the safety and lifespan of the equipment.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
What happens next?
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details
BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details
BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
Details
