Description:3500/61E 285694-02 — high-density temperature monitor module for precise thermal monitoring and protection in Bently Nevada 3500 series machinery systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/61E 285694-02 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
3500/61E 285694-02 | high-density temperature monitor
PLC Autocontroller| Sales Manager May

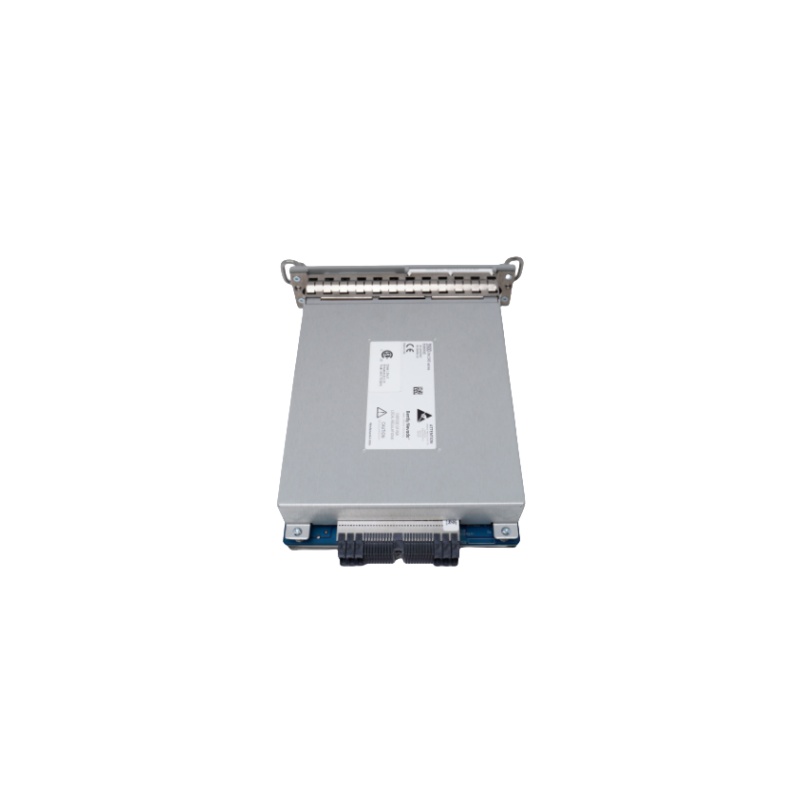

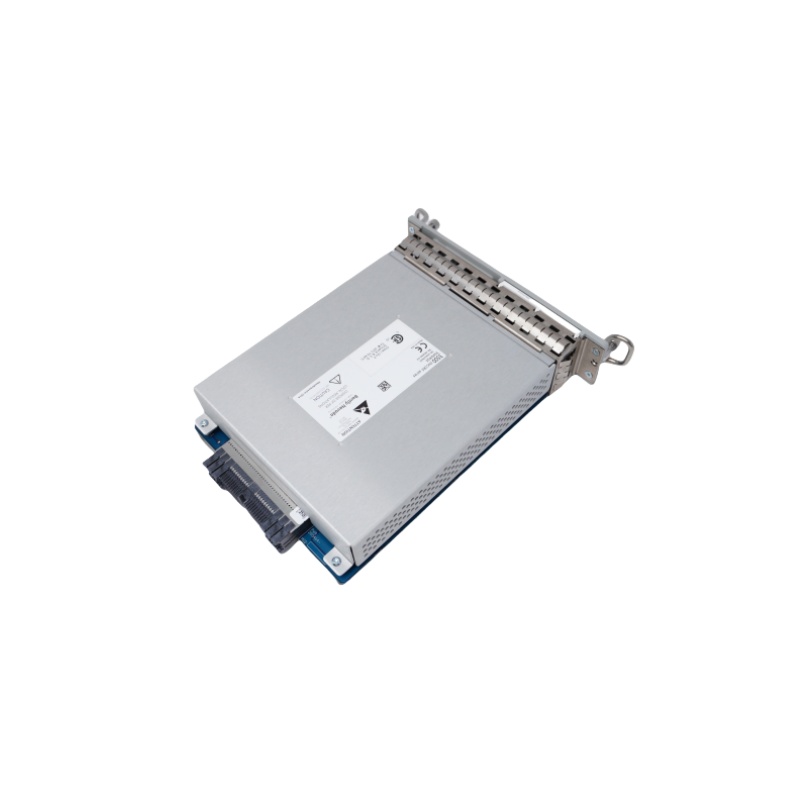

The 3500/61E (assembly 285694-02) is a high-density temperature monitor for the 3500 machinery-protection system.
It delivers six independent, isolated temperature channels that accept any mix of RTD (Pt100, Pt1000, Cu10, Ni120) or thermocouple (J, K, T, E, N, R, S, B) sensors.
Each channel is compared to user-programmable Alert/Danger set-points and drives a buffered 4-20 mA recorder output for DCS/SCADA.
Hot-swappable, SIL 2 capable and ATEX Zone 2 certified, the module is designed for critical temperature surveillance on turbines, compressors, reactors and gearboxes.
Key parameters and specifications
|
Feature |
Value |
|
Part number |
285694-02 (3500/61E) |
|
Channels |
6, galvanically isolated inputs |
|
Sensor types |
RTD: 2-, 3-, 4-wire (Pt100, Pt1000, Cu10, Ni120) |
|
TC: |
J, K, T, E, N, R, S, B |
|
Temperature span |
–200 °C … +850 °C (RTD) / –270 °C … +1 820 °C (TC) |
|
Accuracy |
±1 °C (RTD) / ±2 °C (TC) |
|
Resolution |
0.1 °C |
|
Update / alarm delay |
≤ 100 ms / 0-60 s programmable |
|
Recorder outputs |
6 × 4-20 mA, isolated, fault-protected |
Product advantages
Universal inputs – mix RTD & TC on the same card; automatic sensor break / short detection.
Isolated outputs – 250 V channel-to-channel separation prevents ground-loop errors.
SIL 2 certified – meets IEC 61508 for safety-critical trips when used with 3500/32 relay modules.
Hot-swap – module can be exchanged in < 3 min without shutting down the rack.
Triple Modular Redundant (TMR) ready – install three adjacent cards for dual-voting temperature protection.
Plug-and-play configuration – all scaling, linearisation and alarm logic set through 3500 Rack Configuration Software.
