Description:3500/60 — temperature modules for precise thermal monitoring and machinery protection in Bently Nevada 3500 series systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/60 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
3500/60 |temperature-monitoring
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Product Overview

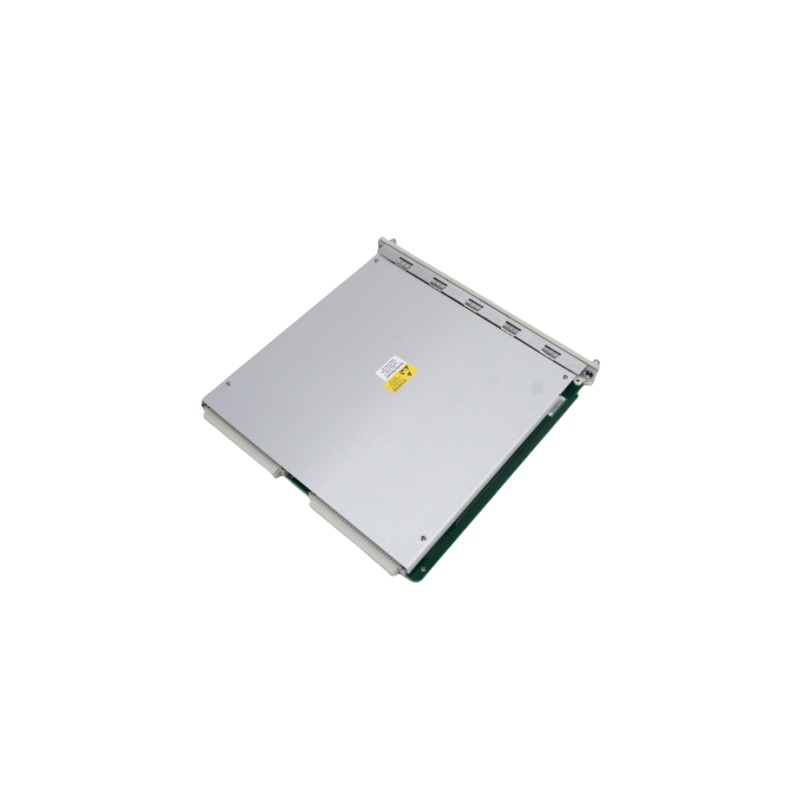

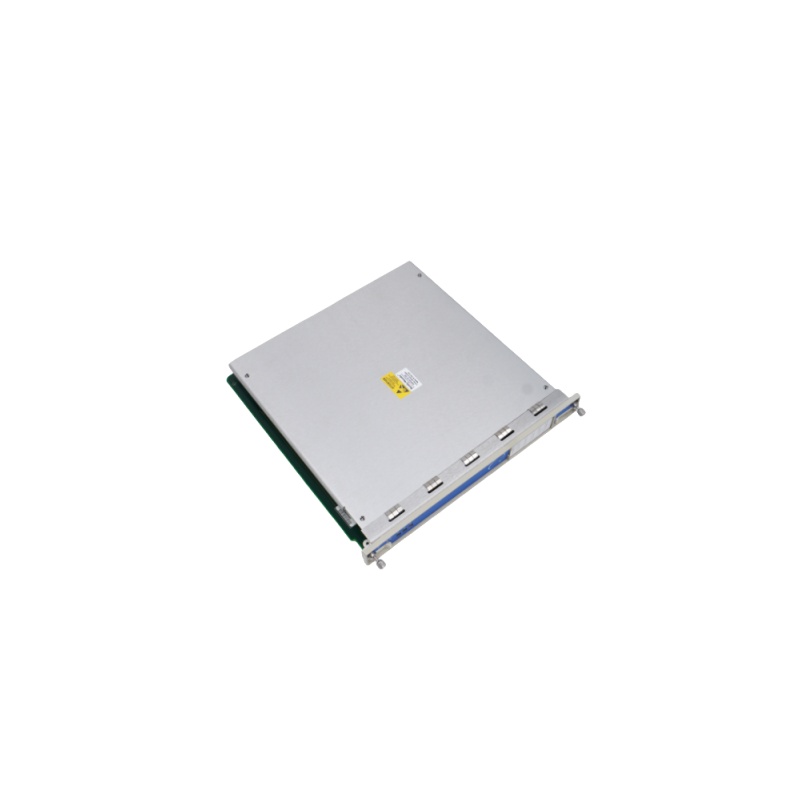

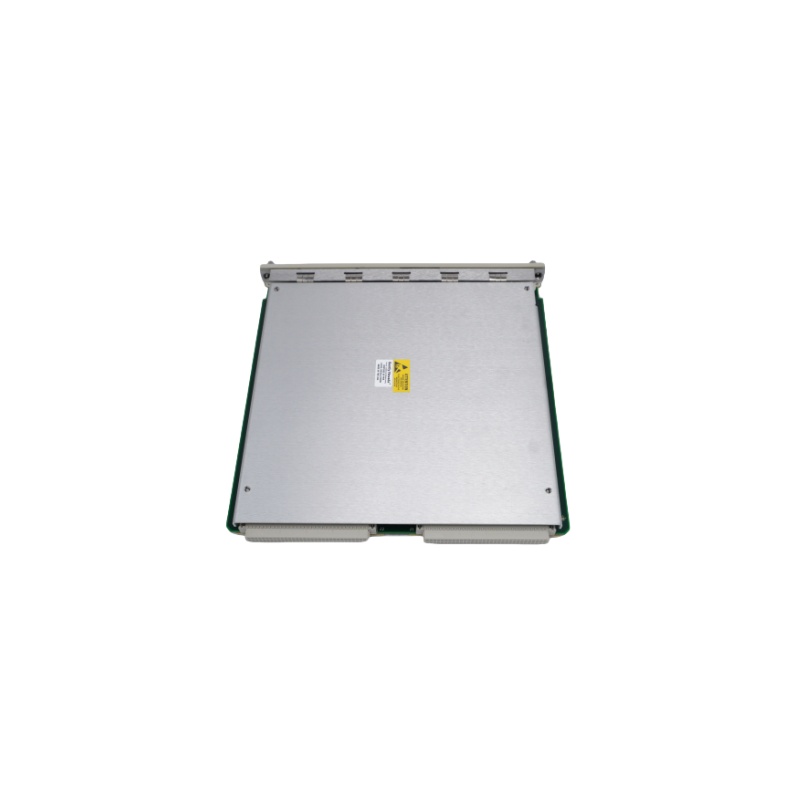

3500/60 is the temperature-monitoring blade of the 3500 rack.
One slot gives you six universal temperature channels that accept any mix of RTD (2-, 3-, 4-wire Pt100, Pt1000, Cu10, Ni120) or thermocouples (J, K, T, E, N, R, S, B).
The card compares live readings to user-programmable Alert/Danger set-points and drives rack relays, buffered outputs and the plant DCS/SCADA through the 3500 back-plane.
Key Specifications
|
Feature |
Value |
|
Channels |
6, fully independent |
|
Sensor types |
RTD: Pt100, Pt1000, Cu10, Ni120 |
|
TC: |
J, K, T, E, N, R, S, B (on-board CJC) |
|
Temperature span |
–200 °C … +850 °C (RTD) / –270 °C … +1 820 °C (TC) |
|
Accuracy |
±0.5 % of reading (±1 °C typical RTD) |
|
Resolution |
0.1 °C |
|
Update / alarm delay |
≤ 1 s (delay 0-60 s programmable) |
|
Recorder outputs |
None (order 3500/61 if 4-20 mA required) |
|
Isolation |
Depends on rear I/O module chosen |
|
Rack power |
24 V dc from 3500/15 supply |
|
Power demand |
4 W typical, 7 W max |
Why use it
Single-slot density – six channels replace up to six standalone transmitters.
Universal inputs – mix RTD & TC on the same card; auto-detects wire-break / short.
Zone 2 certified – install in Ex nA IIC T4 Gc areas when paired with appropriate rear I/O.
Hot-swap – front module replaced in < 2 min without shutting down the rack.
TMR ready – drop three cards side-by-side for dual-voting SIL 2 loops.
Native 3500 integration – alarms, trends and events automatically available in System 1®.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
