Description:3500/60 133811-01 — temperature module for reliable thermal monitoring and protection in Bently Nevada 3500 series machinery systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/60 133811-01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller – 20-year spare-part express

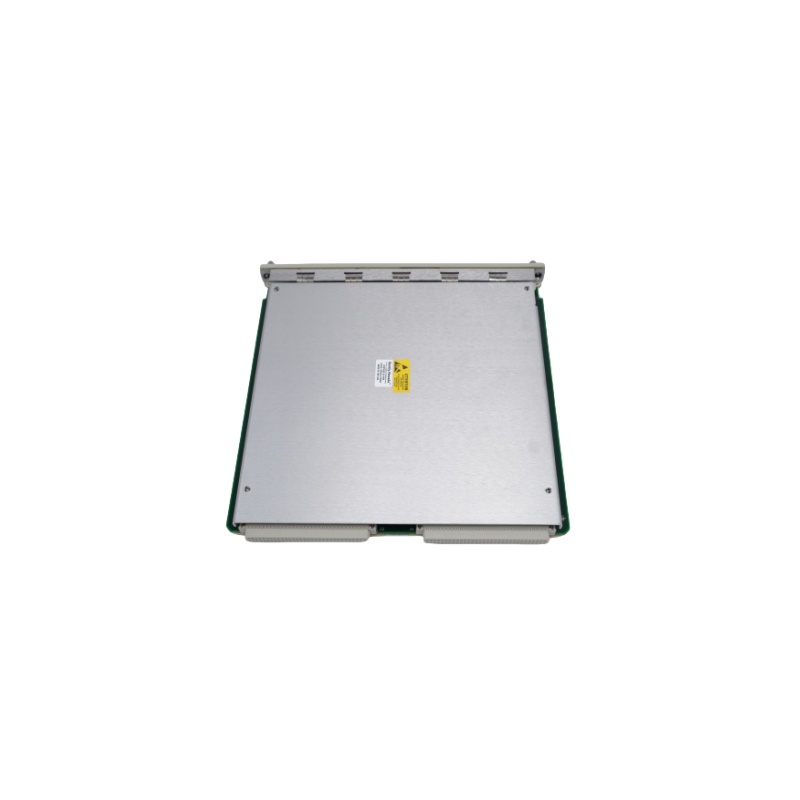

Bently nevada |3500/60 133811-01 | Temperature Modules
Product Overview
133811-01 is the front monitor of the 3500/60 temperature-protection suite.
Plugged into a single 3500 rack slot, it conditions six independent RTD or thermocouple inputs, compares each to programmable Alert/Danger set-points and reports status across the back-plane to rack relays, displays and DCS/SCADA.
The card is hot-swappable, SIL 2 capable and approved for Zone 2 hazardous areas, making it the work-horse for bearing-metal, winding, exhaust or process-temperature protection on turbines, compressors, pumps, motors and gear-boxes.
Key Specifications
|
Feature |
Value |
|
Part number |
133811-01 (3500/60) |
|
Channels |
6, universal per channel |
|
Sensor types |
RTD: 2-, 3-, 4-wire Pt100, Pt1000, Cu10, Ni120 |
|
Temperature span |
–200 °C … +850 °C (RTD) / –270 °C … +1 820 °C (TC) |
|
Accuracy |
±0.5 % of reading (±1 °C RTD typical) |
|
Resolution |
0.1 °C |
|
Update / response |
≤ 1 s (alarm delay 0-60 s prog.) |
|
Alarm set-points |
2 Alert + 2 Danger per channel, latching option |
Key Advantages
Cost-optimised – no recorder outputs, perfect when temperature is used only for protection / indication.
Universal inputs – software-select RTD or TC per channel; auto-detects wire-break / short.
Zone 2 certified – can be installed in Ex nA IIC T4 Gc areas without extra isolators when paired with appropriate rear I/O.
Hot-swap – replace in < 2 min without rack shutdown.
TMR ready – install three cards side-by-side for dual-voting SIL 2 loops.
Full 3500 integration – alarms, trends and events automatically available in System 1® software.
