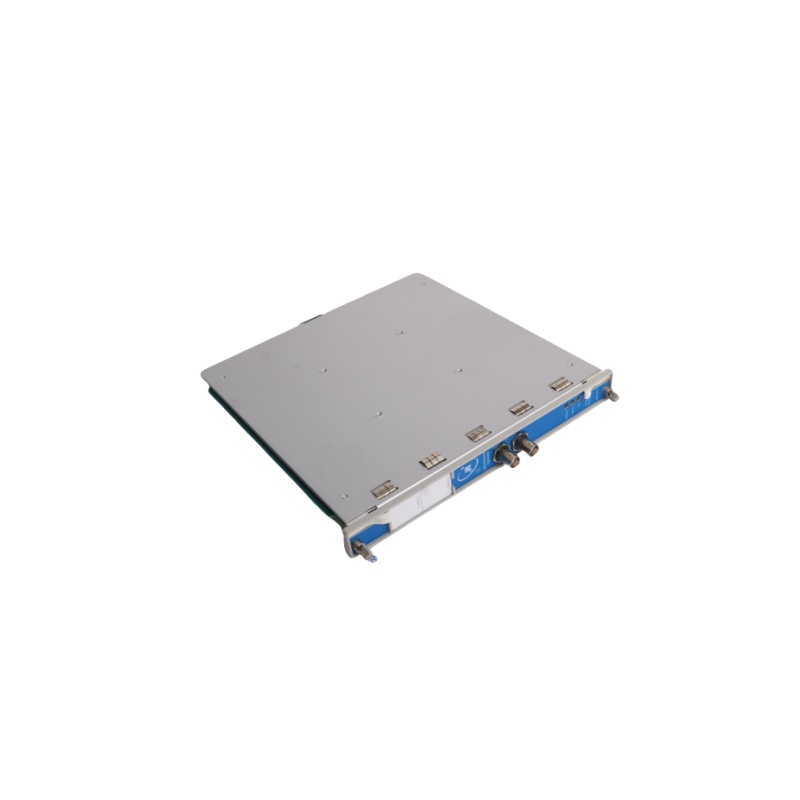

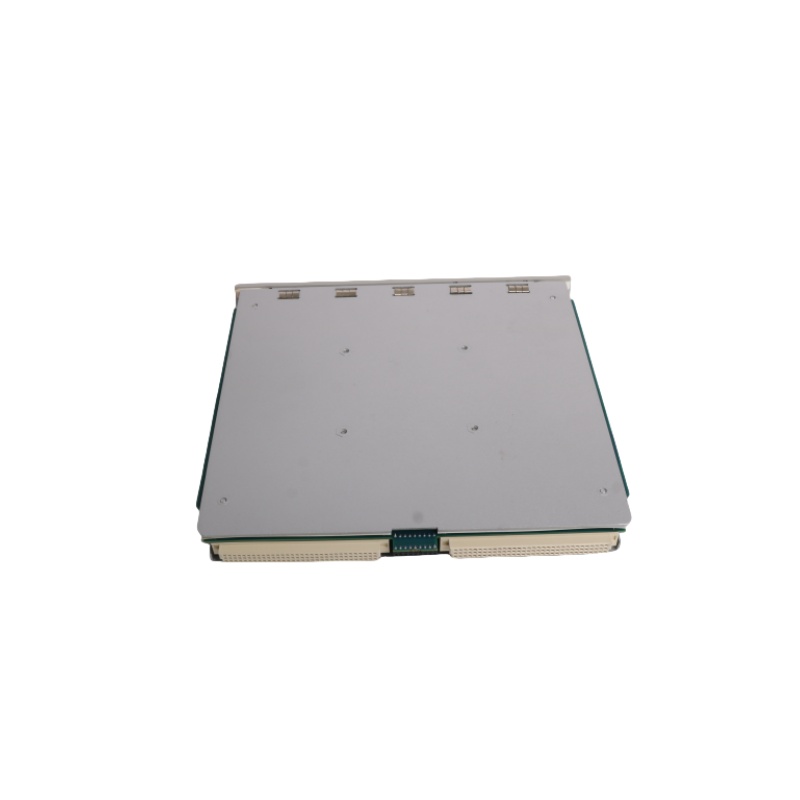

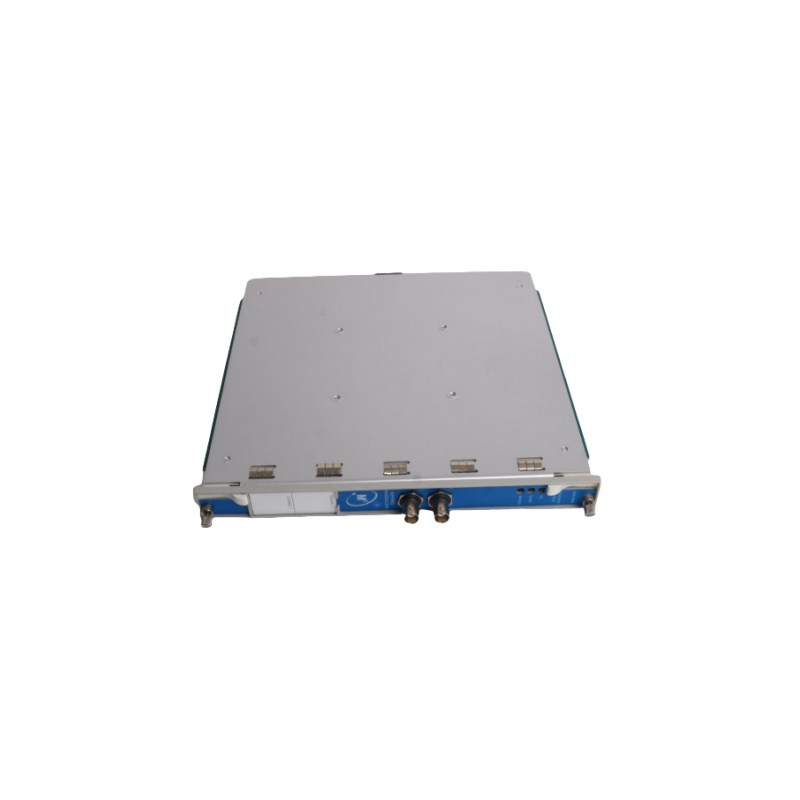

Description:3500/50M 286566-02 — M-series front card for monitoring interface and signal processing in Bently Nevada 3500 series machinery protection systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/50M 286566-02 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller|20 Years of Excellence in Industrial Automation Parts Supply
3500/50M 286566-02 | M-series front card
Sales Manager May
E-mail: ab@mooreplc.com
Phone: +86-18106909650 (whatsapp)
Wechat id: dcsfcs
286566-02 is the M-series front card of the 3500/50 tachometer suite.
Two independent channels accept proximity-probe or magnetic-pick-up signals to deliver:
shaft speed (1 – 50 000 rpm, ±0.1 %)
rotor acceleration / deceleration
zero-speed & reverse-rotation detection
conditioned Keyphasor® pulse to the 3500 back-plane
The card is not intended as a primary overspeed-protection device; for API-612 redundant trip use 3500/53 instead.
Key Specifications
|
Parameter |
Value |
|
Part number |
286566-02 (3500/50M) |
|
Channels |
2, fully isolated |
|
Sensor types |
Eddy-current probe, MPU, Hall |
|
Speed range |
1 – 50 000 rpm |
|
Accuracy |
±0.1 % of reading |
|
Freq. response |
0.0039 Hz – 25 kHz |
|
Update time |
10 ms (speed) / 1 ms (alarm) |
|
Alarm set-points |
4 per channel (LL-L-H-HH) |
|
Delay |
0.1 – 60 s programmable |
|
Peak-hold |
Max speed, max reverse, # reversals |
|
PLC Autocontroller Global support for industrial automation parts |
|||
|
Foxboro |
GE |
Siemens |
Moore |
|
Emerson |
Ovation |
Bently Nevada |
ABB |
|
ICS |
TRICONEX |
Honeywell |
Westinghouse |
|
Epro |
Yokogawa |
Allen-bradley |
Schneider |
|
HIMA |
Woodhead |
Woodward |
ENTEK |
Typical applications
|
Industry |
Machine |
Typical set-points |
|
Power |
Steam / gas turbines |
3 000 rpm rated, 3 300 rpm alarm |
|
Oil & gas |
Centrifugal compressors |
12 000 rpm, 12 600 rpm alarm |
|
Steel |
Mill drives |
0 rpm lock-out, reverse rotation |
|
Chemical |
Pumps / fans |
1 800 rpm, 1 980 rpm alarm |
|
Test rigs |
Turbo-chargers |
60 000 rpm, acceleration 500 rpm/s |
All PLC Autocontroller products are brand new and 100% original. Please contact us for pricing.
