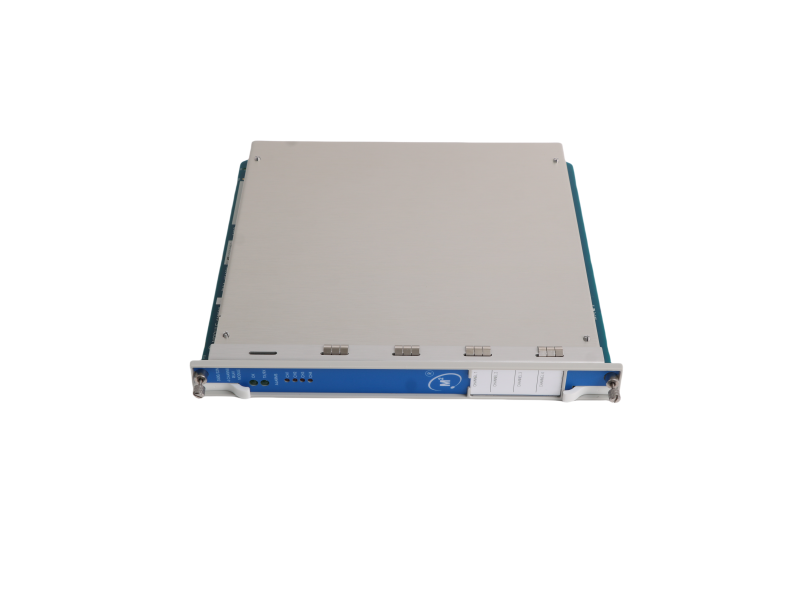

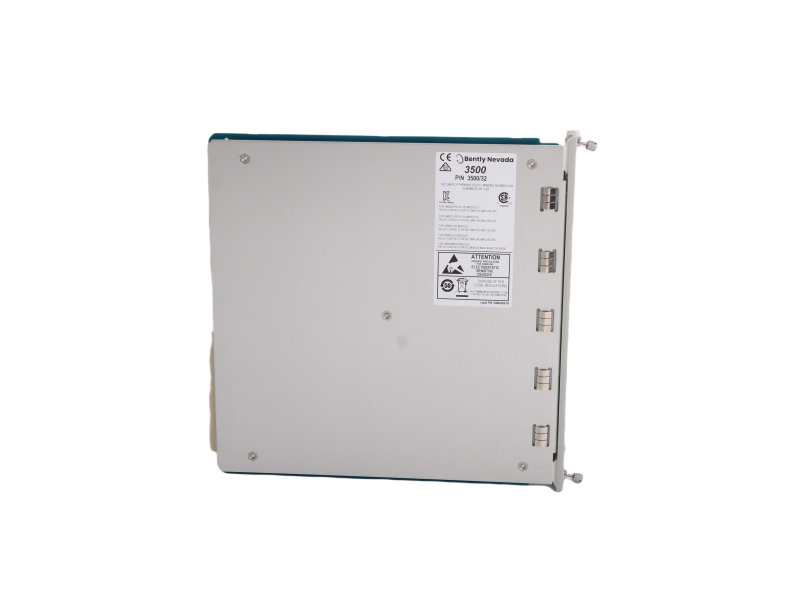

Description:3500/32M is a 16-channel monitoring module for machinery protection
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/32M |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Form & Compatibility
• Part Number: 3500/32M (M = “Modbus” firmware)
• Slots: One full-height slot in any 3500 rack (RIM or TDI required for communication)
• Agency Approvals: CE, ATEX Zone 2, IECEx, CSA Class I Div 2, SIL 2 capable per IEC 61508
Channel Architecture
• Channels: 4 independent SPDT relays (Form-C)
• Contact Rating: 5 A @ 30 Vdc / 250 Vac resistive
• Pick-up Time: < 10 ms (coil energize)
• Drop-out Time: < 8 ms (coil de-energize)
• Isolation: 600 V channel-to-channel and channel-to-ground
Configuration & Logic
• Software: 3500 Rack Configuration Software v5.0 or later
• Relay Logic: AND/OR of any proportional or discrete values from monitors in the same rack
• Defaults: Two relays configured to “Trip Multiply” and two to “Danger” per API 670 guidelines
Front-Panel Interface
• LEDs: OK, TX/RX (Modbus), individual Relay Status (4×)
• Programmable Reset: Front-panel push-button or remote reset via Modbus coil 0100h
• Keylock Switch: Prevents accidental configuration changes without removing the module
Power & Environment
• Supply: 24 Vdc ±10 % from rack backplane (typ 3.5 W)
• Operating Temp: –30 °C to +65 °C (–22 °F to +149 °F)
• Humidity: 5 %–95 % non-condensing
• Shock: 10 g half-sine, 11 ms per IEC 60068-2-27
• Vibration: 2 g, 10–500 Hz per IEC 60068-2-6
Ordering & Stock
PLC Autocontroller keeps the 3500/32M (PN 149986-01) in bonded inventory for same-day shipment.
Optional accessories include the 149992-01 labeled terminal block and the 3500/05 Mini-Rack pre-wired for FAT testing.
Contact our experienced team for pricing or more details.
