| Manufacturer | Bently Nevada (Baker Hughes) |
| Item number | 330980-71-BR |
| Country of Origin | See product nameplate / COO certificate |
| Lead Time | Contact May for availability |
| After-Sales Support | Sales Manager May |
| HS Code / Commodity code | Confirm before customs declaration |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

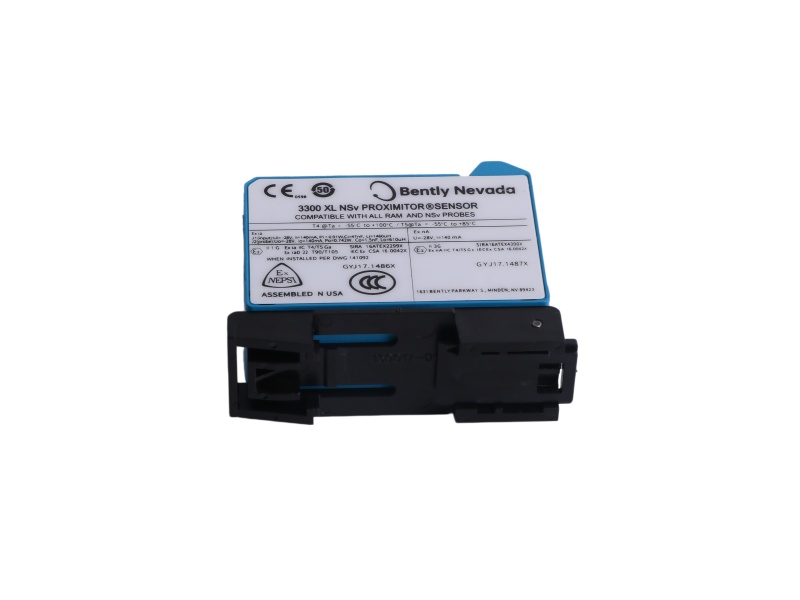

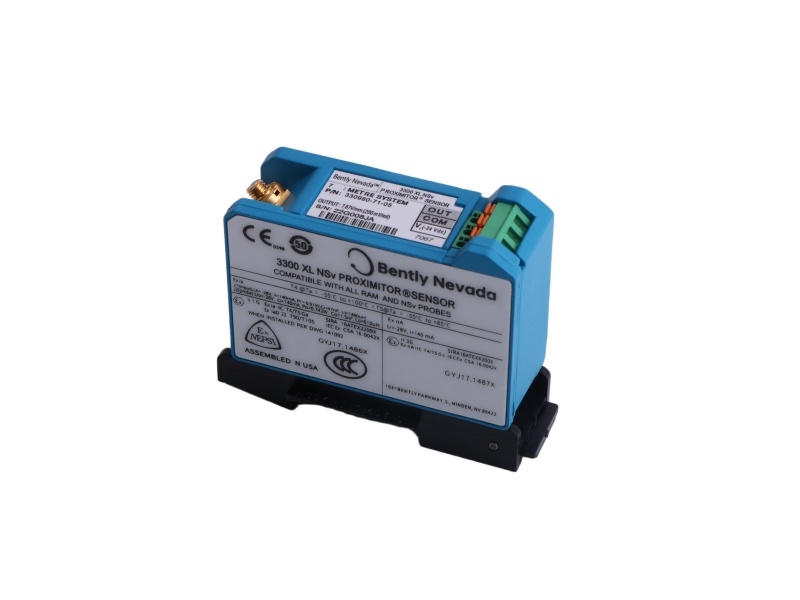

3300 XL NSv Proximitor Sensor for a 7.0 m transducer system with DIN-rail mounting. It accepts one compatible 3300 RAM or 3300 NSv proximity probe and extension cable.
The thin Proximitor Sensor housing supports high-density DIN-rail layouts where panel space is limited.
Improved immunity helps prevent nearby high-frequency radio signals from adversely affecting the transducer system.
SpringLoc terminal strips require no special installation tools and support robust field wiring connections.
System length: Probe length plus extension cable length must equal 7.0 m.
Power: Verify the correct supply range for installations with or without barriers.
Field cable: Use a three-conductor shielded triad cable.
Handling: Apply reasonable electrostatic-discharge precautions at terminals and connectors.
3300 NSv probes and extension cables are mechanically and electrically compatible with previous 3300 RAM probe and cable components.
A 3300 RAM system upgrade may retain its existing probe, extension cable, and monitor while using the 3300 XL NSv Proximitor Sensor.
Upgrading from a 3000-series or 7000-series 190 system requires replacement of the probe, extension cable, and Proximitor Sensor with NSv components.
A flat target should be at least 8.9 mm in diameter; 13 mm is the recommended minimum.
Maintain at least 25 mm between probe tips for axial measurements or 23 mm for radial measurements.
Radial vibration on small shafts, axial position on small flat targets, tachometer and zero-speed measurements, and phase-reference Keyphasor signals. Typical tight-clearance machinery includes centrifugal air compressors, refrigeration compressors, and process gas compressors.
