| Manufacturer | Bently Nevada (Baker Hughes) |
| Item number | 330930-065-04-BR |
| Country of Origin | See product nameplate or COO certificate |
| Lead Time | Contact May for availability |
| After-Sales Support | Sales Manager May |
| HS Code / Commodity code | Confirm before customs declaration |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

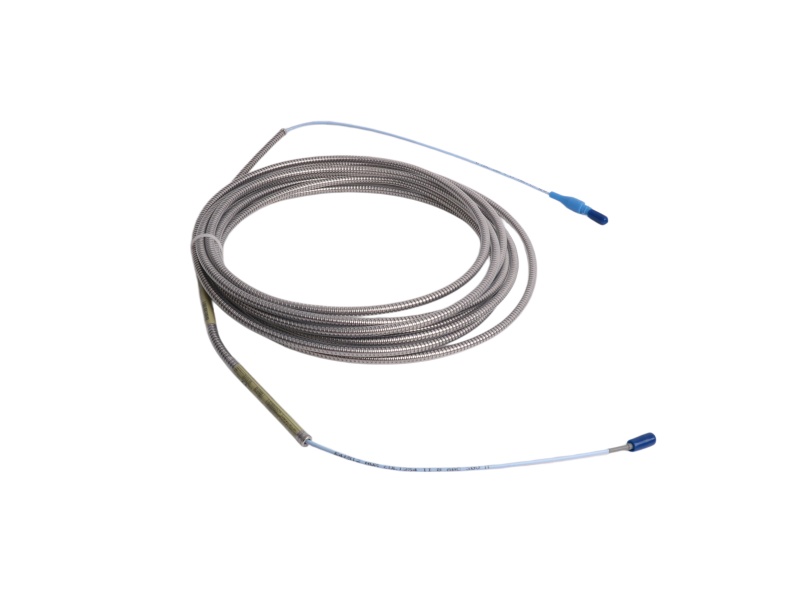

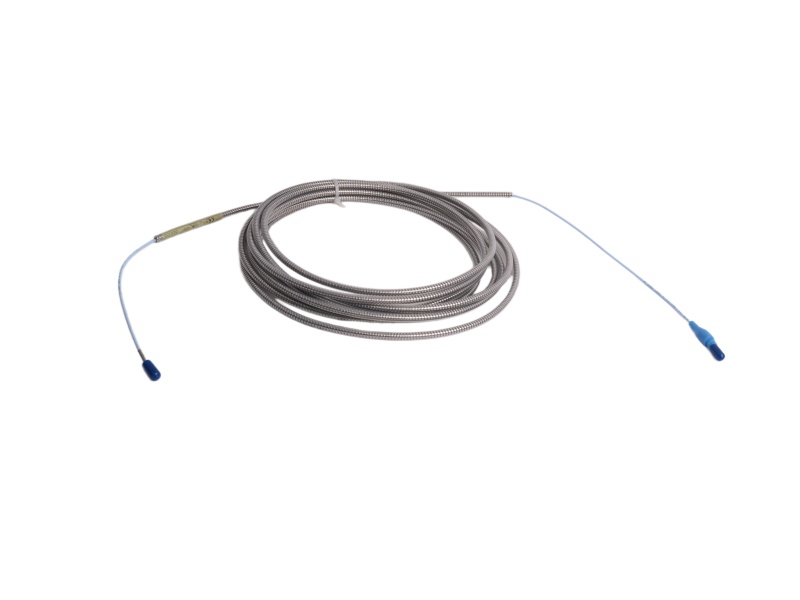

A 6.5 m extension cable for the 3300 XL NSv proximity transducer system, configured with stainless-steel armor, an FEP jacket and connector protection.
The cable is an electrical-length component between an NSv probe and its matching Proximitor Sensor.
Bently Nevada specifies that the extension-cable length and probe length must add up to the total length of the selected Proximitor Sensor.
Designed as the extension-cable link in the 3300 XL NSv transducer chain.
Stainless-steel armor provides mechanical protection along the cable run.
FEP jacket covers the armored construction for environmental separation.
Connector protector is included with option 04.
The complete NSv system combines a probe, an extension cable and a Proximitor Sensor. System output is proportional to probe-tip distance from the observed conductive surface.
Official applications for the NSv system include radial vibration on small shafts, axial position on small flat targets, and tachometer, zero-speed and Keyphasor measurements.
Our supply scope extends across control, power, networking and machinery-monitoring brands. The references below provide a concise view of additional brand and model coverage available for quotation.
Product identity and option interpretation follow the official 3300 XL NSv Proximity Transducer System datasheet 147385 Rev. R and the official approvals quick reference.
NSv CONFIGURATION PASSPORT 330901-11-43-10-02-05 A 3300 NSv narrow-side-view proximity probe configured for tight-clearance machinery monitoring and small-target measurement. CONFIGURATION AT A GLANCE Thread: 1/4-28 UNFConstruction: Without armorProbe length: 1.0 mConnector: ClickLoc, standard cableApproval: Multiple Approvals Sales Manager May Configuration and quotation support E-mail: ab@mooreplc.comPhone / WhatsApp: +86-18106909650
Details
BENTLY NEVADA / 3300 XL NSv PROXIMITOR SENSOR CONFIGURATION DOSSIER 330980-71-BR A compact signal-conditioning interface configured for a 7.0 m proximity transducer system and DIN-rail installation. Designed for the 3300 XL NSv measurement chain SYSTEM LENGTH7.0 m MOUNTINGDIN rail OUTPUT RESISTANCE50 ohm Sales Manager May ab@mooreplc.com WhatsApp: +86-18106909650
Details
ROUTE ID 8 mm 3300 XL proximity probe METRIC ARMORED PROBE 330104-01-08-05-11-05 M10 × 1 armored probe with a 10 mm unthreaded section, 80 mm case and 0.5 m FluidLoc lead. The detailed order-code map appears once in the engineering record below. SYSTEM ROLE Position · vibration · reference CABLE OPTION FluidLoc with protector CONTACT ab@mooreplc.com
Details
3300 XL NSv FAMILY CABLE ROLE IN THE MEASUREMENT CHAIN The protected link between probe and signal conditioner Built for the 3300 XL NSv family, this extension cable carries the probe connection toward the matching Proximitor Sensor while supporting an orderly protected cable route. FAMILY POSITION NSv Probe Extension Cable NSv Proximitor Sensor SYSTEM FAMILY 3300 XL NSv COMPONENT ROLE Protected cable connection REQUEST A QUOTE ab@mooreplc.com
Details
3300 XL / 25 MM DE Differential expansion measurement probe FIELD CONFIGURATION ENGINEERED FOR TURBINE EXPANSION MONITORING 330851-02-000-050-10-00-05 Metric M30×2 probe for the 3300 XL 25 mm system, configured with a 50 mm case, 1.0 m lead and multiple approvals. RANGE12.7 mm SCALE0.787 V/mm CASEM30×2 LEAD1.0 m Probe + cable + ProximitorComplete matched measurement chain E-mail May
Details
3300 XL 25 MM PROXIMITY PROBE 330851-02-000-050-90-00-05 9.0 m metric probe for steam-turbine differential expansion measurement. RANGE12.7 mm SCALE0.787 V/mm THREADM30×2 LEAD9.0 m No armor · Multiple approvalsab@mooreplc.com SELECTION CHECK MeasurementDifferential expansion Sensor330850 / 9.0 m TargetAISI 4140 SystemMatch total length TURBINE SUPERVISORY INSTRUMENTATION
Details
◉25 MM / SIDE EXITMULTIPLE APPROVALS 330851-04-000-015-10-01-05 Smooth 1.06 in side-exit probe with a 1.5 in case, 1.0 m total length and stainless-steel armor. RANGE12.7 mm SCALE0.787 V/mm CASE1.06 in LEAD1.0 m 3300 XL 25 mm measurement chainab@mooreplc.com ◈SELECTION SNAPSHOT MEASUREMENTDifferential expansion CONSTRUCTIONSide exit · SST armor APPROVALSMultiple approvals
Details
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
