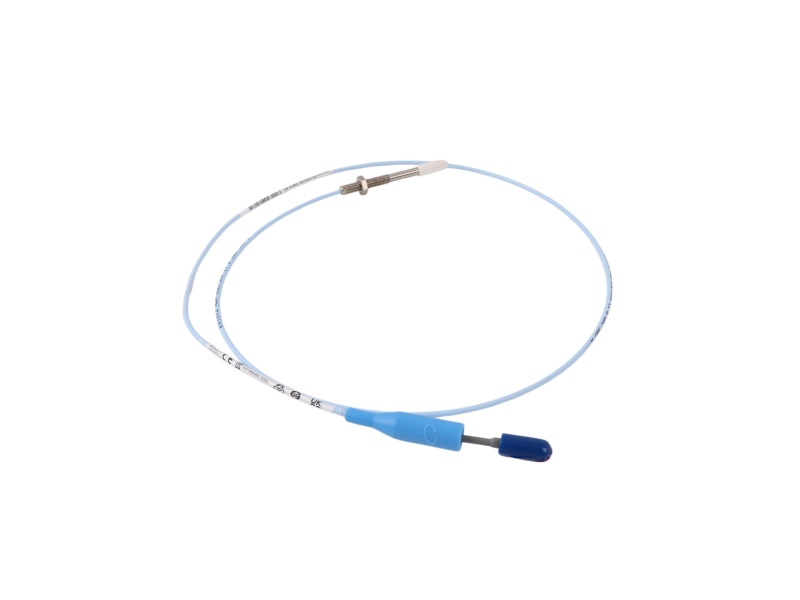

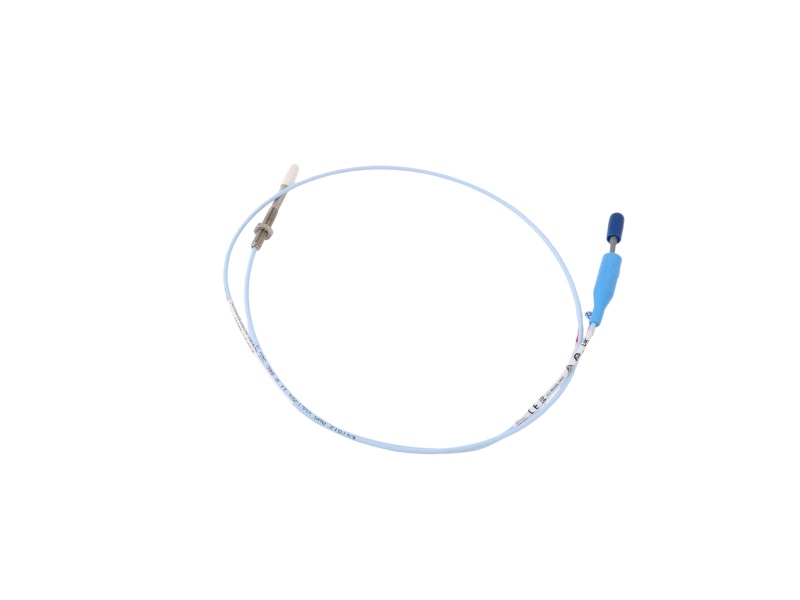

Bently Nevada 330901-11-43-10-02-05 3300 NSv Proximity Probe

NSv CONFIGURATION PASSPORT

330901-11-43-10-02-05

A 3300 NSv narrow-side-view proximity probe configured for tight-clearance machinery monitoring and small-target measurement.

CONFIGURATION AT A GLANCE

Thread: 1/4-28 UNF
Construction: Without armor
Probe length: 1.0 m
Connector: ClickLoc, standard cable
Approval: Multiple Approvals

Sales Manager May
Configuration and quotation support
E-mail: ab@mooreplc.com
Phone / WhatsApp: +86-18106909650
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Bently Nevada (Baker Hughes)
Item number 330901-11-43-10-02-05
Country of Origin Confirm from product nameplate
Lead Time Confirmed in formal quotation
After-Sales Support Documentation and order support
HS Code / Commodity code Confirmed for destination before shipment
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
ENGINEERING IDENTITY · NARROW SIDE VIEW

Bently Nevada 330901-11-43-10-02-05

3300 NSv proximity probe for the 3300 XL NSv Proximity Transducer System. It is designed for installations where counterbore, side-view, or rear-view restrictions limit standard 5 mm and 8 mm proximity systems.

Family
3300 XL NSv
Component
3300 NSv probe
Thread
1/4-28 UNF
Armor
Without armor
01 · CONFIGURATION PASSPORT

Decode the complete catalog number

11
1.1 in unthreaded length
43
4.3 in overall case length
10
1.0 m total length
02
ClickLoc, standard cable
05
Multiple Approvals

Base number 330901 denotes a 1/4-28 UNF probe without armor. Confirm the full suffix from the equipment record or probe label when planning a replacement.

02 · MEASUREMENT WINDOW

System-level performance context

Linear range 1.5 mm (60 mil)
Approx. range limits 0.25 to 1.75 mm
Recommended gap 1.0 mm (40 mil)
Scale factor 7.87 V/mm (200 mV/mil)
IMPORTANT SYSTEM NOTE

These performance figures apply to the complete 3300 XL NSv system—probe, NSv extension cable, and NSv Proximitor Sensor—under the conditions defined in Baker Hughes datasheet 147385 Rev. R. The probe alone is one element of that matched signal path.

03 · INSTALLATION ENVELOPE
NSv

Narrow side view geometry supports restricted counterbore and small-target installations.

Counterbore
9.5 mm minimum; 13 mm recommended minimum
Flat target
8.9 mm minimum diameter; 13 mm recommended minimum
Probe tip
PPS material
Probe case
AISI 304 stainless steel

For cross-talk spacing, shaft-size effects, thread engagement, temperature limits, and hazardous-area installation conditions, follow the official datasheet and applicable project drawings.

04 · APPLICATION MAP

Where the NSv system is intended to work

Compressor trains

Centrifugal air, refrigeration, and process gas compressors with tight installation requirements.

Small-target measurement

Radial vibration and radial position on small shafts; axial position on small flat targets.

Timing and phase

Tachometer, zero-speed, and phase-reference (Keyphasor) signals.

Primary machinery context: fluid-film bearing machines where a small shaft or reduced side-view is present.

05 · SYSTEM INTEGRATION

Complete signal path

3300 NSv Probe
›
3300 NSv Extension Cable
›
3300 XL NSv Proximitor Sensor

The probe and extension cable are mechanically and electrically compatible with the earlier 3300 RAM probe and extension cable. Replacement planning should still follow the official upgrade guidance for the installed system.

06 · OFFICIAL TECHNICAL RESOURCES

Primary-source reference set

  • Baker Hughes / Bently Nevada proximity sensors product page
  • 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R

Technical statements on this page are based on the official Baker Hughes / Bently Nevada sources above. Verify current approvals and installation drawings for the destination and application.
