| Manufacturer | Bently Nevada (Baker Hughes) |
| Item number | 330854-040-24-05 |
| Country of Origin | United States |
| Lead Time | Contact for current lead time |
| After-Sales Support | One Year Warranty |
| HS Code / Commodity code | 8544422900 (verify with destination customs) |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
The extension cable is not a generic routing cable. The probe length and extension-cable length must add up to the total system length selected for the 3300 XL 25 mm Proximitor Sensor.
The complete 3300 XL 25 mm system is designed for turbine supervisory instrumentation and differential-expansion measurement on mid-size to large steam turbine generators.
Discontinued? The current official 3300 XL 25 mm datasheet includes the 330854 family and its option structure; the exact code is not explicitly marked discontinued.
Replacement? Match length, cable construction, approval option and total system length. Do not substitute by connector appearance alone.
It identifies the multiple-agency-approvals option in the official extension-cable ordering structure.
No. Option 24 is high-temperature FluidLoc cable; option 25 is the armored version.
The physical cable length and construction are aligned, but the approval option differs. Confirm the site requirement and complete system before replacement.
No. It is a matched component of the 3300 XL 25 mm proximity transducer system.
Send the cable code, quantity, probe code, Proximitor Sensor code, system length and destination approval requirement.
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details

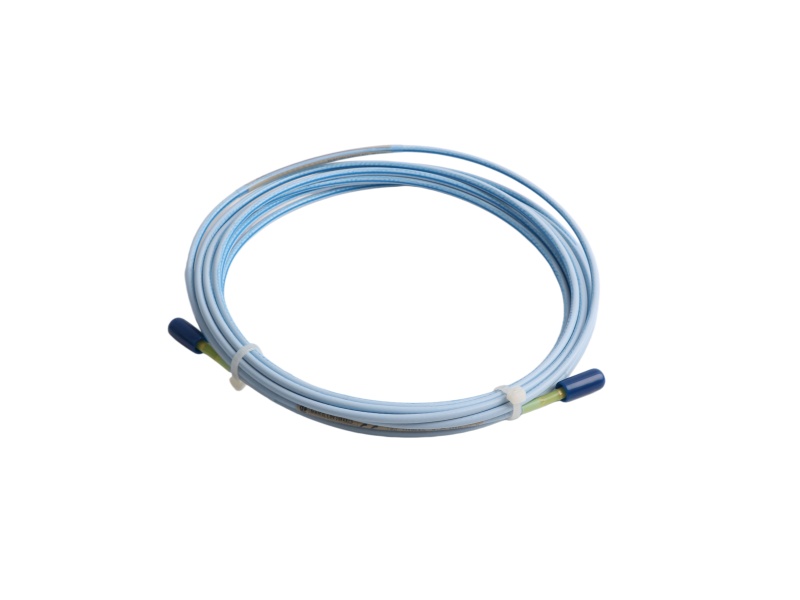

BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details

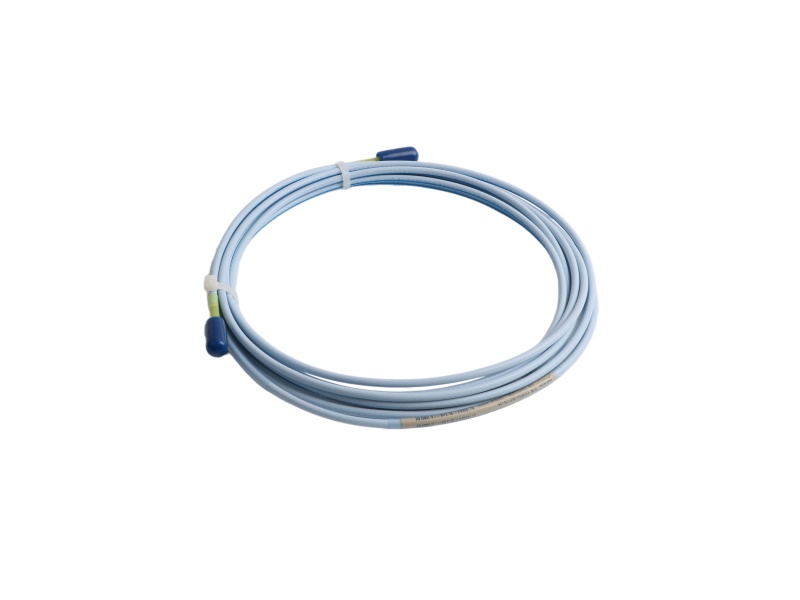

BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
