Bently Nevada 330851-04-000-015-10-01-05 3300 XL 25 mm side-exit proximity probe view 1

Bently Nevada 330851-04-000-015-10-01-05 3300 XL 25 mm Side-Exit Proximity Probe

Name: Bently Nevada 330851-04-000-015-10-01-05 3300 XL 25 mm Side-Exit Proximity Probe
Availability: InStock

◉25 MM / SIDE EXITMULTIPLE APPROVALS

330851-04-000-015-10-01-05

Smooth 1.06 in side-exit probe with a 1.5 in case, 1.0 m total length and stainless-steel armor.

RANGE12.7 mm

SCALE0.787 V/mm

CASE1.06 in

LEAD1.0 m

3300 XL 25 mm measurement chainab@mooreplc.com

◈SELECTION SNAPSHOT

MEASUREMENTDifferential expansion

CONSTRUCTIONSide exit · SST armor

APPROVALSMultiple approvals

Inquire Now

Worldwide delivery
Delivery from stock
In stock really means in stock
No account required
Shipped from the China

Product Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Item number	330851-04-000-015-10-01-05
Country of Origin	See product nameplate or certificate of origin
Lead Time	Contact May for current availability
After-Sales Support	Sales Manager May
HS Code / Commodity code	Confirm before customs declaration

FAQ

How long is my quote valid for?

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Is there any warranty?

Yes,we offer one year warranty for all new products.

Do you offer global delivery?

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

How many days will it take for my part to arrive?

Normally 3-5 working days,some remote areas 5-7 days more.

Product information

FFUTURE FIELD JOURNAL330851-04-000-015-10-01-05

SIDE-EXIT EDITION

✦PRODUCT STORY

Compact routing, protected lead

The smooth 1.06 in case routes the cable through the side, supporting layouts where rear-exit routing is unsuitable. Stainless-steel armor provides added mechanical protection.

◉MEASUREMENT ROLE

Differential expansion

Tracks the difference between steam-turbine rotor growth and casing growth.

◆CONFIGURATION SIGNAL

330851
25 mm probe

04
1.06 in side exit

000
0.0 in unthreaded

015
1.5 in case

10
1.0 m total

01
SST armor

05
Multiple approvals

↗PERFORMANCE TRACK

Range
12.7 mm

Scale
0.787 V/mm

Linear span
0.63–13.33 mm

Linearity
< ±0.31 mm DSL

◇CONSTRUCTION TRACK

Cable
75 Ω FluidLoc

Jacket
PFA over SST armor

Continuous
200°C

Intermittent
250°C

▣PRODUCT VIEW STRIP

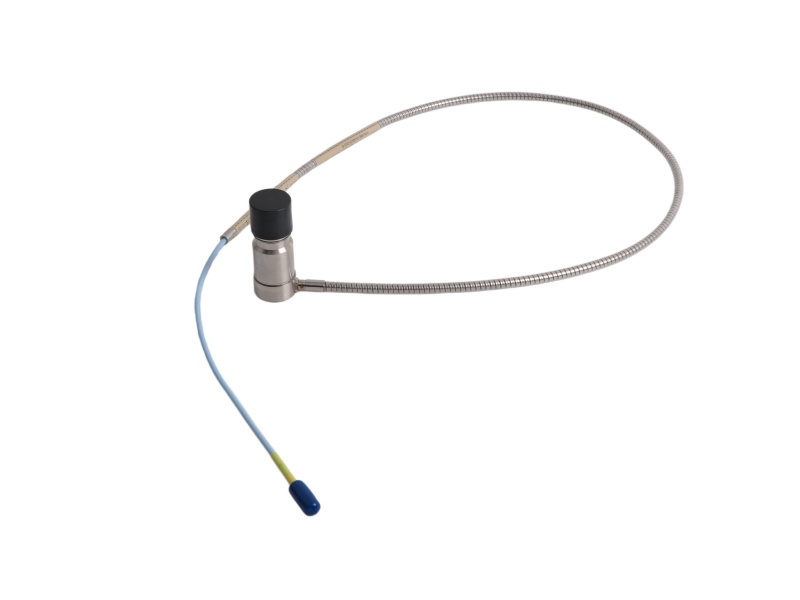

Bently Nevada 330851-04-000-015-10-01-05 side-exit probe view 1

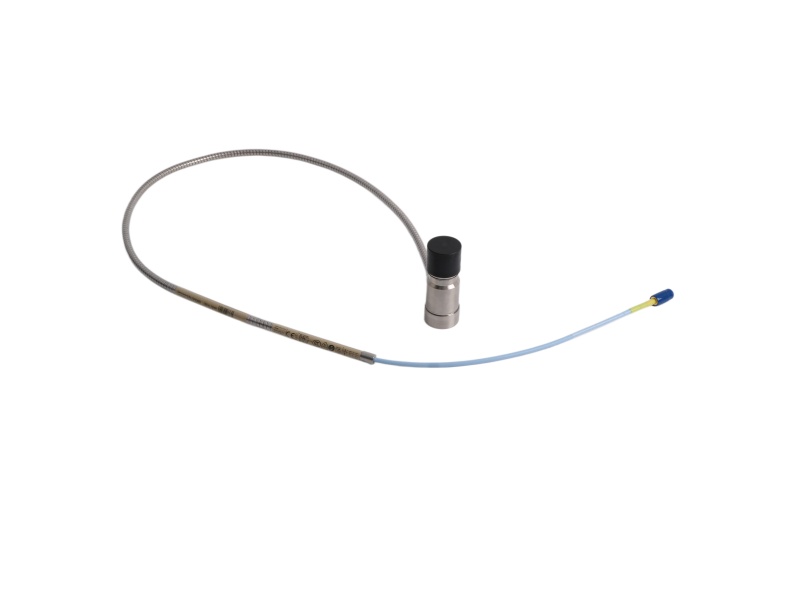

Bently Nevada 330851-04-000-015-10-01-05 side-exit probe view 2

Bently Nevada 330851-04-000-015-10-01-05 side-exit probe view 3

◎REGIONAL APPLICATION OUTLOOK

North America · utility & CHPEurope · cogenerationMiddle East · process utilitiesAsia-Pacific · turbine generatorsLatin America · industrial powerAfrica · thermal utilities

Potential sector contexts only; not claims of installed references.

✓SELECTION CHECK

□ Collar or ramp geometry

□ Side-exit clearance

□ 1.0 m system match

□ Target material

□ Approval requirements

⌁SYSTEM CONNECTIONS

330850 — 25 mm Proximitor Sensor

330853 — Sliding Bracket

29660-01 — smooth-case clamp

163854 — verification kit

✓FIELD PRACTICE

✓ Install and gap the probe

✓ Align perpendicular to the rotor

✓ Simulate shaft-collar motion

✓ Document verification results

?FAQ / CUSTOMER CHECKPOINTSQuick answers before ordering

Is this a threaded probe?
No. Option 04 is a smooth 1.06 in diameter side-exit case.

What is the total probe length?
Option 10 identifies a 1.0 m total length.

Does this configuration include armor?
Yes. Option 01 specifies stainless-steel armor with a PFA outer jacket.

Which system components should be checked?
Confirm the matching 330850 Proximitor Sensor and required mounting or verification accessories.

What should be verified before installation?
Check side-exit clearance, target geometry and material, system length and site approvals.

Can quotation and document support be requested?
Yes. Contact May for configuration review, availability, quotation and available documentation.

+ADDITIONAL AUTOMATION SIGNALS20 brand-model pairs

SAIAPCD3.W720

RockwellMMC-BDP081PNA

RTP3000/02 SER 3000 CPU

Riken KeikiNP-581 RKP-62069 0090-03499

Sanyo DenkiPYRG015K1XXVP00

RittalSK3325024

SchleicherSCTUST21

Rosemount Analytical1055-01-10-20-30

SABOPLM500 DEB.510.00

RheintachoFA-120354

SAIAPCD2.F522

RobiconA1A460A68.23M

SanyoSDN-DR1-025

RTP3019/00 SER 3000 I/O

SchmersalTA471-02/02Y-H-840

RorzeRD-023MS

Sanyo DenkiL720-012EL8

SAIAPCD1.M110

Rosemount2051CD2A02A1AS3I1M5 405PS100N065D3H

SalvagniniMINP8+

iOFFICIAL TECHNICAL BASIS Datasheet 163236 Rev. M.E-mail May
