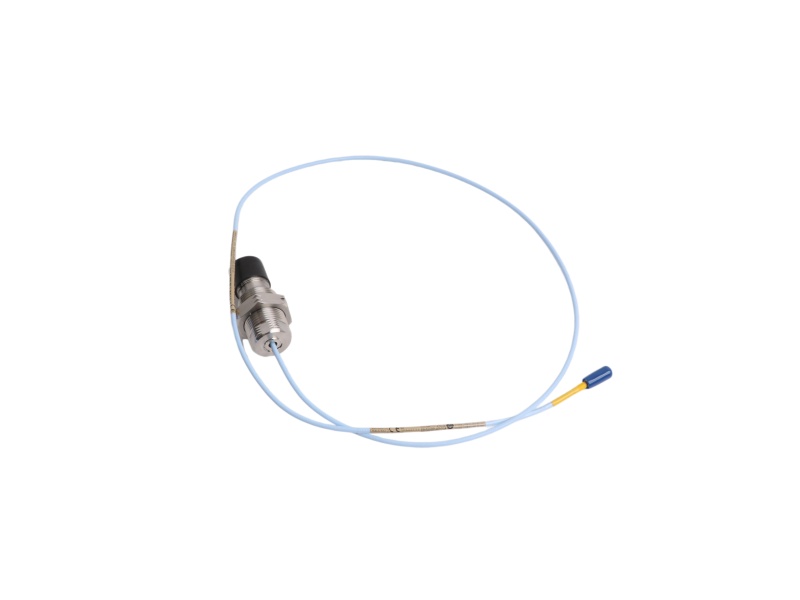

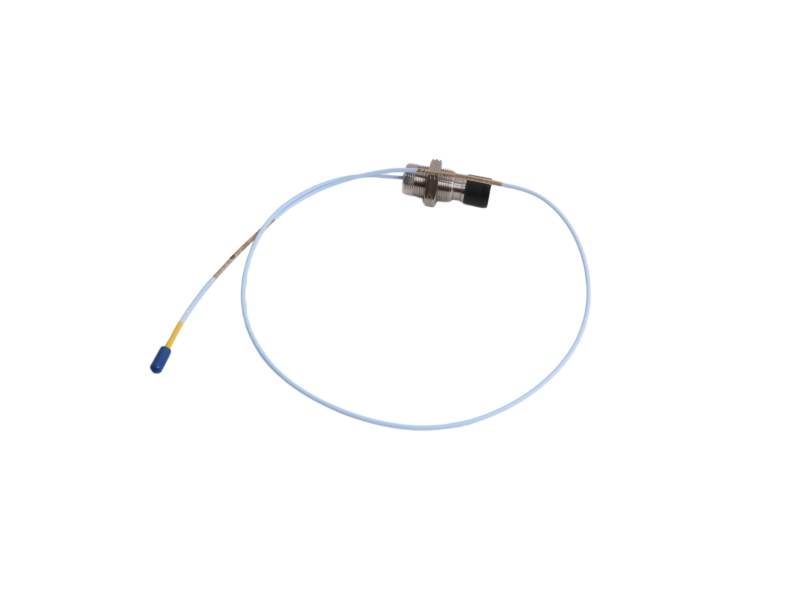

Bently Nevada 330851-02-000-050-10-00-05 3300 XL 25 mm Proximity Probe

NSv CONFIGURATION PASSPORT 330901-11-43-10-02-05 A 3300 NSv narrow-side-view proximity probe configured for tight-clearance machinery monitoring and small-target measurement. CONFIGURATION AT A GLANCE Thread: 1/4-28 UNFConstruction: Without armorProbe length: 1.0 mConnector: ClickLoc, standard cableApproval: Multiple Approvals Sales Manager May Configuration and quotation support E-mail: ab@mooreplc.comPhone / WhatsApp: +86-18106909650

BENTLY NEVADA / 3300 XL NSv PROXIMITOR SENSOR CONFIGURATION DOSSIER 330980-71-BR A compact signal-conditioning interface configured for a 7.0 m proximity transducer system and DIN-rail installation. Designed for the 3300 XL NSv measurement chain SYSTEM LENGTH7.0 m MOUNTINGDIN rail OUTPUT RESISTANCE50 ohm Sales Manager May ab@mooreplc.com WhatsApp: +86-18106909650

ROUTE ID 8 mm 3300 XL proximity probe METRIC ARMORED PROBE 330104-01-08-05-11-05 M10 × 1 armored probe with a 10 mm unthreaded section, 80 mm case and 0.5 m FluidLoc lead. The detailed order-code map appears once in the engineering record below. SYSTEM ROLE Position · vibration · reference CABLE OPTION FluidLoc with protector CONTACT ab@mooreplc.com

3300 XL NSv FAMILY CABLE ROLE IN THE MEASUREMENT CHAIN The protected link between probe and signal conditioner Built for the 3300 XL NSv family, this extension cable carries the probe connection toward the matching Proximitor Sensor while supporting an orderly protected cable route. FAMILY POSITION NSv Probe   Extension Cable   NSv Proximitor Sensor SYSTEM FAMILY 3300 XL NSv COMPONENT ROLE Protected cable connection REQUEST A QUOTE ab@mooreplc.com

3300 XL / 25 MM DE Differential expansion measurement probe FIELD CONFIGURATION ENGINEERED FOR TURBINE EXPANSION MONITORING 330851-02-000-050-10-00-05 Metric M30×2 probe for the 3300 XL 25 mm system, configured with a 50 mm case, 1.0 m lead and multiple approvals. RANGE12.7 mm SCALE0.787 V/mm CASEM30×2 LEAD1.0 m Probe + cable + ProximitorComplete matched measurement chain E-mail May

3300 XL 25 MM PROXIMITY PROBE 330851-02-000-050-90-00-05 9.0 m metric probe for steam-turbine differential expansion measurement. RANGE12.7 mm SCALE0.787 V/mm THREADM30×2 LEAD9.0 m No armor · Multiple approvalsab@mooreplc.com SELECTION CHECK MeasurementDifferential expansion Sensor330850 / 9.0 m TargetAISI 4140 SystemMatch total length TURBINE SUPERVISORY INSTRUMENTATION

◉25 MM / SIDE EXITMULTIPLE APPROVALS 330851-04-000-015-10-01-05 Smooth 1.06 in side-exit probe with a 1.5 in case, 1.0 m total length and stainless-steel armor. RANGE12.7 mm SCALE0.787 V/mm CASE1.06 in LEAD1.0 m 3300 XL 25 mm measurement chainab@mooreplc.com ◈SELECTION SNAPSHOT MEASUREMENTDifferential expansion CONSTRUCTIONSide exit · SST armor APPROVALSMultiple approvals

BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
