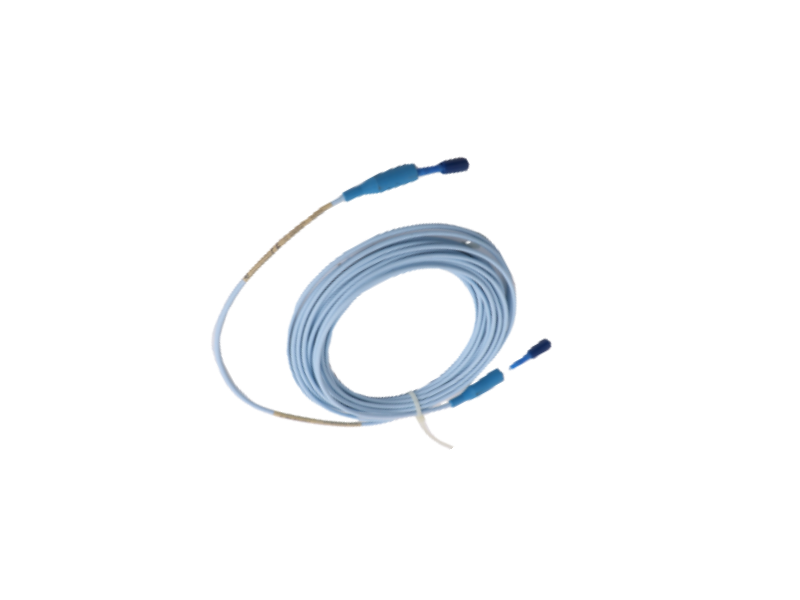

Bently Nevada 330130-080-02-05 3300 XL Extension Cable side view

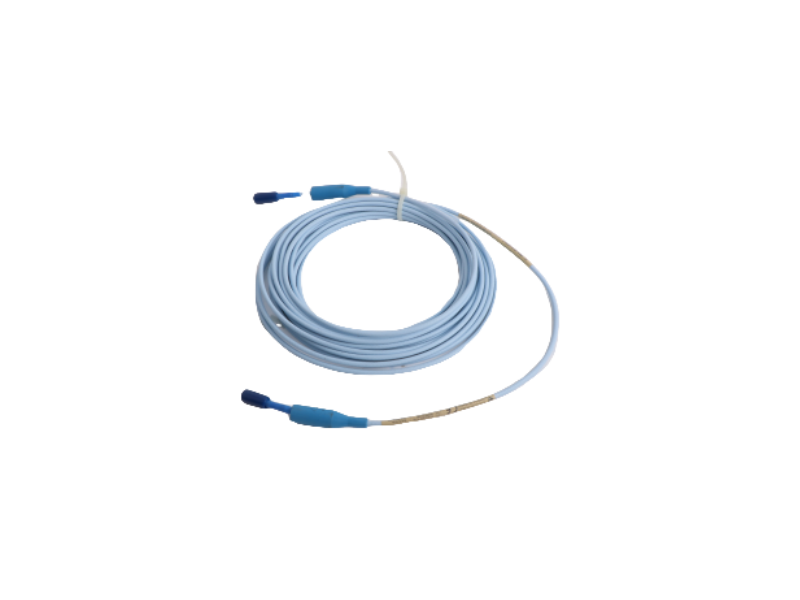

Bently Nevada 330130-080-02-05 3300 XL Extension Cable front view
Bently Nevada 330130-080-02-05 3300 XL Extension Cable detail view

Bently Nevada 330130-080-02-05 3300 XL Extension Cable

Application: Exact-code extension cable for a 3300 XL 8 mm proximity transducer system.

Product family3300 XL 8 mm Proximity System
Minimum order1 Piece
Applicable ratings8.0 m cable; connector protector
LifecycleCurrent status to be confirmed
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Bently Nevada
Item number 330130-080-02-05
Country of Origin United States
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
330130-080-02-05
EXTENSION CABLE

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

330130-080-02-05 Technical Data

Exact item scope
Cable family3300 XL Standard Extension Cable
Length code 0808.0 m (26.2 ft)
Connector option 02Standard cable with connector protector
Approval option 05CSA, ATEX and IECEx approvals
Cable construction75 Ω triaxial cable with FEP insulation; 3.7 mm maximum outside diameter
8 m conductor resistanceCore 1.76 ±0.26 Ω; jacket 0.53 ±0.11 Ω
Capacitance69.9 pF/m (21.3 pF/ft), typical
Temperature range-52 to +177 °C (-62 to +350 °F), operating and storage
Length tolerance+20%, -0%
Model-specific application profile

Transducer-system length matching

This exact suffix combination defines cable length, connector protection and approvals. The assembled probe and extension cable must match the Proximitor system-length requirement.

System roleExtends the probe cable in a 3300 XL 8 mm proximity transducer chain
Configuration ruleProbe length plus extension-cable length must equal the total length specified for the selected Proximitor Sensor
Connector handlingGold-plated ClickLoc connectors are designed for finger-tight engagement without special tools

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

What does 080 mean in the order number?

It identifies an 8.0 metre nominal extension-cable length.

02

What is supplied by option 02?

That option specifies the standard cable with a connector protector.

03

Which approvals are associated with suffix 05?

The order option covers CSA, ATEX and IECEx approvals.

04

Can cable length be selected independently of the probe?

No. The combined probe and extension-cable length must suit the Proximitor Sensor system length.

05

Does the connection require a special tightening tool?

No special tool is required for the ClickLoc connector; correct engagement is confirmed by its click.

06

Is a probe or Proximitor Sensor included?

No additional transducer components are included unless the quotation lists them separately.
