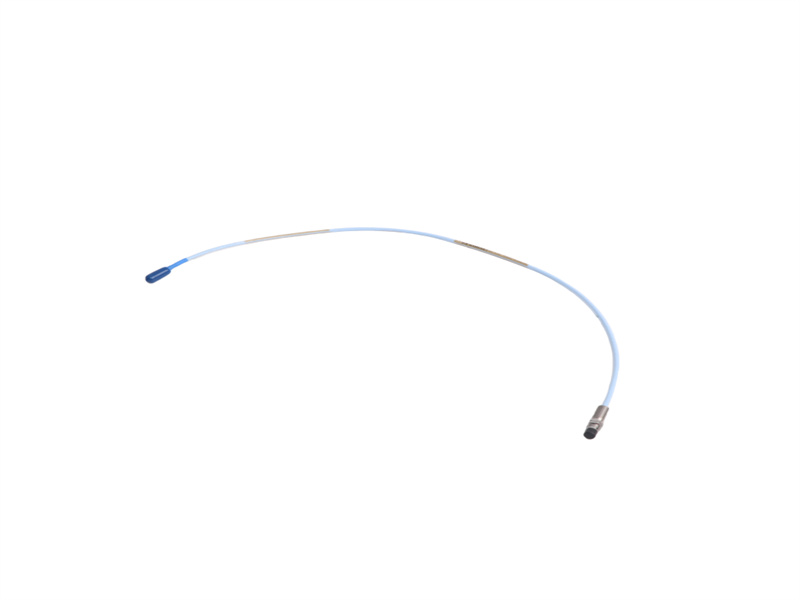

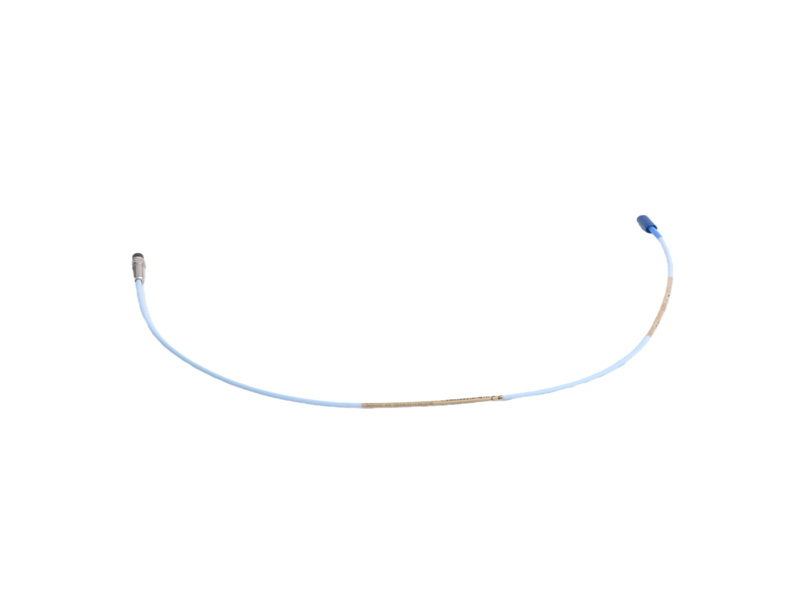

Description:Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Probe offers space-saving, non-contact vibration monitoring in tight machinery spaces.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 330105-02-12-05-02-05 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Machinery-Protection Expertise
Deep-Dive Data Sheet: Bently Nevada 330105-02-12-05-02-05
3300 XL 8 mm Reverse-Mount Proximity Probe (5 m System)
Mechanical Construction – Extracted from Official Datasheet
• Probe Case: AISI 303 or 304 stainless steel, Ø 8 mm × 12 mm active tip
• Probe Tip Material: Polyphenylene sulfide (PPS) – chemically inert to turbine oils
• Thread: 3/8-24 UNF-2A reverse-mount – 22.6 N·m (200 in-lbf) max torque, 7.5 N·m (66 in-lbf) recommended
• Cable: 0.5 m integral, 75 Ω triaxial, FEP-insulated, 25.4 mm (1 in) minimum bend radius
• Connector: Gold-plated ClickLoc miniature coaxial – 0.565 N·m (5 in-lbf) max torque
Electrical Performance – API 670 4th Edition Verified
| Parameter | Value | |---|---| | Linear range | 2 mm (80 mil) |
| Sensitivity | 7.87 V/mm ± 5 % (200 mV/mil) |
| Frequency response | 0 Hz – 10 kHz (–3 dB) |
| Output impedance | 50 Ω (source) |
| Supply voltage | –17.5 Vdc to –26 Vdc (–24 Vdc nominal) |
| Current draw | 12 mA per probe (typical) |
| Operating temperature | –51 °C … +177 °C (probe/cable)
| Storage temperature | –60 °C … +177 °C
Installation & Field Considerations
• Reverse-mount cable exits away from shaft, eliminating radial clearance conflicts on steam-turbine bearings
• Not available with armor or connector protectors per factory spec
• Interchangeable with any 3300 XL 8 mm system—no bench calibration needed
Immediate Stock – Related 3300 XL Components
Probe: 330105-02-12-05-02-05
Extension cable: 330130-040-00-00 (4 m) or 330130-050-00-00 (5 m)
Proximitor: 330180-50-05 or 330180-51-05
Monitor: 3500/42M vibration, 3500/50M tachometer
Power: 149992-01 24 Vdc DIN-rail supply
All items are factory-sealed and ready for same-day global dispatch from PLC Autocontroller.
