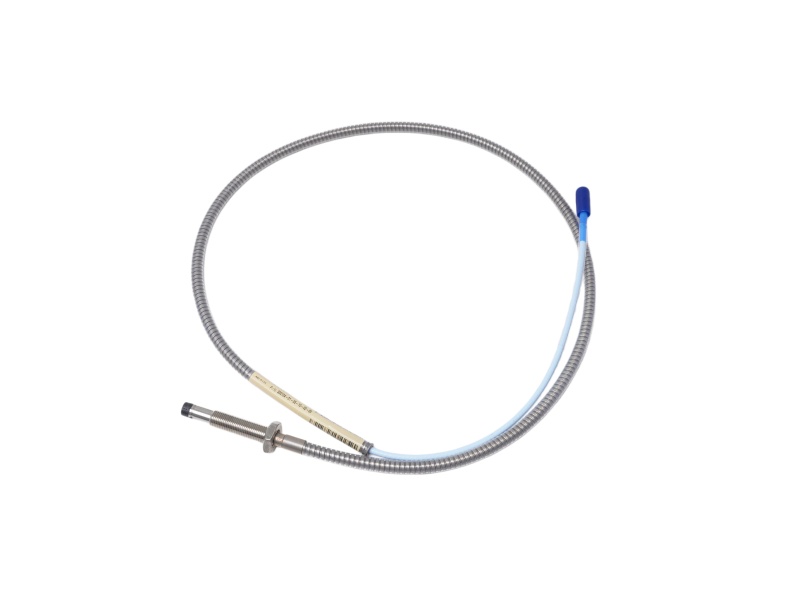

Bently Nevada 330104-01-08-05-11-05 armored 3300 XL 8 mm proximity probe view 1

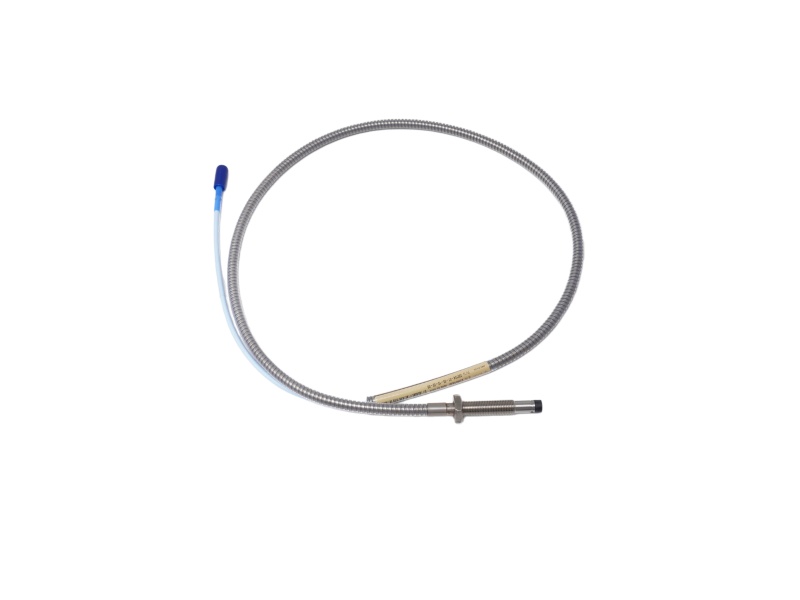

Bently Nevada 330104-01-08-05-11-05 armored 3300 XL 8 mm proximity probe view 2
Bently Nevada 330104-01-08-05-11-05 armored 3300 XL 8 mm proximity probe view 3

Bently Nevada 330104-01-08-05-11-05 3300 XL 8 mm Armored Proximity Probe

ROUTE ID
8 mm
3300 XL proximity probe
METRIC ARMORED PROBE
330104-01-08-05-11-05
M10 × 1 armored probe with a 10 mm unthreaded section, 80 mm case and 0.5 m FluidLoc lead. The detailed order-code map appears once in the engineering record below.
SYSTEM ROLE
Position · vibration · reference
CABLE OPTION
FluidLoc with protector
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Bently Nevada (Baker Hughes)
Item number 330104-01-08-05-11-05
Country of Origin See product nameplate or COO certificate
Lead Time Contact May for availability
After-Sales Support Sales Manager May
HS Code / Commodity code Confirm before customs declaration
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
ENGINEERING ROUTE MAP · 3300 XL 8 mm

Bently Nevada 330104-01-08-05-11-05

A metric, armored 3300 XL 8 mm proximity probe configured for a 0.5 m system lead and fluid-blocking cable construction.

ORDER CODE ROUTE
1
330104
Probe family
M10 × 1 thread with armor
2
01
Unthreaded length
10 mm
3
08
Overall case length
80 mm
4
05
Total length
0.5 m (1.6 ft)
5
11
Cable interface
ClickLoc with protector; FluidLoc cable
6
05
Approval option
CSA, ATEX and IECEx
MEASUREMENT ROLE

Distance becomes a usable voltage signal

Within a complete 3300 XL 8 mm transducer system, the probe observes a conductive target. System output is proportional to probe-tip distance and supports both static position and dynamic vibration measurement.

Primary official applications include vibration and position on fluid-film bearing machines, plus Keyphasor reference and speed measurement.

SYSTEM PERFORMANCE REFERENCE
Linear range2 mm (80 mils)
Scale factor7.87 V/mm (200 mV/mil) ±5% for standard 1 m or 5 m systems
Frequency response0 to 10 kHz, +0 / −3 dB
Recommended radial gap−9 Vdc, approximately 1.27 mm (50 mils)
Minimum flat target15.2 mm diameter
BUILD RECORD
Probe tip
Polyphenylene sulfide (PPS)
Probe case
AISI 303 or 304 stainless steel
Armor
Flexible AISI 302 or 304 stainless steel with FEP jacket
Probe cable
75 Ω triaxial FEP insulated
Case-to-lead tensile rating
330 N (75 lbf)
Minimum cable bend radius
25.4 mm (1.0 in)
Standard probe temperature
−52°C to +177°C
Connector
Gold-plated ClickLoc; finger-tight connection
INSTALLATION ENVELOPE

Target geometry

Use a flat target at least 15.2 mm in diameter. Recommended minimum shaft diameter is 76.2 mm; smaller shafts can change scale factor.

Probe separation

Maintain approximately 40 mm tip separation for axial position or 38 mm for radial vibration to limit cross-talk.

Fluid path control

The selected FluidLoc cable option helps prevent oil or other liquids from escaping through the cable interior.

SYSTEM ANATOMY

Three components form the measurement chain

SENSING POINT

3300 XL 8 mm probe

Observes the conductive target without contact. This order identifies the metric armored probe.

→
SYSTEM LENGTH

Extension cable

Completes the selected system length where required and connects the probe to the signal conditioner.

→
SIGNAL CONDITIONING

Proximitor Sensor

Produces voltage proportional to the distance between the probe tip and conductive surface.

CONNECTION ENGINEERING

ClickLoc interface

Gold-plated, corrosion-resistant ClickLoc connectors tighten by hand and click when properly seated. The locking design helps prevent loosening and requires no special installation or removal tools.

This configuration includes a connector protector for increased environmental protection.
CABLE BARRIER

FluidLoc option

FluidLoc construction is intended to prevent oil and other liquids from leaking out of the machine through the cable interior.

Lead protection
Flexible stainless-steel armor with FEP outer jacket
Cable geometry
75 Ω triaxial construction
COMPATIBILITY FRAME

Designed for component interchangeability

3300 XL 8 mm probes, extension cables and Proximitor Sensors support complete interchangeability within the 3300 XL 8 mm system, removing the need to match or bench-calibrate individual XL components. XL components are also physically and electrically interchangeable with applicable non-XL 3300-series 5 mm and 8 mm components.

ENGINEERING LIMIT

When XL and non-XL components are mixed, overall performance is limited to the non-XL system specification. Maintain the permitted cable bend radius.

APPLICATION ROUTES
RADIAL

Shaft vibration

Dynamic displacement on fluid-film bearing machinery

AXIAL

Position

Static shaft or rotor position measurement

REFERENCE

Keyphasor

Phase-reference observation for machinery monitoring

SPEED

Speed measurement

Rotational speed measurement with application-specific engineering review

PRE-INSTALLATION REVIEW

Five checks before installation

01
TargetConfirm a conductive target and target geometry.
02
ClearanceVerify 15.2 mm minimum flat-target diameter.
03
SpacingAllow 40 mm axial or 38 mm radial tip separation.
04
RoutingRespect the 25.4 mm minimum cable bend radius.
05
SystemMatch the probe with the required extension cable and Proximitor system length.
INDUSTRIAL MODEL INDEX

Additional automation references

30 selected items · six indexed lanes
A / 01
KUKA
KRC1 69-000-398
A / 02
KUKA
00-128-456
A / 03
KUKA
KPS-600/20-ESC
A / 04
KTRON
KSL2401-30056 2401-30056
A / 05
KUKA
MFC2 MFC2-IC3 00-125-236 00-108-766
B / 01
KONTRON
07025-0000-70-1-04
B / 02
KONTRON
VMOD-2
B / 03
KRAUSSMAFFEI
SE502/5089592
B / 04
LAMBDA
PFC0750-3AH-N
B / 05
KOYO
F4-04AD
C / 01
KROMSCHROEDE
BRENNERSTEUERUNG CM222 CM222-0003
C / 02
KULICKE & SOFFA
AS-261-0-02
C / 03
KUKA
SPS-DY150H 00-105-904
C / 04
LAM
810-099175-103
C / 05
KUKA
KSD1-16
D / 01
KONTRON
VMEM-S2
D / 02
KONTRON
CP306 36780
D / 03
LAUER
PCS 110FZ
D / 04
KUKA
KPS-600/20-REL
D / 05
KUKA
ESC-PLATINE
E / 01
KUBOTA
KF-C1000
E / 02
LAM
VME-LTNI-S4 B105-0102
E / 03
K-TRON
9184-60118-D KTRON 9184-60118
E / 04
KONTRON
CP6000/FTC-02
E / 05
LAM RESEARCH
810-017034-005
F / 01
LAM
853-025054-008
F / 02
KONTRON
CP306-V CP306V
F / 03
LAZER
LHZ004 LHZ 004
F / 04
KUKA
00-127-755 VER.4
F / 05
LENZE
E84DGFCRANP
TECHNICAL BASIS

Product identity, ordering-code interpretation and performance statements follow the official 3300 XL 8 mm Proximity Transducer System datasheet, document 141194 Rev. AM.

CONFIGURATION SUPPORT

Sales Manager May
E-mail: ab@mooreplc.com
Phone / WhatsApp: +86-18106909650

Related Products

ProvibTech TM202-A00-B00-C00-D00-E00-G00 industrial automation product
ProvibTech TM202-A00-B00-C00-D00-E00-G00 Transmitter Monitor

ProvibTech / PVTVM / Transmitter Monitor TM202 Transmitter Monitor The ProvibTech TM202-A00-B00-C00-D00-E00-G00 is a transmitter monitor identified by its complete seven-block option code. Match every option block, terminal arrangement and installed sensing loop before ordering. The suffix meanings are not inferred from incomplete online listings. ModelTM202-A00-B00-C00-D00-E00-G00 DeviceTransmitter Monitor BrandProvibTech / PVTVM ConfigurationSeven-Block Option Code Supply StatusRFQ Confirmation Lead Time2-3 DAYS Order check: send the complete front and side labels, terminal photos, connected sensor details, quantity and destination. ✓ Integrity Supply ⚡ Fast Delivery ◎ Worldwide Shipping

Details
ProvibTech TM0182-A50-B00-C00 industrial automation product
ProvibTech TM0182-A50-B00-C00 Proximity Transducer Driver

ProvibTech / PVTVM / Proximity Driver TM0182 Proximity Transducer Driver The ProvibTech TM0182-A50-B00-C00 is a TM0182 driver labeled for a 2.0 mm full-scale range, 8 mV/µm sensitivity and -24 V power. Confirm the matching probe, extension cable, total system length, target material and monitor input before replacing any component in the proximity transducer chain. ModelTM0182-A50-B00-C00 DeviceTM0182 Driver Full Scale2.0 mm Sensitivity8 mV/µm Power-24 V Lead Time2-3 DAYS Order check: send driver, probe and extension-cable labels, total system length, target material, quantity and destination. ✓ One Year Warranty ⚡ Fast Delivery ◎ Top Quality

Details
Bently Nevada 330101-37-57-10-02-05 3300 XL 8 mm proximity probe view 1
Bently Nevada 330101-37-57-10-02-05 3300 XL 8 mm Proximity Probe

3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.

Details
Bently Nevada 330101-39-47-10-02-05 3300 XL 8 mm proximity probe view 1
Bently Nevada 330101-39-47-10-02-05 3300 XL 8 mm Proximity Probe

  Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05

Details
Bently Nevada 330101-02-78-05-02-00 proximity probe front view
Bently Nevada 330101-02-78-05-02-00 3300 XL 8 mm Proximity Probe

Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650

Details
Bently Nevada 330101-01-29-10-01-05 proximity probe overview
Bently Nevada 330101-01-29-10-01-05 3300 XL 8 mm Proximity Probe

Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650

Details
Bently Nevada 330101-01-39-10-01-05 3300 XL 8 mm proximity probe view 1
Bently Nevada 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe

BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales

Details
Bently Nevada 330854-040-24-00 3300 XL 25 mm extension cable view 1
Bently Nevada 330854-040-24-00 25 mm Extension Cable

BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
