Description:330104-00-12-10-02-05 — 3300 XL series 8mm Proximity Probe for precise, reliable non-contact position sensing in industrial automation applications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 330104-00-12-10-02-05 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller – 20-year spare-part express
Bently nevada |330104-00-12-10-02-05 |3300 XL series 8mm Probe
Product Overview

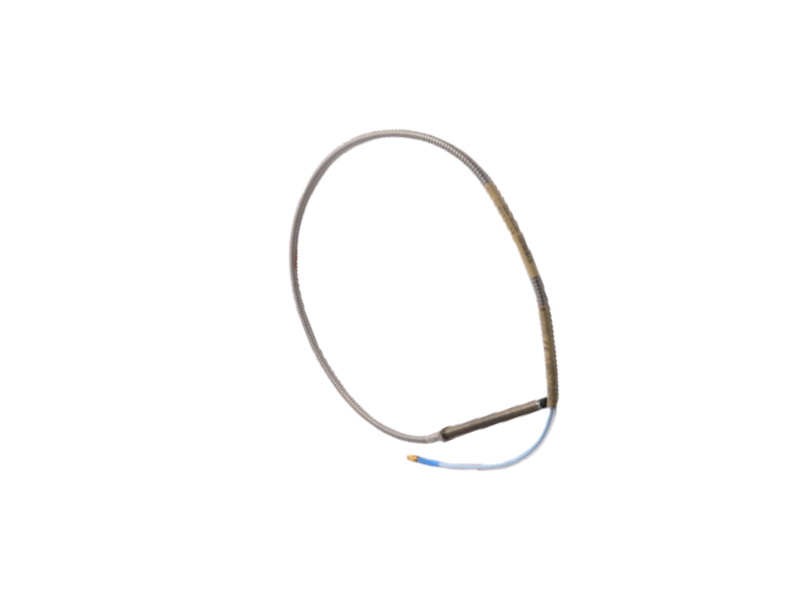

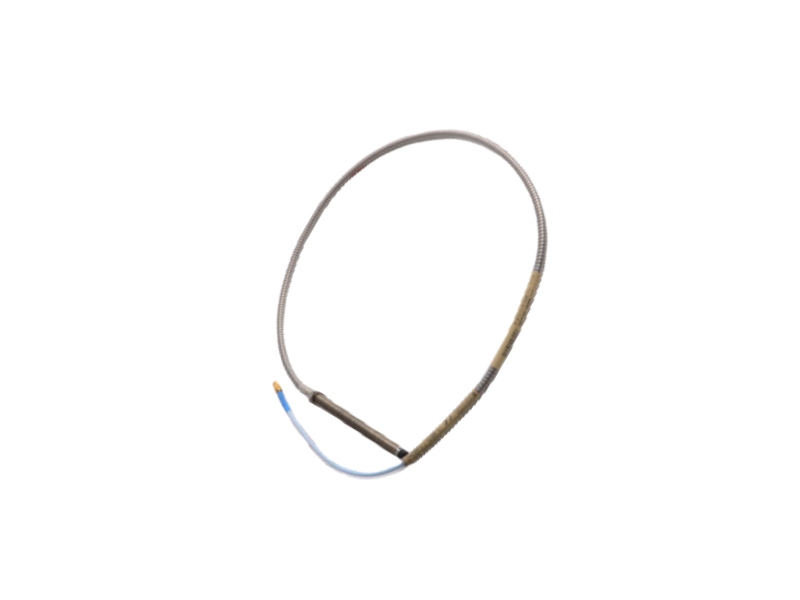

330104-00-12-10-02-05 is a Bently Nevada 3300 XL series 8mm eddy current displacement probe, used for highly reliable non-contact measurement of critical rotating machinery. This probe is based on the mature eddy current measurement principle and can continuously monitor key state parameters such as shaft vibration, shaft displacement and shaft eccentricity. This model can be used in conjunction with the 3300 XL series preamplifier (Proximitor®) and extension cables, and is widely applied in industrial scenarios where high safety and stability of equipment are required.
Key Specifications
|
Parameter |
Specification |
|
Product type: |
Eddy Current Displacement Probe (Proximity Probe) |
|
Probe diameter: |
8mm |
|
Product series: |
Bently Nevada 3300 XL |
|
Measurement method: |
Non-contact displacement/vibration measurement |
|
System compatibility: |
3300 XL Proximitor® Sensor |
|
Output characteristics: |
High-linearity analog signal |
Product Advantages
High measurement accuracy and stable signal
Adopting mature eddy current measurement technology, it ensures stability and repeatability during long-term online operation.
Good system compatibility
Highly compatible with Bently Nevada 3300 XL series monitoring systems, facilitating integration and replacement.
It is suitable for monitoring key equipment
Designed specifically for important rotating machinery such as steam turbines and compressors, it enhances the operational safety of the equipment.
Standardized structural design
The universal 8mm probe specification simplifies spare parts management and reduces maintenance costs
Contact Hotline
Sales Manager May
E-mail: ab@mooreplc.com
Phone: +86-18106909650 (whatsapp)
Wechat id: dcsfcs
What happens next?
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details
BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details
BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
