Description:330103-06-13-05-02-CN — 3300 XL 8 mm proximity probe with M10 × 1 thread, without armor, miniature coaxial ClickLoc connector and standard cable, certified in China for reliable industrial vibration and displacement monitoring.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 330103-06-13-05-02-CN |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
330103-06-13-05-02-CN | 3300 XL 8 mm Probe
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Product Overview

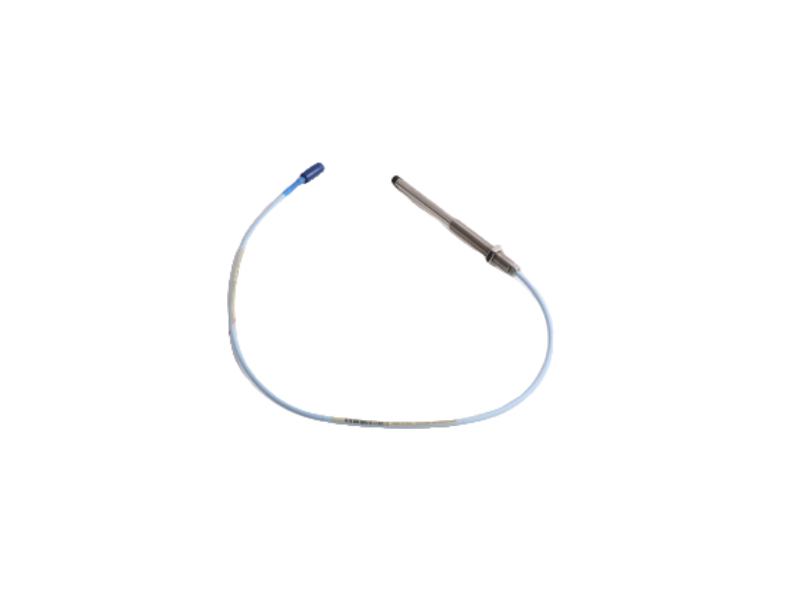

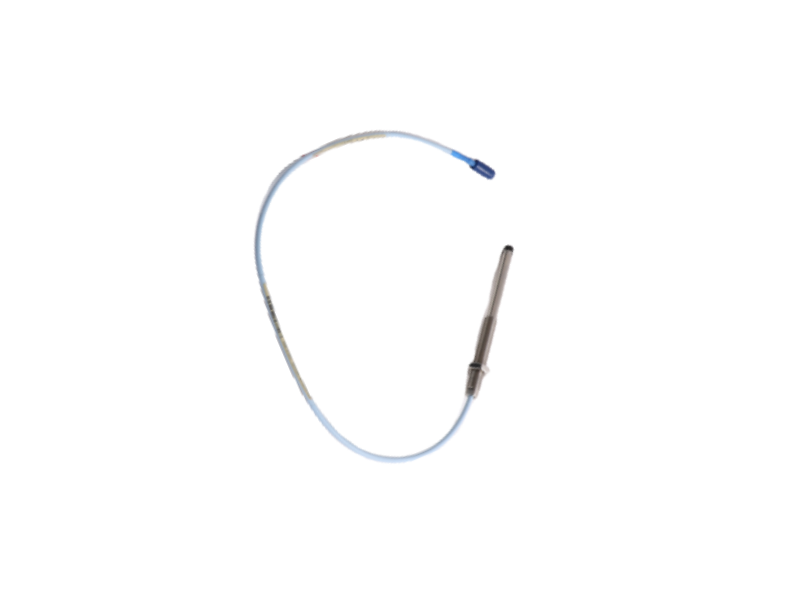

The Bently Nevada 330103-06-13-05-02-CN is an 8 mm eddy current proximity probe from the 3300 XL series. It features an M10 × 1 thread design and an unarmored construction, making it suitable for space-constrained industrial applications requiring high measurement accuracy and stability.This probe comes with a Miniature coaxial ClickLoc connector and a 0.5 m standard cable, supports 60 mm and 130 mm probe length options, and is China certified (CN), making it suitable for long-term stable operation in domestic industrial equipment. The 3300 XL series probes are widely used for monitoring shaft displacement, vibration, and position in rotating machinery, and are key sensing elements in condition monitoring systems for steam turbines, compressors, pumps, and power generation equipment.
Key Specifications
|
Parameter |
Specification |
|
Product Series: |
3300 XL 8 mm Probe |
|
Probe Diameter: |
8 mm |
|
Mounting Thread: |
M10 × 1 |
|
Construction Type: |
Without Armor |
|
Model Number: |
330103-06-13-05-02-CN |
|
Probe Length Options: |
60 mm |
|
Probe Length Options: |
130 mm |
|
Cable Length: |
0.5 meter (1.6 feet) |
|
Connector Type: |
Miniature coaxial ClickLoc connector |
Product Advantages
High-Precision Measurement Performance
Utilizing mature eddy current measurement technology, it achieves high stability and repeatability in detecting axial displacement and vibration.
Compact Design
M10 × 1 thread and unarmored construction make it suitable for industrial equipment with limited installation space.
Reliable Connection
Miniature coaxial ClickLoc connectors ensure stable signal transmission and facilitate quick on-site installation and maintenance.
Multiple Length Configurations Available
Supports 60 mm and 130 mm probe lengths to accommodate different installation depth requirements.
Compliant with Chinese Market Application Requirements
CN certified version, suitable for selection, installation, and long-term operation in domestic projects.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
