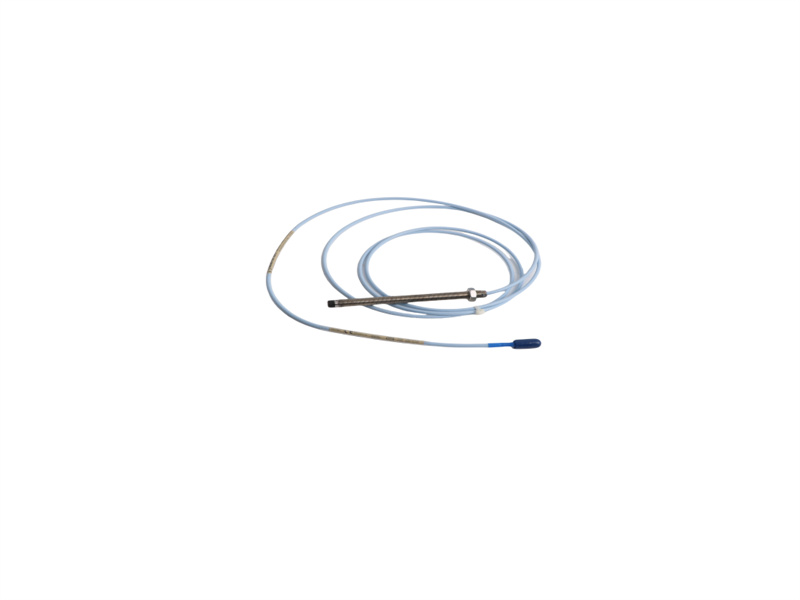

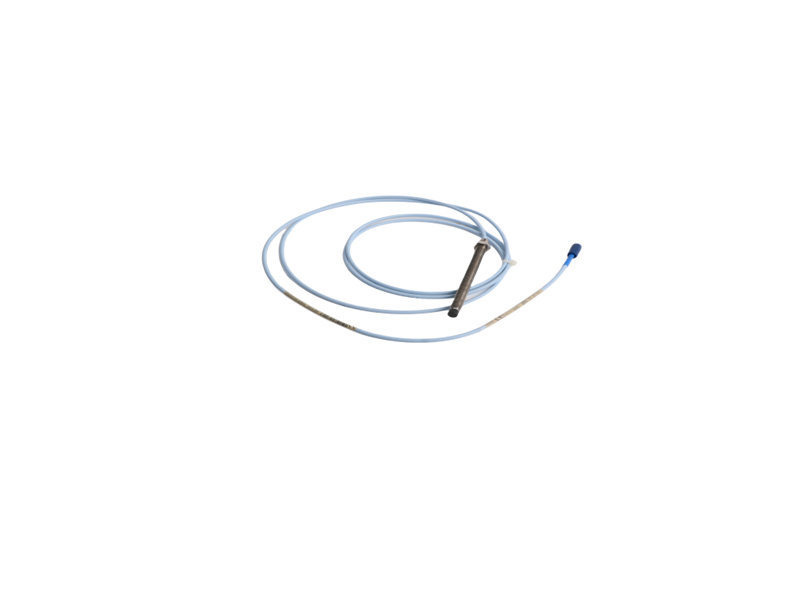

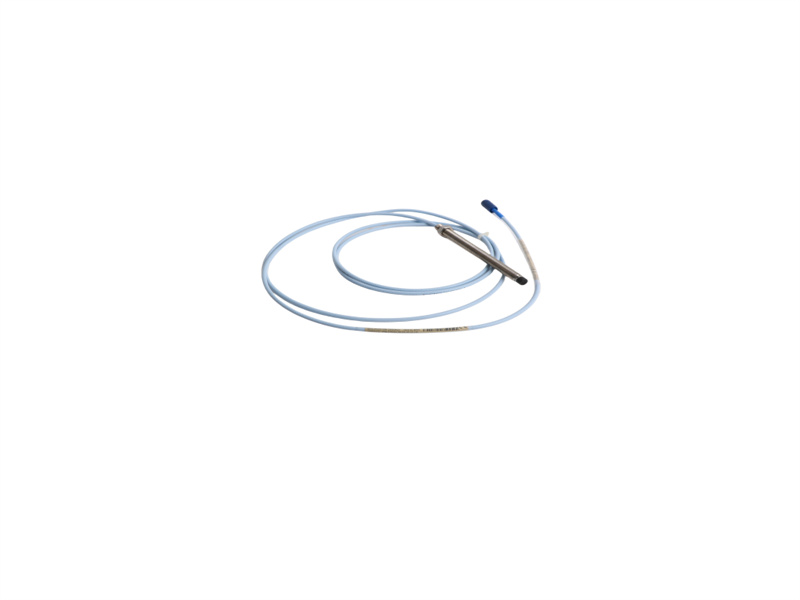

Description:Bently Nevada 330101-00-48-20-12-05 3300 XL 8 mm probe delivers non-contact vibration measurement for critical rotating machinery.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 330101-00-48-20-12-05 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Predictive-Maintenance Expertise
Data Sheet: Bently Nevada 330101-00-48-20-12-05
3300 XL 8 mm Proximity Probe – “High-Temperature, Long-Reach”
Part-Number Decoder
330101-00-48-20-12-05
• 330101 = 3300 XL 8 mm probe family
• 00 = Standard tip material (AISI 4140)
• 48 = Case length 48 mm (1.89 in) – ideal for thick bearing caps
• 20 = 2 m integral cable (6.56 ft)
• 12 = Armor (stainless-steel braid) + FEP jacket
• 05 = Global approvals (ATEX / IECEx / CSA)
Core Technical Data
|
Parameter |
Value |
|
Sensing Range |
2 mm (80 mil) linear |
|
Sensitivity |
7.87 V/mm ±5 % (200 mV/mil) |
|
Frequency Response |
0 Hz – 10 kHz (–3 dB) |
|
Gap Voltage Range |
–1.5 … –11.5 V DC |
|
Operating Temperature |
–51 °C … +177 °C probe & cable |
|
Storage Temperature |
–60 °C … +177 °C |
|
Thread |
3/8-24 UNF-2A |
|
Max Torque |
22.6 N·m (200 in-lbf) |
|
Cable Length |
2 m integral armored |
|
Armor Code |
12 (stainless-steel braid) |
|
Certifications |
API 670 4th Ed., ATEX Zone 2, IECEx, CSA Class I Div 2 |
Typical Installations
• Steam-turbine bearing caps > 50 mm wall thickness
• High-temperature gas-turbine exhaust end
• Offshore compressor gearbox housings
One-Click BOM
|
Function |
Alternate Part Number |
Comment |
|
Probe |
330104-00-16-10-02-05 |
Standard 8 mm tip, 1 m integral armored cable – drop-in for tight spaces |
|
System Length |
330180-91-05 |
9 m Proximitor system for long-run offshore applications |
|
Monitor |
3500/45 176449-01 |
Differential-expansion monitor—adds axial position capability |
|
Power |
330850-90-05 |
DIN-rail 24 Vdc supply, SIL-2 rated |
|
Field Housing |
330880-28-00-065-03-02 |
PROXPAC XL self-contained probe + proximitor—no extension cable required |
|
Vibration Gateway |
2300/20-CN |
Dual-channel vibration monitor—cost-effective standalone unit |
All components factory-sealed, ready for same-day dispatch from PLC Autocontroller.
