Description:330101-00-12-05-02-02 — 8 mm XL proximity probe with 3/8-24 UNF thread and standard cable for accurate vibration and displacement measurement in Bently Nevada monitoring systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 330101-00-12-05-02-02 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Automation Controller | 20 Years of Industrial Automation Supply Experience
BENTLY NEVADA | 330101-00-12-05-02-02 | 3300 XL 8 mm Probe
Overview

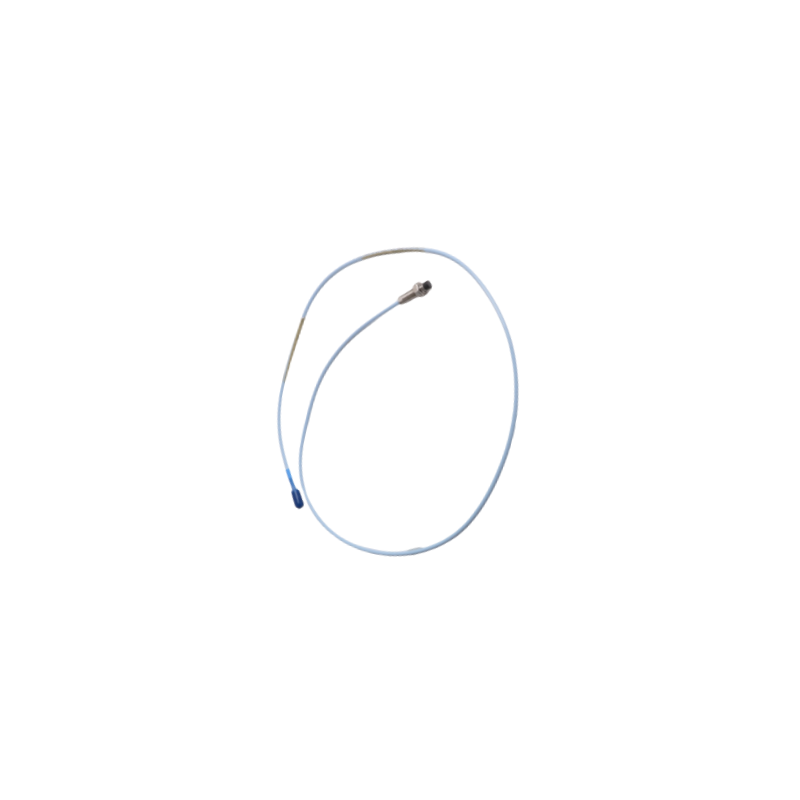

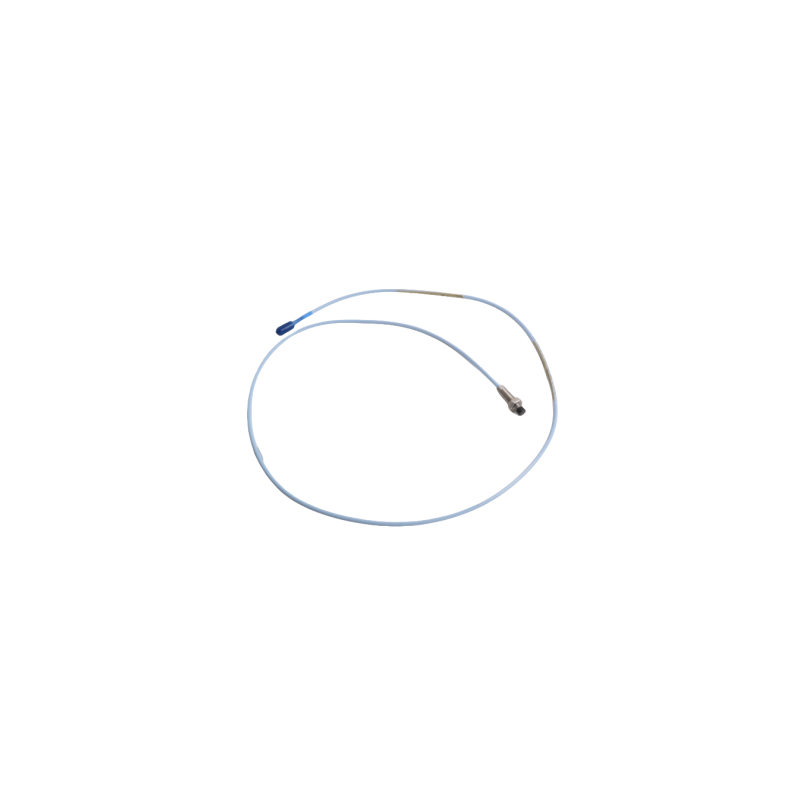

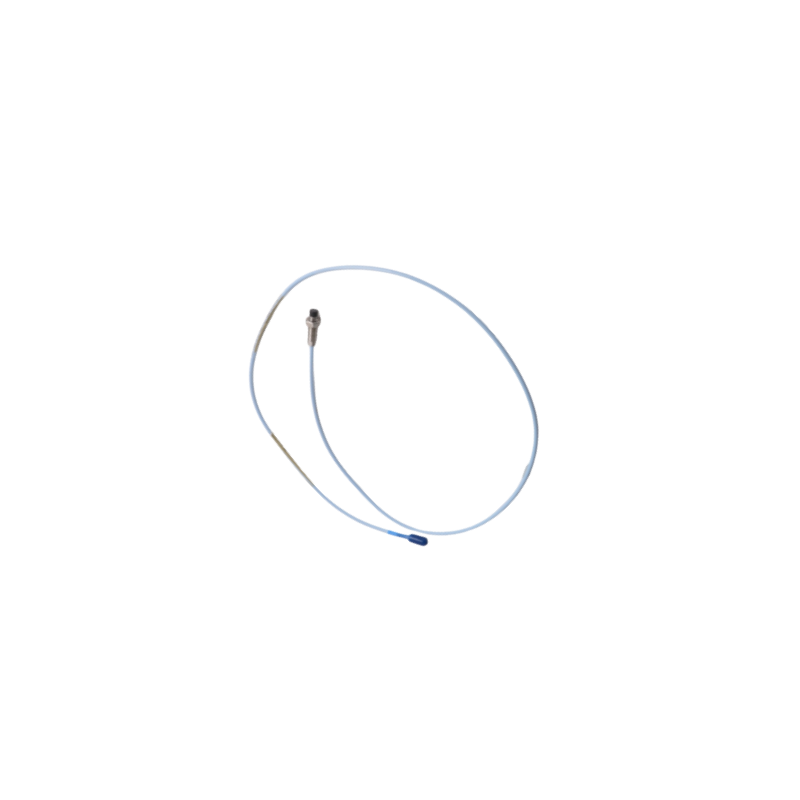

330101-00-12-05-02-02 is the standard model of Bently Nevada (Baker Hughes) 3300 XL 8mm approach eddy current probe, with 3/8-24 UNF thread and 1.2in (30mm) stainless steel housing. It comes with a 0.5m integrated standard cable and ClickLoc™ micro coaxial connector from the factory. The probe measures the shaft vibration, shaft displacement, key phase and rotational speed of rotating machinery in real time online through non-contact eddy current technology. It complies with API 670 version 4 and European CE certification, and can operate stably for a long time in harsh environments ranging from -52 °C to +177 °C.
Technical Specifications
Ø Model: 330101-00-12-05-02-02
Ø Probe diameter: 8mm
Ø Thread: 3/8-24 UNF
Ø With armor: without armor
Ø Measurement stroke: 0.0 inches - 1.2 inches
Ø Cable length: 0.5 meters (1.6 feet)
Ø Interface type: Miniature coaxial ClickLoc connector
Ø cable type: Standard cable
Ø Certifications: CSA, ATEX, IECEx Approvals
Recommended compatible modules and accessories
|
Product advantages |
|
API 670 grade accuracy: Linearity ± 0.5%, resolution 1 µm, meeting the requirements of SIL2/SIL3 protection circuits. |
|
ClickLoc™ Quick-lock connector: 360° self-locking, plug and pull life over 1,000 times, anti-vibration and anti-disengagement, on-site installation time reduced by 50%. |
|
CableLoc™ Tensile design: The tensile force between the cable and the probe body is ≥ 330N, preventing wire breakage due to vibration during operation. |
|
Short-tail 0.5m cable: Suitable for situations where space is limited and probes and preamplifiers are arranged nearby, reducing the number of connectors and fault points. |
|
Full series interchangeability: 100% compatible with 3300 XL 8mm extension cables and preamplifiers, no recalibration required. |
|
High EMI/RFI immunity: Complies with European CE certification and can be installed in a fiberglass chassis without the need for metal shielding conduits. |
Application field
|
Industry |
Equipment |
Measured parameters |
|
General machinery |
Small/medium pumps, fans, compressors |
Radial vibration, thrust position |
|
Test rigs |
Motors, gearboxes, bearing test stands |
Orbit, balance quality |
|
Pulp & paper |
Dryer cans, calender rolls |
Vibration protection, bearing health |
|
Water / wastewater |
Agitators, blowers |
Overload protection, speed |
|
Universities & labs |
Rotor kits, fault-diagnosis demonstrators |
Keyphasor®, critical speed identification |
|
