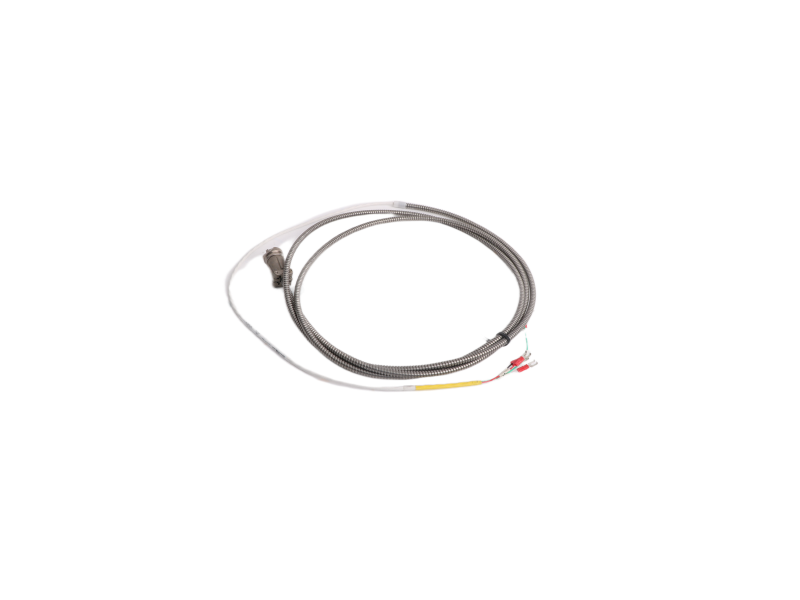

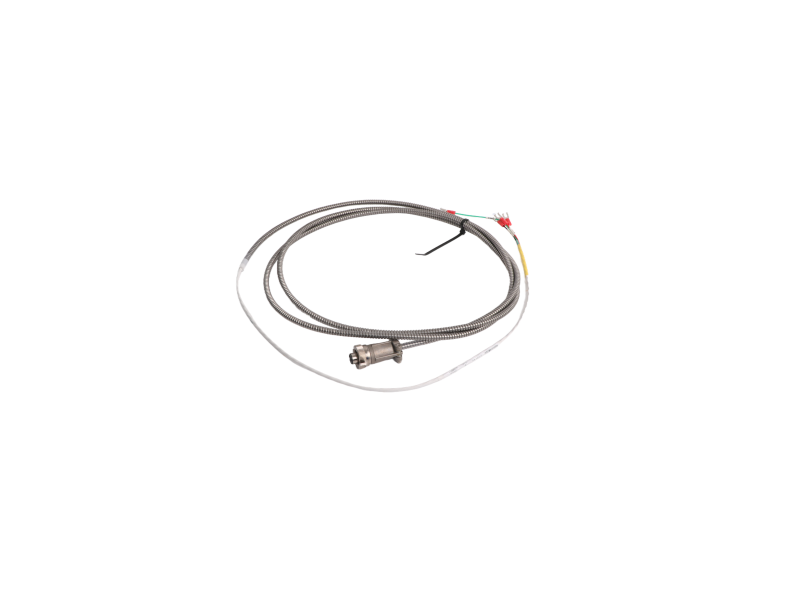

Description:Bently Nevada 16710-10 is a Standard Armored Interconnect Cable for reliable sensor connections.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 16710-10 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
1. Snapshot
The 16710-10 is the 10-conductor, heavy-duty “purple armor” cable that ties triple-vibration or dual-thrust + temperature probes to one 3500/3300 front-end. Stainless interlock + FEP jacket = oil-proof, crush-proof, sunlight-proof for 25 years offshore or onshore.
2. Mechanical Cheat-Sheet
|
Feature |
Value |
Notes |
|
Conductors |
10 × 22 AWG stranded tinned Cu |
5 pair + 1 drain |
|
Armor |
0.28″ OD 304 SS interlocked |
-65 °C … +260 °C |
|
Jacket |
Purple Teflon FEP |
flame-rated IEEE-383, UV-stable |
|
Min. bend |
5 × OD (≈ 1.4 in / 36 mm) |
armored yet field-flexible |
|
Std. lengths |
3 ft – 70 ft (1 m – 21 m) |
cut-to-length in 24 h |
3. Electrical Performance
|
Parameter |
16710-10 |
Notes |
|
Capacitance |
24 pF/ft (79 pF/m) pair-to-pair |
keeps 7.87 mV/µm scale error < 0.3 % |
|
Impedance |
100 ±10 Ω @ 1 MHz |
matches 3300 XL driver |
|
Shield |
foil + 90 % braid |
> 60 dB @ 10 MHz |
|
Working voltage |
300 Vrms |
UL 13 PLTC, oil-res I & II |
4. Typical Wiring Map (one cable, three probes)
|
Pair |
Color |
Function |
|
1 |
Black-White |
X proximity probe |
|
2 |
Red-Green |
Y proximity probe |
|
3 |
Orange-Blue |
Z proximity probe |
|
4 |
Brown-Yellow |
Key-phasor |
|
5 |
Violet-Gray |
RTD or thrust |
5. 30-Second Compatibility Check
✓ 3500/42M, 3500/44M, 3500/45
✓ 3300 XL 5 mm, 8 mm, 11 mm probes
✓ 3300 16 mm HTPS (use 16710-16 reducer)
✗ 7200 14 mm (needs 16925-XX)
6. One-Line Ordering
Sales Manager May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Send: “16710-10 + length + destination” – quote in 15 min.
7. Bottom Line
When you need one cable to carry vibration, thrust and temperature from the bearing to the 3500 rack, the 16710-10 is the purple lifeline. Keep a spare on the shelf—turbines don’t wait for shipping delays.
