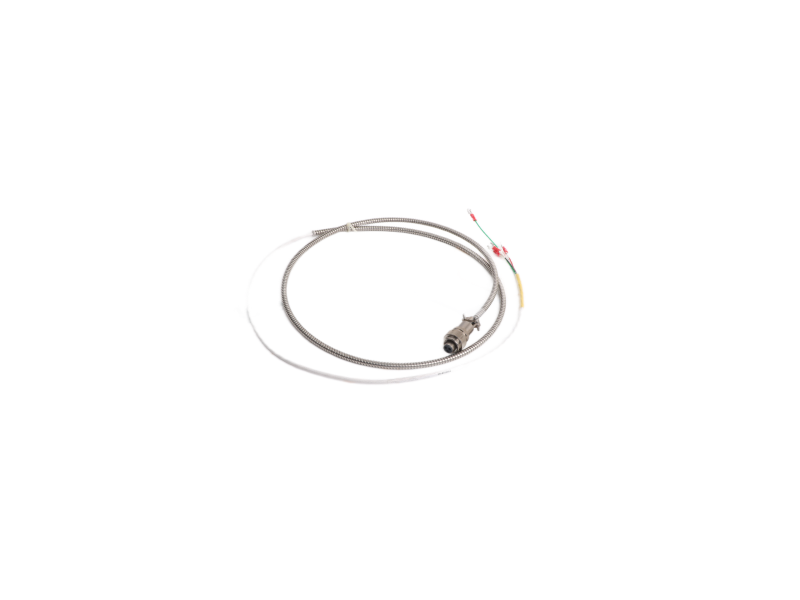

Description:Bently Nevada 16710-07 is a Standard Armored Interconnect Cable for secure sensor connections.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 16710-07 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
1. What it is
The 16710-07 is Bently Nevada’s “classic purple” armored interconnect cable—a 7-conductor, 100 Ω impedance, foil-shielded cordset that links the proximity probe to the 3500/3300 front-end. Oil-proof, abrasion-proof, and field-proven in refineries, FPSOs and power turbines for 25+ years.
2. Mechanical Snapshot
|
Attribute |
Value |
Notes |
|
Conductors |
7 × 22 AWG stranded tinned copper |
3 pair + 1 drain |
|
Armor |
0.25″ OD 304 SS interlocked |
-65 °C … +260 °C |
|
Jacket |
Purple Teflon FEP |
passes IEEE-383 70 kW flame test |
|
Min. bend radius |
5 × OD (≈ 1.25 in) |
armored but flexible |
|
Std. lengths |
3 ft – 70 ft (1 m – 21 m) |
cut-to-length available |
3. Electrical Performance
|
Parameter |
16710-07 |
Typical 2-conduit run |
|
Capacitance |
24 pF/ft (79 pF/m) probe-to-driver |
keeps -24 Vdc scale within 0.5 % |
|
Impedance |
100 ±10 Ω @ 1 MHz |
matches 3300 XL driver |
|
Shield effectiveness |
> 60 dB @ 10 MHz |
foil + 90 % braid |
|
Working voltage |
300 Vrms |
meets UL 13 PLTC |
4. Common Part-Number Matrix
|
Length (ft) |
Factory PN |
Stock status* |
|
5 |
16710-07-A5-B |
same day |
|
10 |
16710-07-A10-B |
same day |
|
25 |
16710-07-A25-B |
3 days |
|
50 |
16710-07-A50-B |
5 days |
5. 60-Second Compatibility Check
✓ 3300 XL 5-/8-mm probes
✓ 3500/42M & 3500/44M monitors
✓ 3300 16-mm HTPS (with 16710-16 adapter)
✗ 7200-series 11-mm (needs 16925-XX)
6. One-Line Ordering
Sales Manager May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Quote template: “16710-07 + length + destination port” – reply in 15 min.
7. Bottom Line
If your vibration rack still runs on 3500 frames, the 16710-07 is the safest, longest-lasting copper path between probe and monitor. Keep a spare on the shelf—turbines don’t wait for cables.
