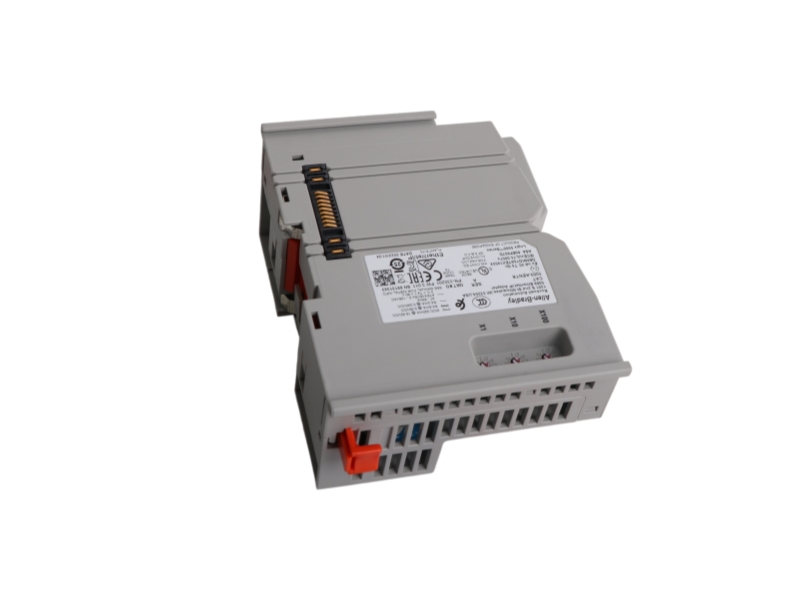

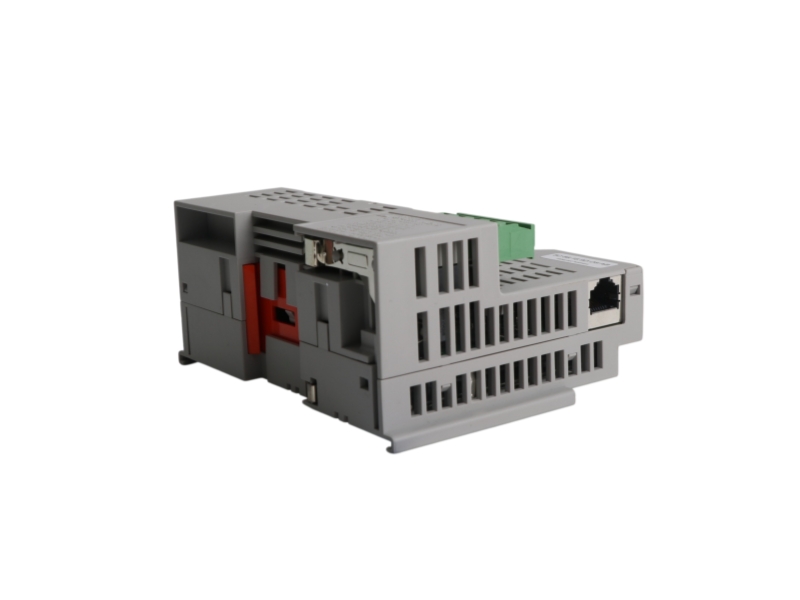

Name: Allen-Bradley 5069-AENTR Compact 5000 EtherNet/IP Adapter
Availability: InStock

Allen-Bradley 5069-AENTR Compact 5000 EtherNet/IP Adapter

ALLEN-BRADLEY · COMPACT 5000 I/O ACTIVE

COMPACT 5000 I/O

5069-AENTR

Allen-Bradley 5069-AENTR is a Compact 5000 EtherNet/IP adapter with separate MOD/SA power and electronic keying.

COMPACT 5000 I/O SLIM ETHERNET/IP

NETWORK ROLE Compact 5000 EtherNet/IP Adapter

IN NODE OUT

STATUS Lifecycle status: Active

Brand New Original One Year Warranty Fast Delivery

REQUEST A QUOTE Inquire Now Send the module label, existing network layout, quantity and destination for a focused review. ab@mooreplc.com ↗

VERIFIED PRODUCT DATA

Product specifications

Core electrical, network, environmental and mechanical data.

EtherNet/IP supportTrue

Industrial Ethernet interfaces1

MOD power220 mA @ 18…32V DC

MOD power passthrough maximum9.78 A @ 18…32V DC

MOD power inrush1750 mA for 70 ms

SA power5 mA @ 0…32V DC; 2 mA @ 0…240V AC

SA power passthrough maximum9.95 A DC; 9.975 A AC

Power dissipation maximum8.5 W

Isolation300V continuous; no isolation

Module keyingElectronic keying via programming software

Operating temperature0…60 °C

Nonoperating temperature-40 °C

Relative humidity5…95% noncondensing

Vibration5 G @ 10…500 Hz

Operating shock30 G

Nonoperating shock50 G

Dimensions56 W × 138 H × 105 D mm

RTB torque0.5…0.6 Nm

Wire size0.25…2.5 mm² (22…14 AWG)

Data transmissionModule rack extension

FUNCTION & APPLICATION

Network integration

How the adapter is used, installed and checked in its intended control architecture.

SYSTEM PATH

PLCADAPTERI/O

Use the product-specific wiring and controller project as the final integration reference.

COMPACT 5000 ROLE

Slim EtherNet/IP adapter

The adapter connects a Compact 5000 I/O assembly to EtherNet/IP and extends the module rack data path.

POWER ARCHITECTURE

MOD and SA power paths

Use the separately listed MOD and SA current values when sizing the adapter, downstream passthrough and external protection.

CONFIGURATION

Electronic keying and RTB selection

Check the project keying, 5069-RTB5 terminal block choice, torque and conductor range before commissioning.

PURCHASING QUESTIONS

FAQ

Clear answers for selection, installation, replacement review and quotation.

What MOD and SA power values must be sized for the Allen-Bradley 5069-AENTR?

Rockwell lists MOD power at 220 mA @ 18…32V DC and SA power at 5 mA DC or 2 mA AC, with separate passthrough limits of 9.78 A MOD and 9.95 A DC or 9.975 A AC SA.

What EtherNet/IP and keying features define the Allen-Bradley 5069-AENTR?

The product page lists EtherNet/IP support, one industrial Ethernet interface and electronic module keying through programming software.

What wiring, temperature and protection conditions apply to the Allen-Bradley 5069-AENTR?

Rockwell lists 0…60 °C operation, 5…95% noncondensing humidity, 0.25…2.5 mm² conductors, 0.5…0.6 Nm RTB torque and recommended external overcurrent protection for MOD and SA power.

What OEM status, lead time and warranty are shown for the Allen-Bradley 5069-AENTR?

Rockwell lists the 5069-AENTR as Active, with a 5-day estimated lead time, 1-year standard warranty and multiple countries of origin depending on manufacturing location.

Can a 1769-AENTR or 1734-AENTR be used as a direct replacement for the Allen-Bradley 5069-AENTR?

No direct equivalence should be assumed. Verify Compact 5000 I/O compatibility, MOD/SA power architecture, terminal blocks, keying, controller project and firmware before substitution.

Which manuals and configuration resources should accompany an Allen-Bradley 5069-AENTR quotation?

Rockwell lists ENET-UM004, 5069-TD001, EDS files and AOP/firmware resources. Provide the product label, series, terminal-block choice, quantity and destination for a precise quotation.
