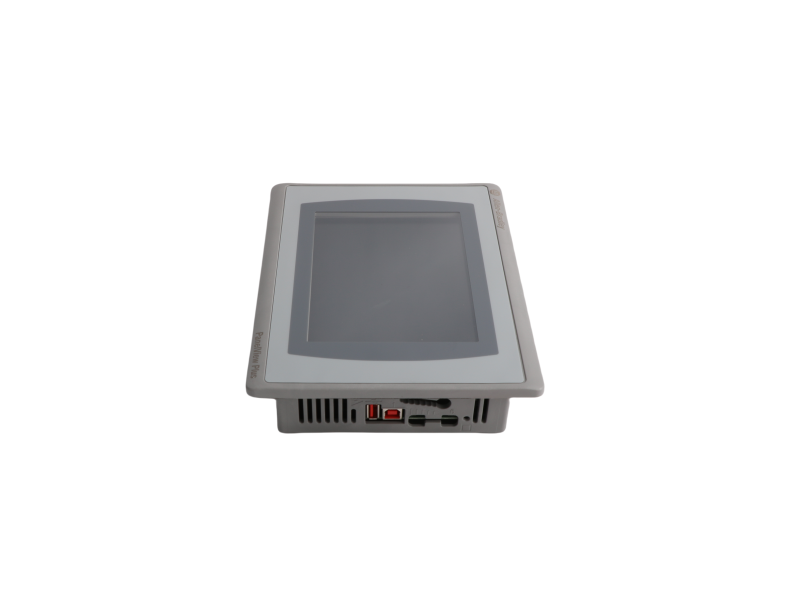

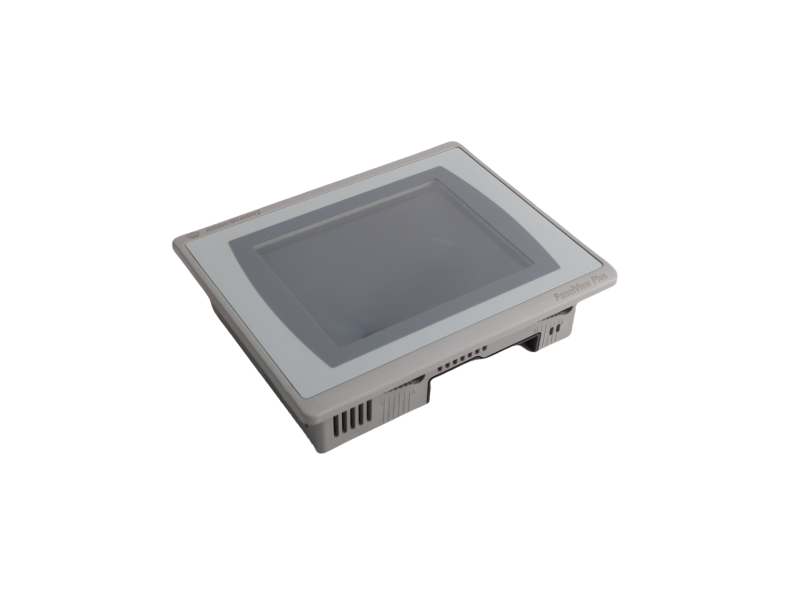

Description:2711P-T7C21D8S PanelView Plus 7 Standard Terminal
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 2711P-T7C21D8S |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of HMI Excellence
Technical Brief: Allen-Bradley 2711P-T7C21D8S PanelView Plus 7 Standard Terminal
Product Overview
The 2711P-T7C21D8S is a flush-mount, 6.5-inch color-touch HMI from the PanelView Plus 7 Standard family.
It delivers real-time visualization and operator control for Allen-Bradley CompactLogix™, ControlLogix™, and GuardLogix™ systems in discrete, process, and safety applications.
Key Specifications
• Display: 6.5ʺ TFT, 640 × 480 VGA, 18-bit color, 4:3 aspect
• Touch: Analog resistive, 1 million actuations @ 100 g force
• Processor: 800 MHz ARM Cortex-A8
• Memory: 512 MB RAM, 512 MB flash, 80 MB user storage
• Real-Time Clock: Battery-backed, ±2 min/month accuracy, 4-year life @ 25 °C
• Operating System: Windows CE 6.0 with FTP, VNC, PDF viewer, ActiveX
Communications & Expansion
• Ethernet: 1× 10/100 Base-TX port for EtherNet/IP, Modbus TCP, OPC UA client
• USB: 1× USB 2.0 host (Type A) + 1× USB device (Type B)
• SD-Card Slot: standard SDHC up to 32 GB for recipes, logs, firmware
• Remote Access: VNC server, free FactoryTalk® View ME runtime project downloads
Installation & Mechanical
• Panel Cut-out: 142 × 184 mm (5.59 × 7.24 in.)
• Bezel Dimensions: 170 × 212 × 56.5 mm (6.69 × 8.35 × 2.22 in.)
• Weight: 0.85 kg (1.86 lb)
Ordering & Companion Hardware
|
Part Number |
Description |
|
2711P-T7C21D8S |
PanelView Plus 7 Standard 6.5ʺ touch, DC, single Ethernet |
|
2711P-RGT7 |
Protective gasket kit for 6.5ʺ cut-out |
|
2711P-RSACDIN |
24 V dc, 2.5 A DIN-rail power supply |
|
2711P-RN20 |
Ethernet switch module (4-port unmanaged) |
|
2711P-RW7 |
Replacement stylus kit (10 pcs) |
|
2711P-RR128 |
128 MB SD card pre-loaded with FactoryTalk View ME runtime |
All items are factory-sealed and supported by PLC Autocontroller for same-day quotation and overnight delivery.
Ordering & Stock
PLC Autocontroller keeps the 2711P-T7C21D8S in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
