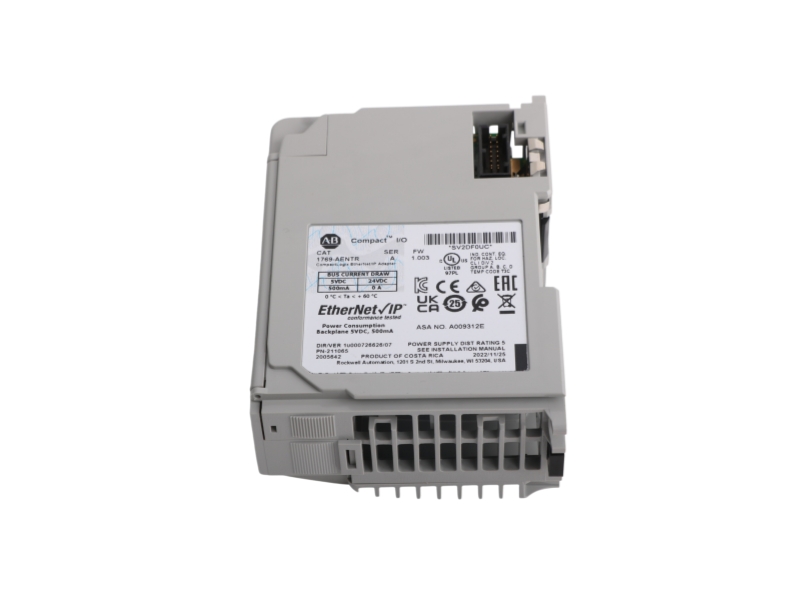

Allen-Bradley 1769-AENTR 1769 Ethernet/IP Adapter

ALLEN-BRADLEY · COMPACT I/O ACTIVE MATURE
COMPACT I/O / ETHERNET/IP

1769-AENTR

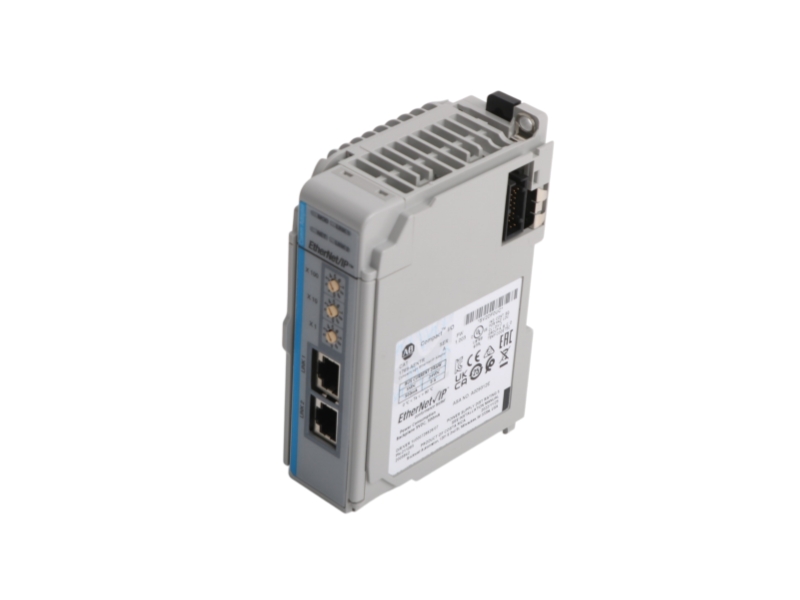

Allen-Bradley 1769-AENTR is a CompactLogix EtherNet/IP adapter with dual RJ45 ports.

COMPACT I/O DUAL PORT ADAPTER
NETWORK ROLE CompactLogix EtherNet/IP Adapter
IN NODE OUT
STATUS Lifecycle status: Active Mature
Brand New Original One Year Warranty Fast Delivery
REQUEST A QUOTE Inquire Now Send the module label, existing network layout, quantity and destination for a focused review. ab@mooreplc.com ↗
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Allen-Bradley
Item number 1769-AENTR
Country of Origin United States of America
Lead Time 2-3 Days
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
VERIFIED PRODUCT DATA

Product specifications

Core electrical, network, environmental and mechanical data.

EtherNet/IP supportTrue
TCP/IP supportTrue
EtherNet/IP communication rate10/100 Mbps
Logix communication connections128
TCP/IP communication connections96
Ethernet interfaces2 industrial Ethernet interfaces
Ports2 Ethernet RJ45 Category 5
Current draw500 mA @ 5.2V DC
Isolation50V continuous, basic
Operating temperature0…60 °C
Nonoperating temperature-40…85 °C
Relative humidity5…95% noncondensing
Operating shock15 G
Vibration2 G @ 10…500 Hz
Dimensions50 W × 118 H × 87 D mm
Approximate weight0.28 kg
MountingDIN rail or panel mount
Wire category1 - on communication ports
02
FUNCTION & APPLICATION

Network integration

How the adapter is used, installed and checked in its intended control architecture.

SYSTEM PATH
PLCADAPTERI/O
Use the product-specific wiring and controller project as the final integration reference.
COMPACTLOGIX LINK

EtherNet/IP bridge to 1769 I/O

The adapter places 1769 I/O data on an EtherNet/IP network for a CompactLogix control architecture.

NETWORK CAPACITY

Two RJ45 ports with Logix connections

Rockwell lists 128 Logix communication connections and 96 TCP/IP communication connections for the module.

MOUNTING & CABLING

DIN rail or panel installation

Use the listed RJ45 Category 5 or 5e cabling and verify the 0…60 °C operating environment before installation.

03
PURCHASING QUESTIONS

FAQ

Clear answers for selection, installation, replacement review and quotation.

01

How many Logix and TCP/IP connections are listed for the Allen-Bradley 1769-AENTR?

Rockwell lists 128 Logix communication connections and 96 TCP/IP communication connections for the 1769-AENTR.

02

What Ethernet cabling and ports are specified for the Allen-Bradley 1769-AENTR?

The product page lists two Ethernet RJ45 Category 5 ports and recommends Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702.

03

Where can the Allen-Bradley 1769-AENTR be mounted and what environment limits apply?

Rockwell lists DIN rail or panel mounting, 0…60 °C operating temperature, -40…85 °C nonoperating temperature and 5…95% noncondensing relative humidity.

04

Is the Allen-Bradley 1769-AENTR shown with an OEM lifecycle status and lead time?

Rockwell lists the product as Active, with a 5-day estimated lead time, a 1-year standard warranty and United States of America as the country of origin.

05

Can a 5069-AENTR or 1734-AENTR replace an Allen-Bradley 1769-AENTR without checking the project?

No. The product families, port and I/O architecture differ. Confirm the controller project, 1769 chassis or adapter arrangement, connections, firmware and wiring before accepting a substitute.

06

What Rockwell documents and label details support an Allen-Bradley 1769-AENTR quotation?

Rockwell lists the 1769-SG001 selection guide, 1769-TD005 technical data, EDS files and firmware resources. Include the series, label photo, quantity and destination for an exact quotation.
