Siemens 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Analog Output Module
Siemens 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Analog Output Module
Siemens 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Analog Output Module

Siemens 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Analog Output Module

SIEMENS · SIMATIC S7-1500AQ 4xU/I ST · ACTIVE PRODUCT
ANALOG OUTPUT MODULE

6ES7532-5HD00-0AB0

SIMATIC S7-1500 AQ 4xU/I ST

Four-channel 16-bit analog output module for precise voltage and current control in S7-1500 and ET 200MP automation systems.

4 CHANNELS16-BIT RESOLUTION2–3 DAYS
REQUEST A QUOTEInquire NowShare the output range, load type, quantity and destination for a focused review.ab@mooreplc.com ↗
Brand New Original
One Year Warranty
Fast Delivery
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6ES7532-5HD00-0AB0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 / TECHNICAL PROFILE

Output architecture & electrical limits

Verified Siemens values for signal selection, loading, timing, isolation and installation.
Module typeAQ 4xU/I ST
Product familySM 532 analog output modules
Output channels4
Output signalVoltage and current
Voltage ranges0–10 V; 1–5 V; ±10 V
Current ranges0–20 mA; 4–20 mA; ±20 mA
Resolution16 bit
Basic error limit at 25 °C±0.2 %
Practical full-range error±0.3 %
Cycle timeMinimum 3.2 ms for all channels
Conversion time0.5 ms per channel
Voltage load resistanceMinimum 1 kΩ; 0.5 kΩ for 1–5 V
Current load resistanceMaximum 750 Ω
Shielded cable lengthMaximum 800 m current; 200 m voltage
Rated supply voltage24 V DC
Permitted supply range20.4–28.8 V DC
Maximum input current190 mA at 24 V DC
Backplane power0.6 W
Typical power loss4 W
Diagnostic functionsSupply, wire break, short circuit, over/under range
IsolationBetween groups of four; isolated from backplane and L+
Module dimensions35 × 147 × 129 mm
Approximate module weight310 g
Packaging dimensions19.3 × 16.1 × 5.00 cm
02 / FUNCTION & APPLICATION

Control signals for distributed automation

A practical view of how the module is engineered and used.

What the module does

The module converts S7-1500 process values into four configurable analog outputs. Engineers can choose voltage or current ranges per channel to drive valves, actuators, speed references and other continuous-control devices.

STEP 7 / TIA Portal engineering supports parameterization, diagnostics and reparameterization in RUN. Group isolation, substitute values and channel diagnostics help keep commissioning and maintenance predictable.

Signal flexibility
Voltage and current ranges in one module.
Fast response
0.5 ms conversion per channel.
Serviceability
Wire-break, short-circuit and range diagnostics.
System fit
Designed for S7-1500 / ET 200MP racks.

Selection notes

Check actuator load resistance, cable length, reference wiring and the chosen output range before downloading the hardware configuration.

Use the Siemens manual when selecting two-wire or four-wire voltage wiring, current-loop wiring or a substitute value for CPU STOP behavior.

Signal setupAssign the required voltage or current range per channel in STEP 7 / TIA Portal.
Load matchConfirm actuator resistance and cable length before commissioning.
STOP behaviorVerify substitute values and diagnostics for the intended CPU STOP response.
03 / FAQ

Questions before ordering 6ES7532-5HD00-0AB0

Clear answers for engineering review, replacement planning and quotation.
Which signal ranges can 6ES7532-5HD00-0AB0 output?

6ES7532-5HD00-0AB0 supports 0–10 V, 1–5 V and ±10 V voltage ranges plus 0–20 mA, 4–20 mA and ±20 mA current ranges.

How should 6ES7532-5HD00-0AB0 be wired to voltage and current actuators?

Use the Siemens-defined two-wire or four-wire voltage connection for voltage loads and the two-wire connection for current loads; keep shield and reference wiring within the manual limits.

Which engineering environment is compatible with 6ES7532-5HD00-0AB0?

The module is engineered in STEP 7 / TIA Portal from V12.0 and is intended for the S7-1500 and ET 200MP system environment.

Is 6ES7532-5HD00-0AB0 an active Siemens product and what lead time should be quoted?

Siemens lists 6ES7532-5HD00-0AB0 as an Active Product. The quotation lead time for this listing is 2–3 DAYS, subject to order confirmation.

Can another S7-1500 analog output module replace 6ES7532-5HD00-0AB0 directly?

Do not assume a direct replacement. Confirm channel count, signal ranges, wiring, load resistance, firmware and TIA Portal configuration before approving any alternative.

Which documentation and details should accompany an inquiry for 6ES7532-5HD00-0AB0?

Request the Siemens AQ 4xU/I ST manual and provide the required output range, load type, quantity, destination and delivery preference so the quotation can be checked accurately.

04 / PROFESSIONAL TEAM

Professional Team

Practical product judgment from identification through delivery.
Apter Power professional support team in the office
Apter Power engineers reviewing automation products
Nearly 10 Years of Industry Experience

Our team members have an average of more than 10 years of industry experience. We have worked with customers worldwide, including those from India, Germany, Sweden, Italy, Russia, Venezuela, Israel, and many other countries. Throughout our careers, we have collectively completed over 3,000 orders and established long-term business relationships with customers across nearly 30 countries.

TEAM PROFILE
10+ yearsaverage experienceNearly 30long-term customers3,000+completed orders
Professional Product Judgment

We can often identify a product’s manufacturer, series, configuration, and function from its model number or nameplate photo. We also understand how revisions, firmware, and specifications affect compatibility and whether an alternative model can be used safely.

In Practice: An Indian customer urgently needed a discontinued control module after several suppliers reported no stock. We identified its exact revision and function from the nameplate, checked compatible alternatives, and contacted factory and warehouse channels to locate matching inventory.

Sincere and Patient Service

Our team treats every inquiry sincerely and answers every question patiently. Even for complex requests, we verify and respond to each detail instead of providing a rushed or uncertain answer.

In Practice: A German customer sent a mixed list of automation products and asked repeated questions about revisions, condition, photos, and delivery. Our team organized the requirements, checked every item, and replied point by point.

05 / WHY CHOOSE US

Why choose us

Service commitments that make sourcing easier for international engineering teams.
One-stop sourcing

Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.

Quality checked

The highest quality product. Each item undergoes rigorous testing before delivery.

Warranty confidence

Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense.

Responsive sales

Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.

Fast dispatch

Quickly deliver all products within 1–3 days after placing an order through DHL's fastest service.

Safer packaging

Good packaging ensures transportation safety and greatly saves transportation costs.

06 / SPECIALIST REFERENCES

More specialist automation models

A mixed reference list for broader automation sourcing.
0197702345
02XL50
0306-118262-001
04Alnor
050768458
06EXP-2200
07RGBHV
08PL-1381-11-V
0916R-L
10SO816N.A001
11SL0105
12839-001
13S903
14BIP-5000
15KJ2003X1-BA2
167101063006W
17PSM0004
18WIQ82650
19GS-CO-S
20S904
21ADAM-5000/TCP
223700005
23Mid2E-800
24CI502/1SAP220700R0001
2551-41-RX1
26SLG23CEEAK0A
27600
28ST-CE1075-2-U100-B
29XFL824A
30800
311230/stb
32OK34A
337KG2109-2ZZ13-9B
34RDK9
35GPRS
369559-583-117
3751153884-201
38CS121SCM
3951405038-175

Related Products

Siemens 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Analog Output Module
Siemens 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Analog Output Module

SIEMENS · SIMATIC S7-1500AQ 4xU/I ST · ACTIVE PRODUCT ANALOG OUTPUT MODULE 6ES7532-5HD00-0AB0 SIMATIC S7-1500 AQ 4xU/I ST Four-channel 16-bit analog output module for precise voltage and current control in S7-1500 and ET 200MP automation systems. 4 CHANNELS16-BIT RESOLUTION2–3 DAYS REQUEST A QUOTEInquire NowShare the output range, load type, quantity and destination for a focused review.ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery

Details

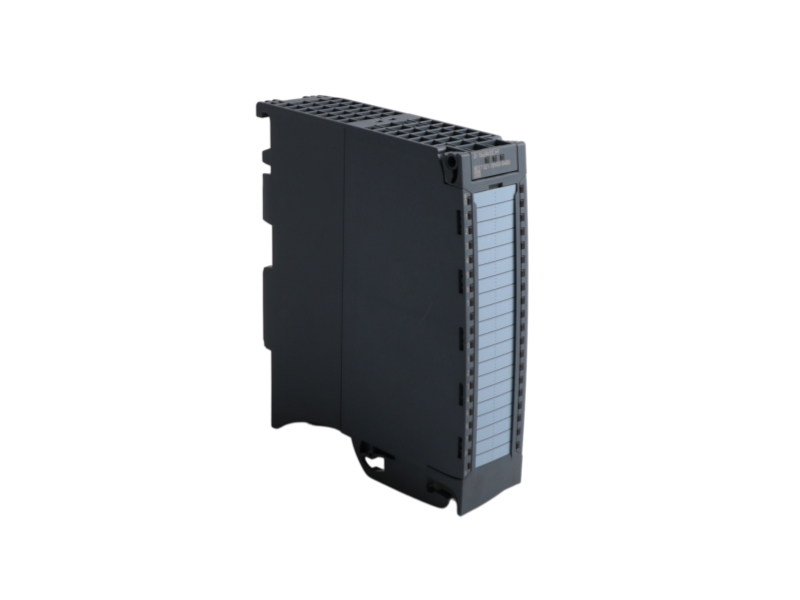

Siemens 6ES7521-1BH00-0AB0 SIMATIC S7-1500 SM 521
Siemens 6ES7521-1BH00-0AB0 SIMATIC S7-1500 SM 521

SIEMENSSIMATIC S7-1500 SM 521 6ES7521-1BH00-0AB0 DIGITAL INPUT MODULE 6ES7521-1BH00-0AB0 Siemens 6ES7521-1BH00-0AB0 is an SM 521 high-feature digital input module for fast 24 V DC signal acquisition in SIMATIC S7-1500 systems. 16 DI2 counters0.05 ms SYSTEM FITHIGH-SPEED DIGITAL INPUT CHANNELS16 DI COUNTERS2 counters ORDER CHECKS7-1500 digital input acquisition Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Details

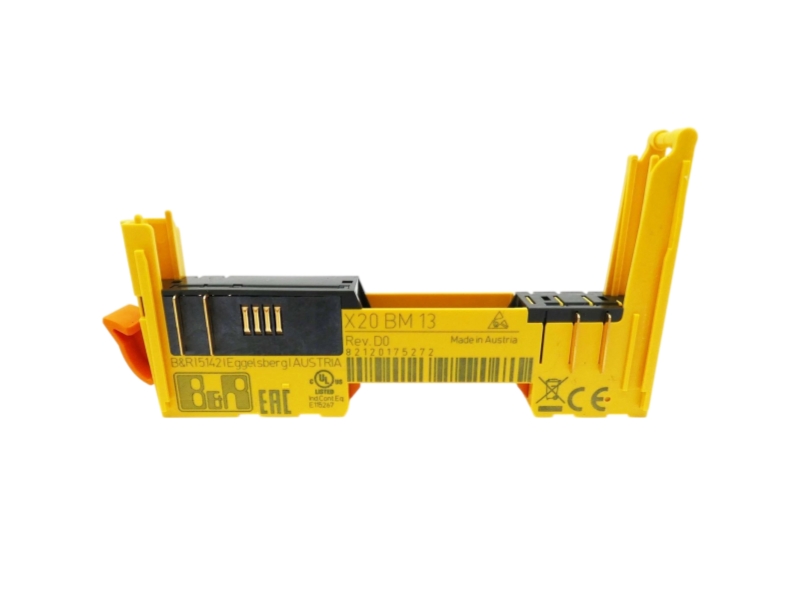

B&R X20BM13 X20 bus module
B&R X20BM13 X20 bus module

B&RX20 BUS MODULE X20BM13 X20 BUS MODULE X20BM13 B&R X20BM13 is a single-width X20 bus module used to build X20 SafeIO segments and distribute the internal I/O supply. 24 V DC10 A contactIP20 SYSTEM FITSAFEIO BUS COUPLING SUPPLY24 V DC CONTACT10 A contact ORDER CHECKX20 SafeIO bus architecture Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Details

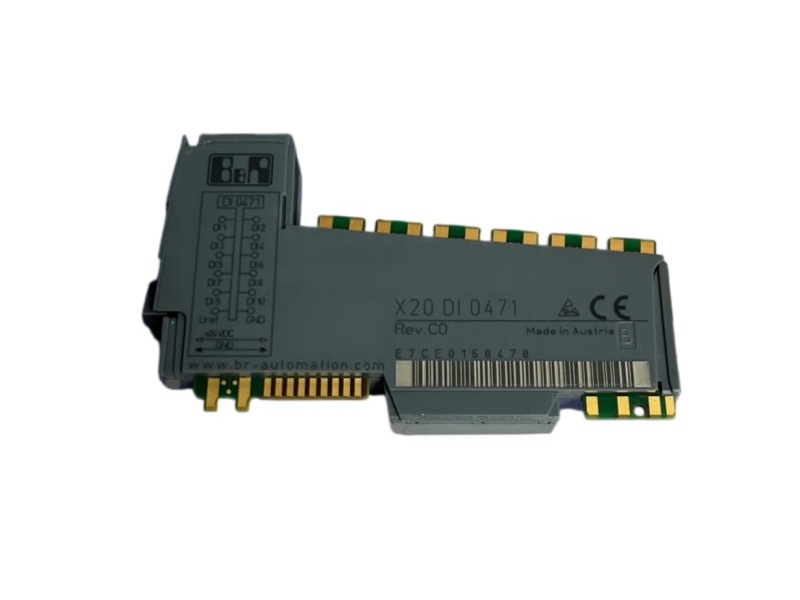

B&R X20DI0471 X20 digital input module
B&R X20DI0471 X20 digital input module

B&RX20 X20DI0471 DIGITAL INPUT MODULE X20DI0471 B&R X20DI0471 is a 10-channel digital input module for 5–48 V DC sink signals, configurable filtering and modular X20 stations. 10 INPUTS5–48 V DCSINK TYPE SYSTEM FITModular X20 sensing CHANNELS10 DI INPUT RANGE5–48 V ORDER CHECKX20 input slice Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Details

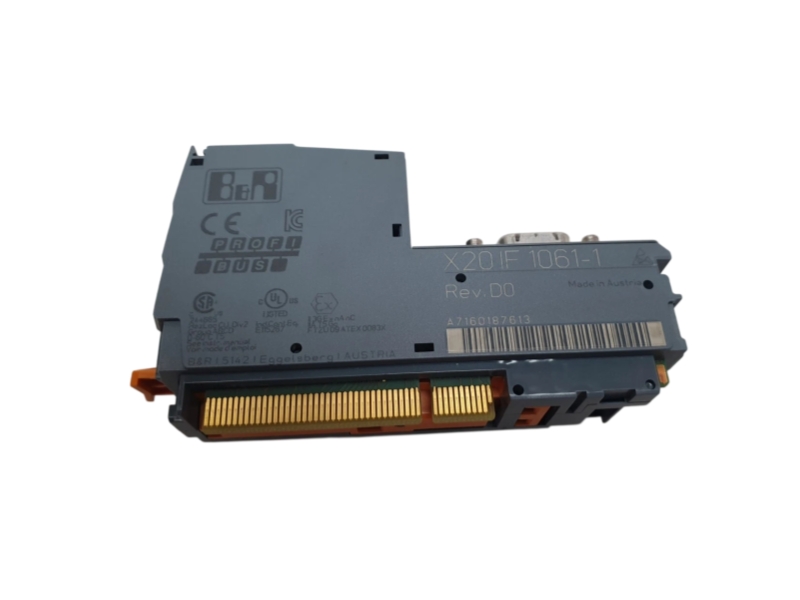

B&R X20IF1061-1 X20 PROFIBUS DP interface module
B&R X20IF1061-1 X20 PROFIBUS DP interface module

B&RX20 X20IF1061-1 PROFIBUS DP INTERFACE X20IF1061-1 B&R X20IF1061-1 is an X20 interface module with one PROFIBUS DP channel and DTM configuration support for modular automation systems. 1 DP CHANNELDTM CONFIGX20 NETWORK LINKPROFIBUS DP integration NETWORKPROFIBUS DP CONFIGURATIONDTM ORDER CHECKDistributed I/O network Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Details

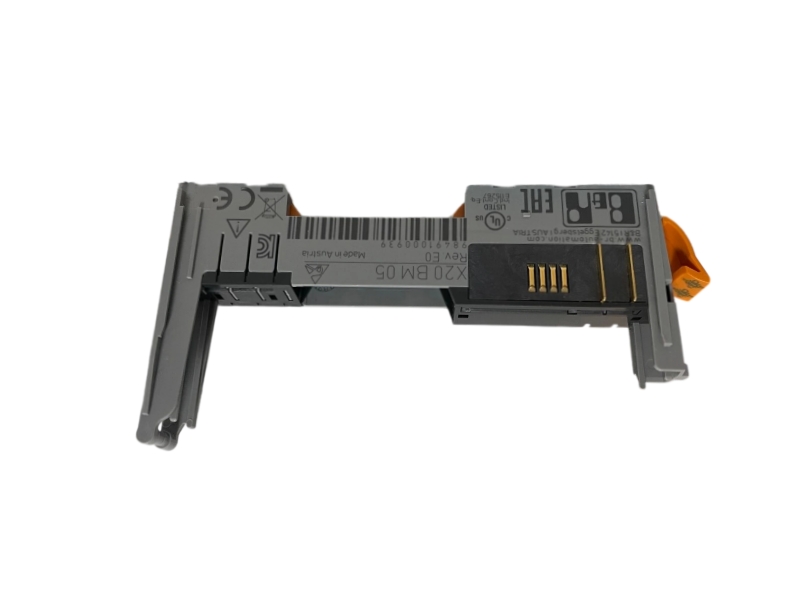

B&R X20BM05 X20 Power Supply Bus Module
B&R X20BM05 X20 Power Supply Bus Module

B&R · X20ACTIVE PRODUCT POWER SUPPLY BUS MODULE X20BM05 X20 Power Supply Bus Module Keyed 24 VDC X20 bus module with node-number switch and controlled interruption of the internal I/O supply. 24 VDC10 A CONTACTIP20 REQUEST A QUOTEInquire NowShare the X20 station layout, supply segmentation, quantity and destination for a focused review.ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery

Details

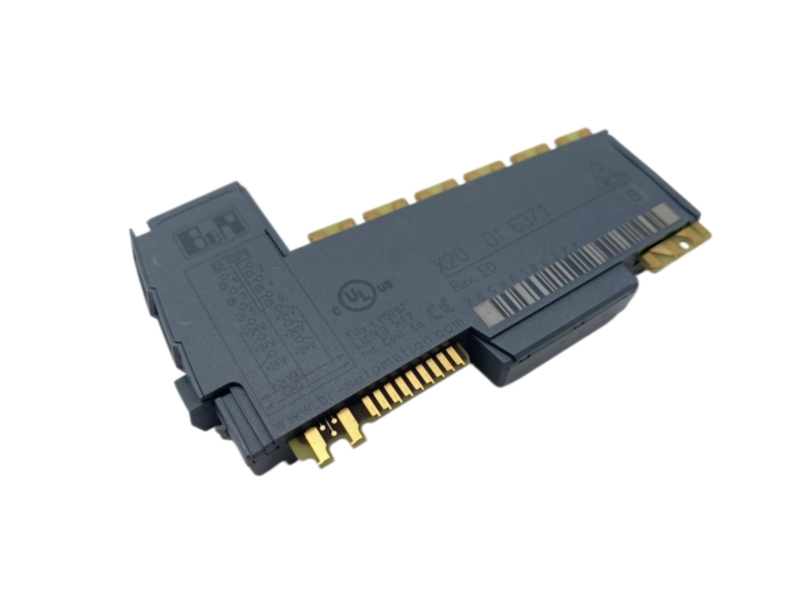

B&R X20DI6371 X20 Digital Input Module
B&R X20DI6371 X20 Digital Input Module

B&R · X20ACTIVE PRODUCT DIGITAL INPUT MODULE X20DI6371 X20 Digital Input Module Six-channel 24 VDC X20 input module with Type 1 thresholds and configurable filtering for distributed automation. 6 INPUTS24 VDCTYPE 1 REQUEST A QUOTEInquire NowShare the sensor wiring, filter setting, terminal block, quantity and destination for a focused review.ab@mooreplc.com ↗ Brand New Original One Year Warranty Fast Delivery

Details

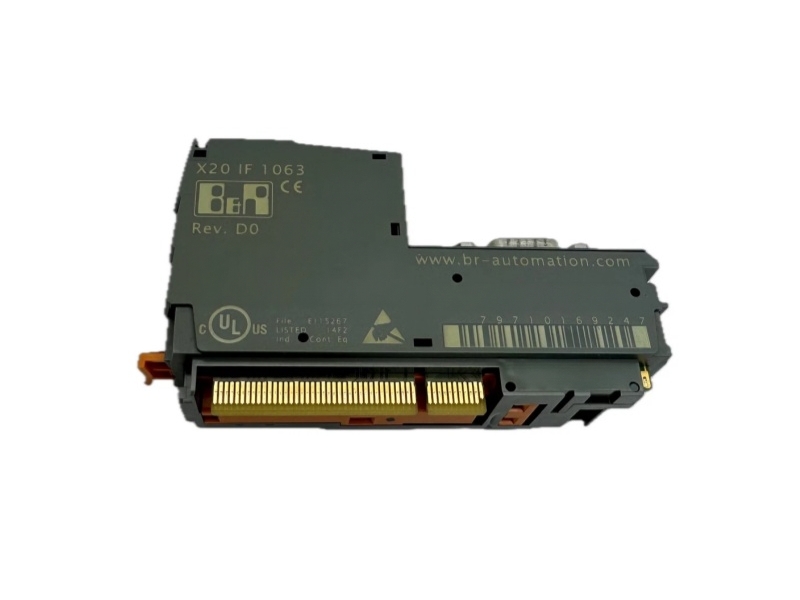

B&R X20IF1063 X20 PROFIBUS DP Interface Module
